1. General information / 2. Short overview
The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. A copy of the
license texts is included in the packaging of this product. You may obtain the complete Corresponding Source code from
us for a period of three years after our last shipment of this product and/or spare parts therefor, which will be no earlier than
01/01/2030, for a fee of 10 €. Please use our contact form at CTServiceteam@wika.com and write „Corresponding Source for
CPH7000" in the memo line. This offer is valid to anyone in receipt of this information.
WARNING!
Installing modified versions of open source software components on the product will result in the loss of warranty.
Also support service and software updates will be refused.
Make sure to follow the safety precautions in the operating instructions. Improper access to the instrument is likely
to result in its damaging.

2. Short overview

2.1

Overview

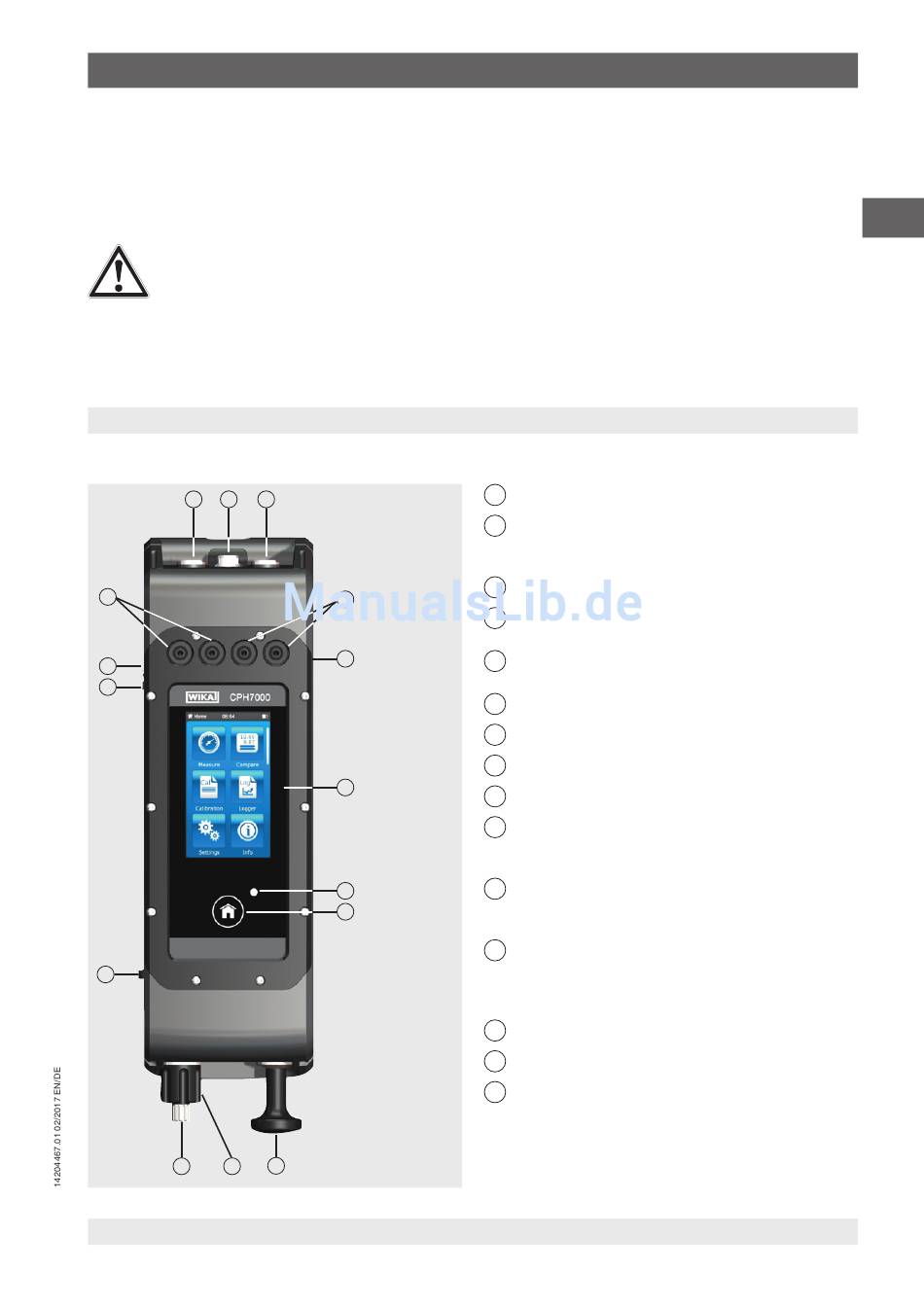

1 2 3
15
14
13
12
11 10
WIKA operating instructions portable process calibrator, model CPH7000
4
5
6
7
8
9
External pressure sensor - channel 1 (only CPT7000)
1
Internal sensor for test item
2
(optional, available only in conjunction with the
mechanical hand pump)
External pressure sensor - channel 2 (only CPT7000)
3
Sockets for 4 mm plugs for measuring and simulating
4
current (DC)
Connection for atmospheric module or temperature
5
probe Pt100
Display
6
LED charging indicator
7
Home button
8
Mechanical hand pump (option)
9
Fine adjustment valve
10
(optional, available only in conjunction with the
mechanical hand pump)
Vent valve
11
(optional, available only in conjunction with the
mechanical hand pump)
Switch
12
To switch between pressure build-up or vacuum
(optional, available only in conjunction with the
mechanical hand pump)
Connection for power supply unit
13
ON/OFF key
14
Sockets for 4 mm plugs for measuring and simulating
15
voltages (DC)
EN
