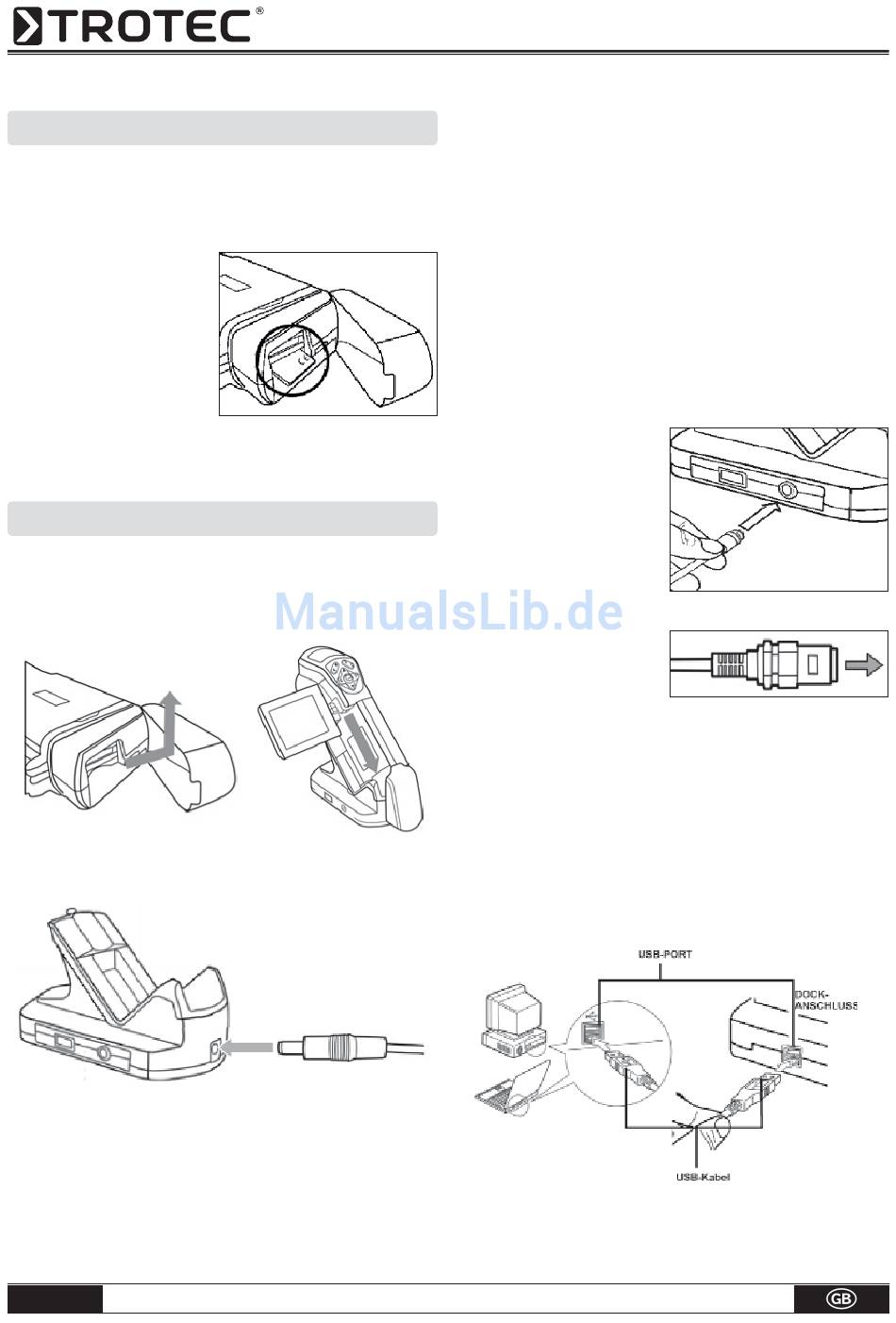

07. DOWNLOAD IMAGES
Download the images via SD card
You can get the SD card out of camera, and download the
images to the computer via the supplied SD card reader.
1 . Open the battery / SD
card cover and press
the SD card lightly, then
the SD card will pop-up
automatic.
2 . You can download the IR images directly from SD
card or via SD card reader.
08. CONNECTION AND DOWNLOAD

Charging via the dock

The rechargeable battery can also be recharged via the
docking station using an optionally available adapter.
1. Attach power adaptor to the power terminal on the
multi-functional dock.
2 . Attach the power cord to the battery charger and plug
the other end into a power outlet.
3 . The power LED of camera fl ickers while the battery
pack is charging and lights green when charging is
complete. After charging, unplug the power adaptor.
B - 19
The best way to recharge the battery is to use the char-
ging station included in the scope of delivery.
The
red by the mains using the docking station.
This is an extremely useful feature when used in conti-
nuous operation.

Connecting to a monitor

A video-compatible monitor connected via the video
cable (supplied) can be used to view and analyze images
you shoot.
1. Turn off the IR camera.
2. Attach video cable to
the video out terminal
on the multi-functional
dock.
3. Plug the other end of
the video cable to the
video in jack on the
monitor.
4. Turn on the monitor
and the IR camera.

Connecting to a computer

Connect the USB cable (supplied) to the computer's USB
port and the multi-functional dock's terminal.
You do not need to turn off the computer or camera when
making this connection.
Please refer to your computer manual for information re-
garding the location of the USB port.
Operating manual – Infrared camera
IR camera can also be powe-
