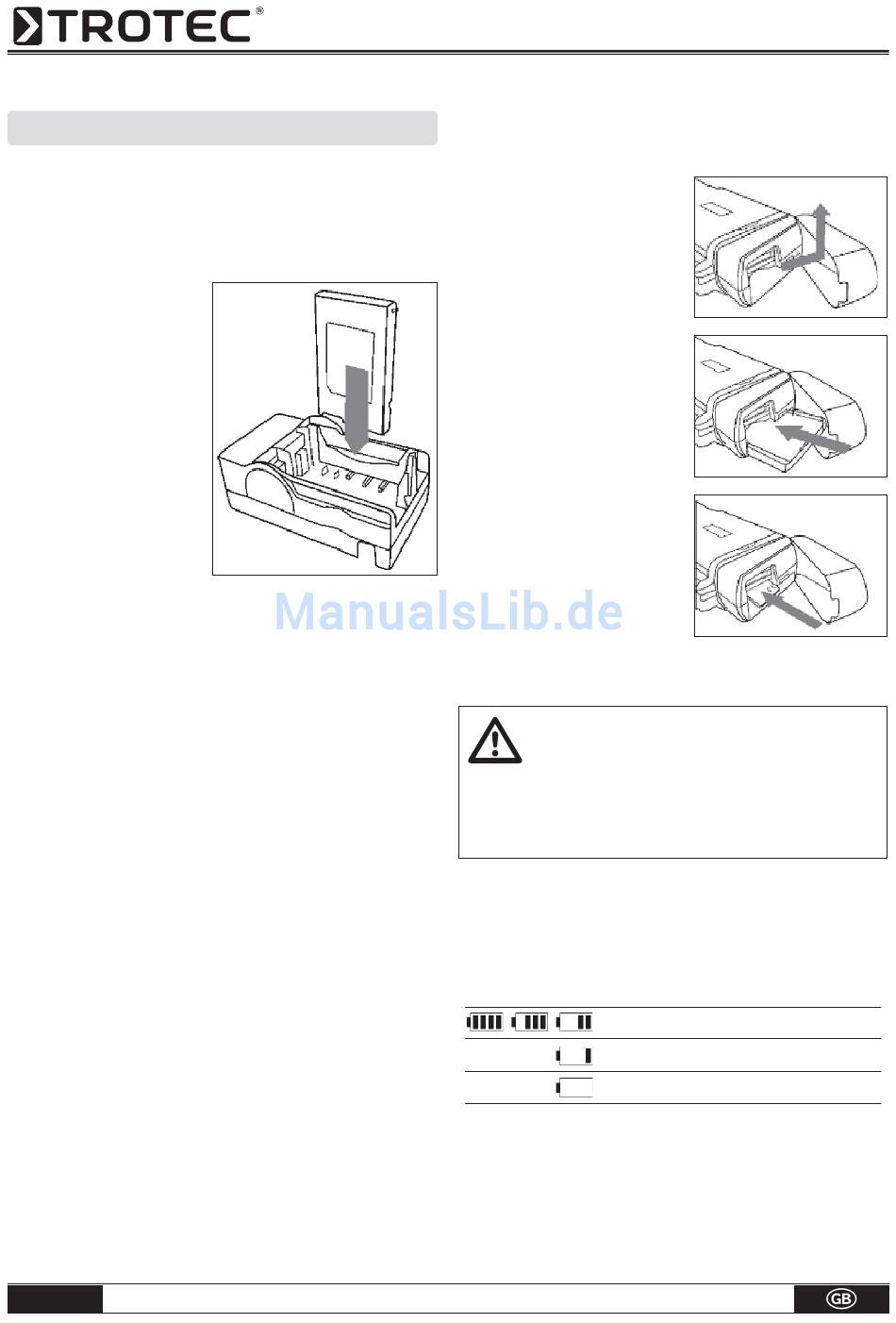

03. PREPARING THE IR CAMERA

Charging the Battery Pack

Use the following procedures to charge the battery
pack for the fi rst time and subsequently when the low
battery icon appears on the Display Panel.
1. Align the edge of the
battery pack with the
line on the battery,
then insert the battery
in the direction of the
arrow.
2. Attach the power
cord to the battery
charger and plug the
other end into a po-
wer outlet.
• The charge indicator lights red while the battery
pack is charging and lights green when charging is
complete.
• After charging, unplug the battery charger and
remove the battery pack.
• Der Akku ist eine Li-Ion Batterie und muss daher
nicht völlig entladen werden bevor sie wieder auf-
geladen werden kann.
This is a lithium ion battery pack so there is no need
to complete use or discharge it before recharging. It
can be recharged at any time. However, since the
maximum number of charge cycle is approximately
300 (battery life), you are recommended to only charge
the battery pack after having discharge it completely
to prolong battery life.
Charging times will vary according to the surrounding
humidity and battery pack charge state.
B - 5

Installing the Battery Pack / SD Card

Install Battery Pack into the camera as follows:
1. Check that the power is off
and slide the battery cover
in the direction of the arrow.
2. Insert the battery in the
direction of the arrow.
3. Insert the SD card in the
direction of the arrow.
Battery Status Symbols
The following icons indicate the battery status on the
LCD display.
Operating manual – Infrared camera
Remove the battery pack when the camera
is not in use.
The SD Card must be formatted in
FAT32. Otherwise, the IR camera may not
recognize the memory.
Suffi cient battery change
Low battery
Replace or recharge battery
