About the analysis parameters:
Emiss
Different object has different emissivity. Use different
emissivity to measure different object.
Distance
Different object has different distance to the IR came-
ra. Use different distance to measure different object.
Amb Temp
Input ambient temperature.
Humidity
Input ambient humidity.
Obj Comparison
COMPAROBJ1 can be
set to denote either a
measuring spot or an
area. COMPAROBJ2 can
be set to denote either a
reference temperature,
a measuring spot or an
area.. The difference
between the temperatures measured with 1 and 2 is
displayed in the bottom right-hand corner of the LCD,
e.g. COMPAROB is SPOT1 (35.4°C) and COMPAROBJ
2 is REF TEMP (30°C), then the difference between
the 2 values is 5.4°C.
Ref Temp
Acts as a means of comparison with a spot, area or
profi le

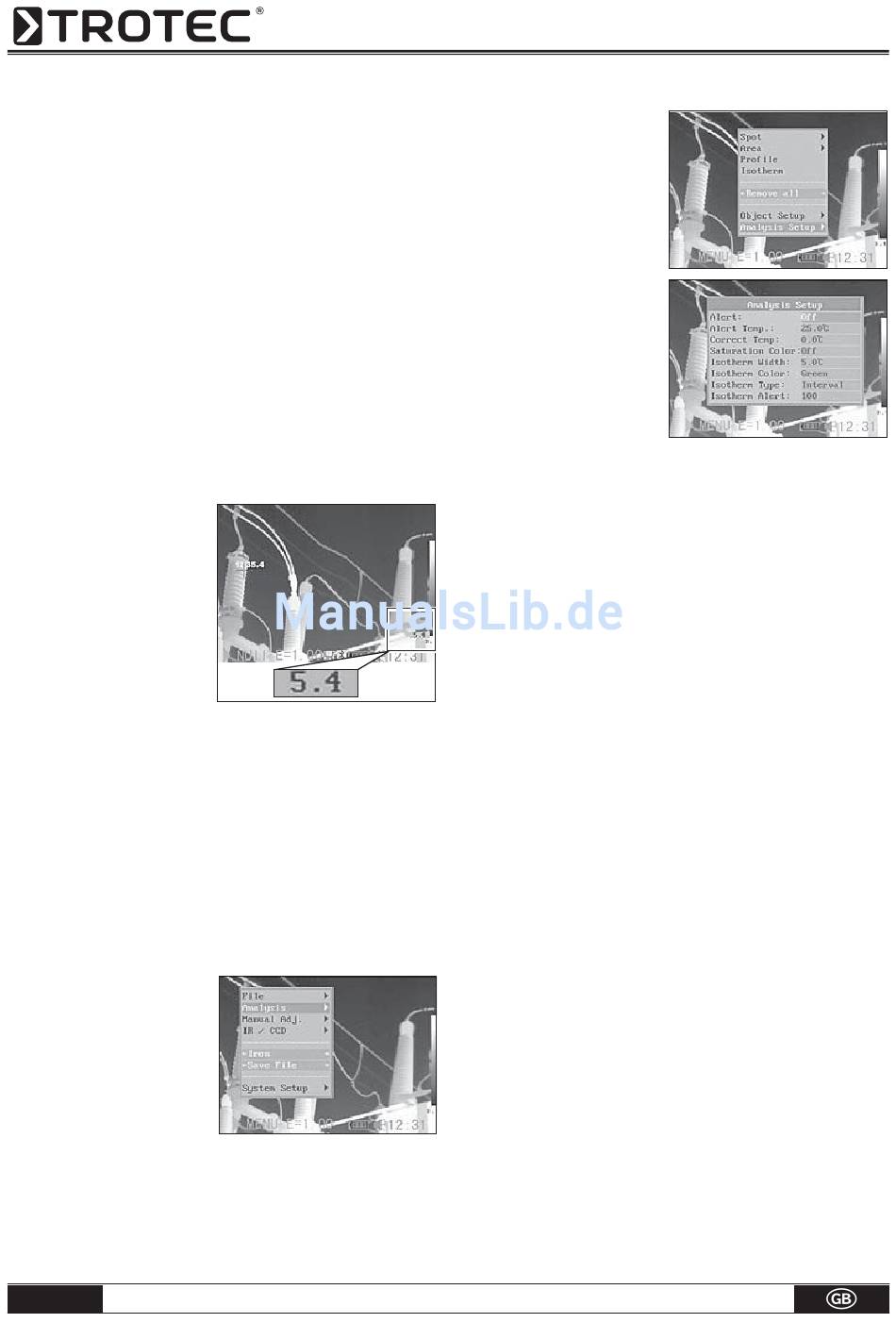

Setting analysis settings
1. Press the MENU/
ENTER key.
2. Press the Up ▲ and
Down ▼ arrow on the
omni selector to select
the [Analysis] menu,
then press the MENU/
ENTER key.
B - 13
3. Press Up ▲ and
Down ▼ arrow on the
omni selector to select
[Set-Up], then press
the
key.
4. Setting analysis para-
meter.
• Press the Up or Down
arrow on the omni se-
lector to select a fi eld
to change.
• Press the Left or Right arrow on the selector to set
the values.
5. After this operation, press the MENU/ENTER key to
save changes, or press the C key close menu window
without saving.
About the analysis settings:
Alert
Enable or disable the temperature alert. When the
setting is "On", the temperature reading of "Spot 5
(EC 060 V) / 10 (EC 060 V+)" will be displayed in
red, meaning the alert status, if the setting [Capture
Spot] is "Maximum", and the measured temperature
in "Spot 1" of "Manual adj" is higher than the preset
alert temperature. On the contrary, if "Spot 5/10",
set as "Minimum" in [Capture Spot], has a tempe-
rature lower than the preset alert temperature, the
temperature reading will be displayed in the alert
mode.
Alert temp
Sets the temperature limit of "Alert".
Correct temp
Corrects the measured temperature value of the camera
to ensure the measurement accuracy under special
circumstances. Zero point offset of the calibration
curve.
