- Maximum
Setting Spot 5 or Spot 10 so that it tracks the
hottest spot on the display.
- Minimum
Setting Spot 5 or Spot 10 so that it tracks the
coolest spot on the display.

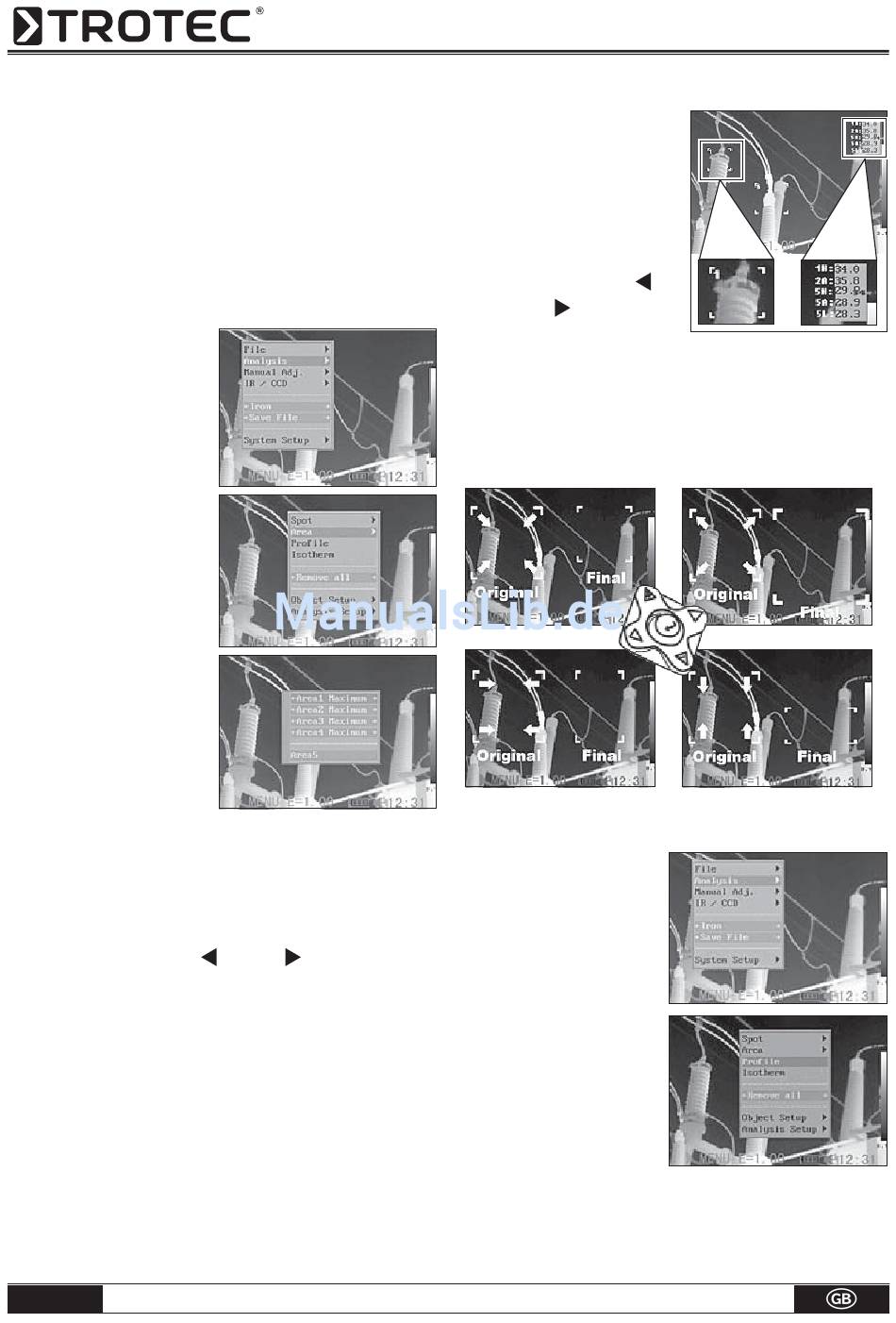

Area analysis AREA (optional EC 060 V+)
1. Press the MENU/
ENTER key.
2. Press the UP ▲ and
Down ▼ key on the
omni-seletor to get to
the menu item [Ana-
lysis].
3. Press the arrow UP▲
and Down ▼, to get
to [Area].
4. Setting area analysis.
• Press the arrow
UP ▲ / DOWN ▼
on the omni-
selector to select
the area. Confirm
with Menu/Enter.
A (further) menu
item appears on the LCD.
• A display panel appears in the top right-hand cor-
ner. It shows the Max/Min and Average temperature
of the selected area.
• Press the LEFT
betweeen Max, Min or Average temperature of
the selected area.
• When Area 5 is selected, Max, Min and Average
temperature are displayed simultaneously.
B - 15
Right key to select
Operating manual – Infrared camera
5. Moving the area
• Start with item 1 of the
menu to determine
the area you wish to se-
lect. The area can be
moved by pressing ▲ UP,
DOWN ▼, LEFT
RIGHT .
6. Deleting the area
• Start with item 1 of the menu or select menu
item [Area].
• Press the C-key to delete the selected area.
• Changing form/ size of the analysis area.
UP + Left
DOWN + Left
Professional analysis PROFILE (optional EC 060 V+)
1. Press the MENU/
ENTER key.
▲ UP/
2. Press the
DOWN ▼ arrow on
the omni-selector to
reach the menu item
[Analysis].
▲ UP/
3. Press the
DOWN ▼ arrow to
reach the menu item
[Profi le]. A profi le line
appears on the LCD.

Moving the Analysis

or
UP + Right
DOWN + Right
