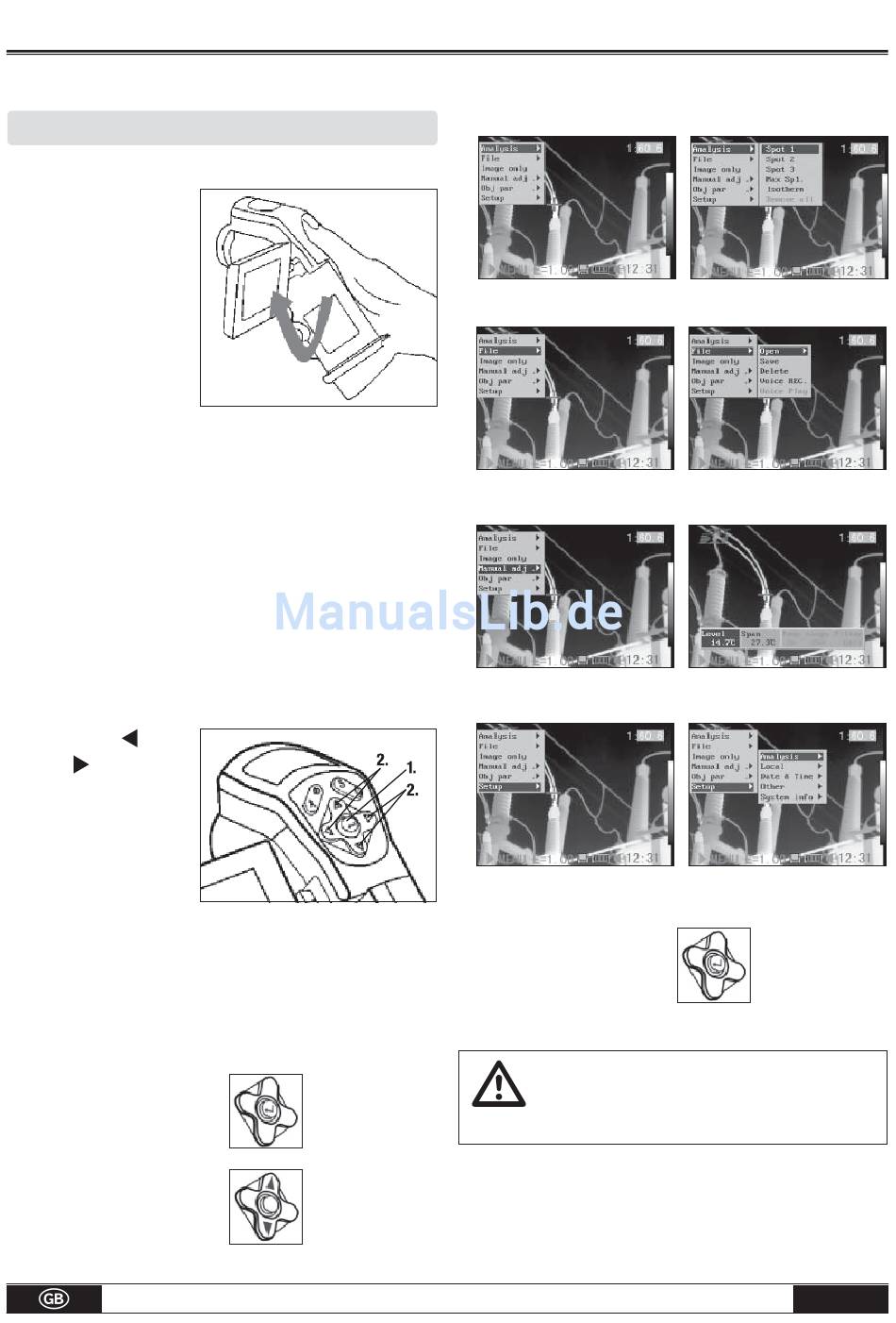

04. BASIC FUNCTIONS

Using the LCD Monitor

If you wish to use the
LCD monitor for shoo-
ting, playing back ther-
mal images and ad-
justing menu settings,
follow the instruction
below.
1. Open the LCD display
in the direction of
the arrow.
2 . Aim the IR camera at a subject.
• For a better temperature measurement, please
do make the subject in center of the image that
is shown on the LCD monitor.
• The LCD will shut off when close it.

Selecting Menus and Settings

You can select the settings by pressing the MENU/KEY key.
1. Press the MENU / ENTER key. (1).
2. Press the Left,
Right or Up, Down
arrow (2) on the
omni selector.
3. Press the MENU/
ENTER button (1).
Example
1. Press the MENU/
ENTER key.
2. Select a function item
using.
Analysis Menu
File Menu
File Menu
Setup Menu
4. Select setting
contents using.
Operating manual – Infrared camera
The menu items displayed can vary
depending on the individual settings!
B - 8
