Saturation colour
When activated, the width of the image with the high-
est temperature is coloured green.
Isotherm width
Sets the width of isothermal interval. The width can
be adjusted from 0.1 to the upper limit of the ma-
ximum temperature measurement range under this
condition.
Isotherm color
Sets the color of the isotherm interval. Transparent,
Green, Black and White are available.
Isotherm Type
Dual
Above
Dual
Below
Isotherm
Above
Type
Below
Interval
Isotherm-Alert
The alarm threshold is adjustable from 1 to 255 and
describes the ratio of the LCD area between 1/255
and 255/255, e.g the isotherm range is from 35°C
to 40°C and the Iso Alarm is 100. The alarm sounds
when the isotherm area on the LCD makes up more
than 100/255 of the display.

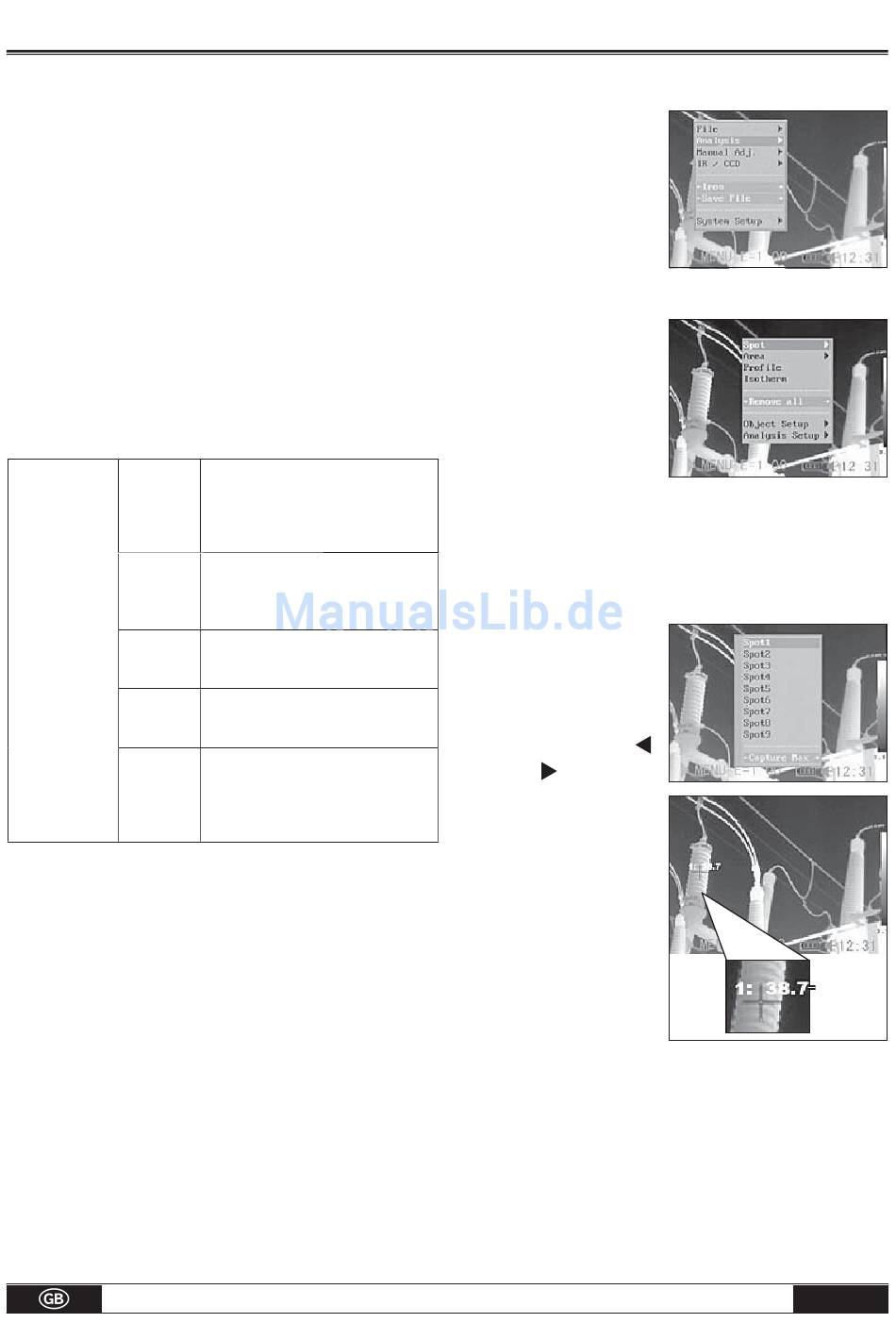

Spot analysis

This topic briefl y explains how to setting the analysis
tools on the thermal image.
1. Press the MENU/ENTER key.
Shows all temperatures within the set
isotherm intervals in one colour and in
addition all areas which are warmer than
the upper interval threshold in a different
colour.
Shows all temperatures within the set iso-
therm intervals in one colour and in addition
all areas which are colder than the lower
interval threshold in a different colour.
Shows the isotherm interval and all areas
which are warmer than the upper interval
threshold in the same colour.
Shows the isotherm interval and all areas
which are colder than the upper interval
threshold in the same colour.
Shows the set isotherm interval in one
colour. The rest
of the image is display in IR pseudo
colours.
Operating manual – Infrared camera
2. Press the Up ▲ or
Down ▼ key on the
omni-selector to get to
the menu item [Analy-
sis].
3. Setting the spot analysis
• Press the Up ▲ or
Down ▼ arrow on
the omni selector
to select a spot,
then press MENU/
ENTER Key. One or
more crosshair will
appear on the screen.
• Spot 5 will automatically track the highest or
lowest spot on the screen.
4. Moving the analysis spot.
• Start from Step 1 to
set or select a spot
analysis.
• Press the Up ▲,
Down ▼, Left
Right arrow on the
omni selector to
move the activated
spot.
Temperature value
of current spot will
modify.
5. Removing the measu
ring spots.
• Start with Step 1
and select
measuring spot you wish to remove.
• Press "C" to remove the measuring spot.
Tracking the measuring spot
Setting Spot 5 or Spot 10 so that it tracks the high-
est/lowest point on the display.
,
the
Measured
Temperature
