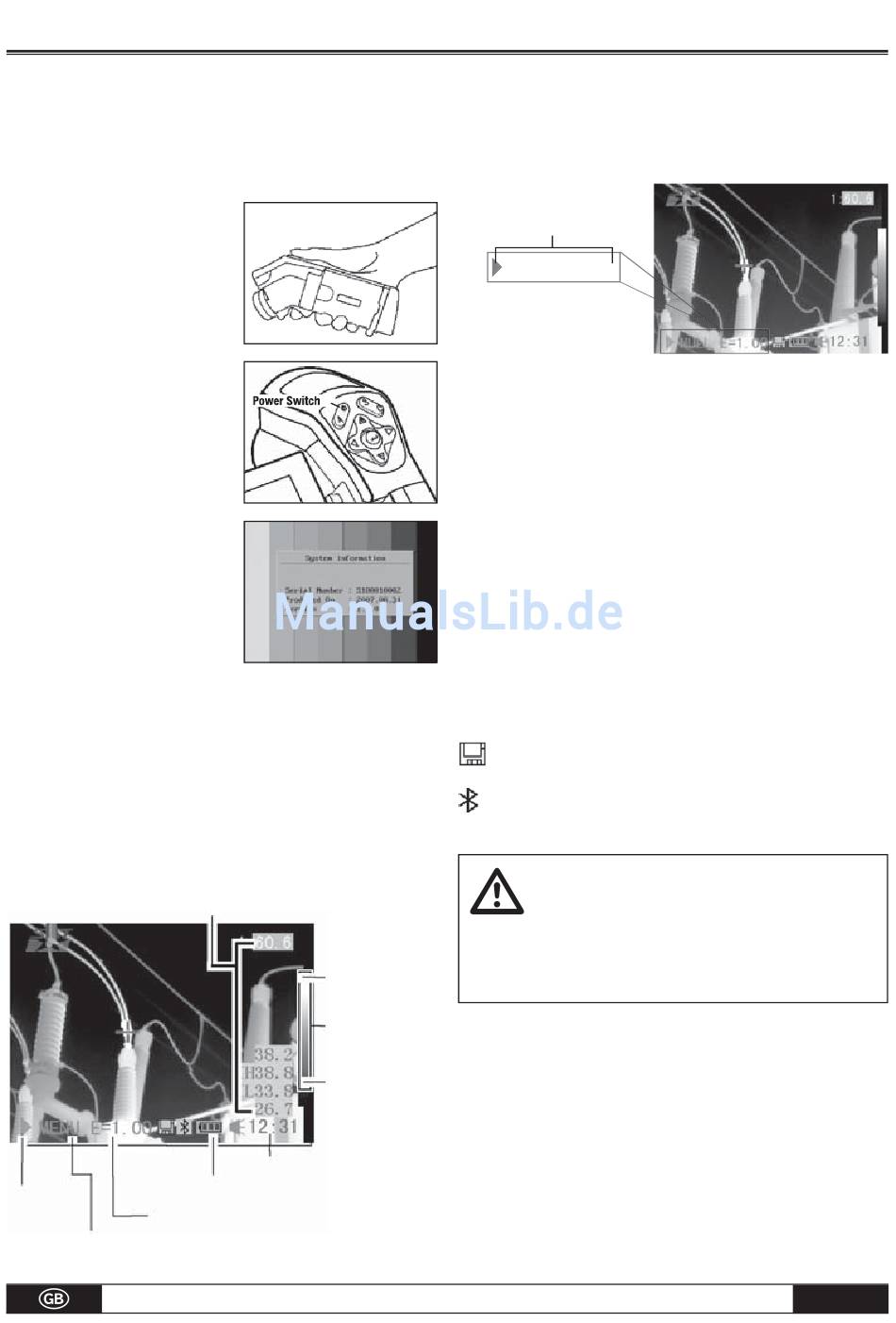

Turning the Power On / Off
The power indicator remains lit while the power of the
camera is on.
1. Holding the camera cor-
rectly with your right hand,
put your thumb above the
key pad and put your fore-
fi nger in front of the defi -
nable trigger
2. Press and hold the power
switch for 3 seconds. The
power indicator lights green.
3. After while, a startup image
will appear on the screen.
4. To turning off the Power Hold the power switch for 3
seconds. The power indicator goes off.
Checking the Information on the LCD Monitor
The LCD monitor has a fi eld of vision of 100% of the
actual shooting image.
The following displays in information view.
Live/
Freeze Current Emissivity
Operation indicator
Reading
Upper limit of
color scale
Color scale
Lower limit of
color scale
Time
Battery Status
Operating manual – Infrared camera
About the operation indicator
The operation indicartor shows the status of the camera
of the operation.
Status of the camera
NULL E = 1.00
Menu . . . . . . . . . . . . . . . . . . Represents the menu mode.
Null . . . . . . . . . . . . . . . . . . Represents the non-menu mode
1 - 4 . . . . . . . . . . . . . . Represents the current analysis tool
Cap . . . . . . . . . . . . . . . . . . . . Reprents the current analysis
Isot . . . . . . . . . . . . . . . . Represents the current analysis
E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Current Emissivity.
. . . . . . . . . . . . . . . . . . . . . SD card has been inserted.
. . . . . . . . . . . . Blue tooth headset has been installed.
Before you do operation, please enter
[Null] mode.
Press the cancel key repeatedly until see
the message of null in the operation in-
dicator.
and no analysis tools is selected.
is sport 1 or spot 2 or spot 3.
tool is auto-tracking spot.
tool is isothermnalysis.
