Flow CUT BOX Betriebsanleitung Seite 29

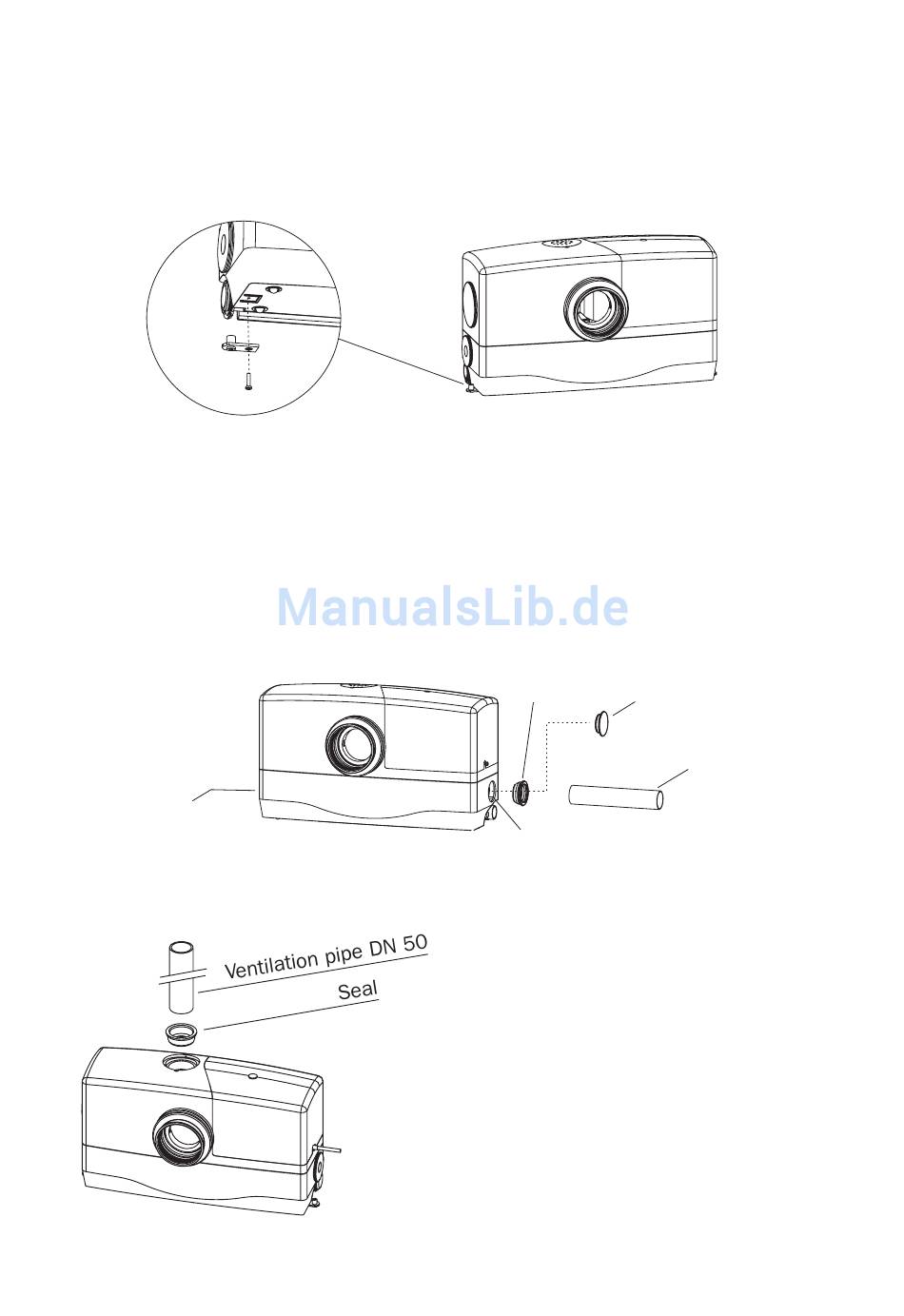

Installation of securing brackets
Keeps the lifting unit safely in place, even in case of flooding.
1. Place the lifting unit in the desired installation location
2. Secure unit to the ground with the aid of the brackets
Side inlets DN 50
1. Remove the stopper (1) from the desired DN 50 inlet connection to reveal the
fitted rubber seal (2)
2. Push the supply line DN 50 (3) approx. 16 mm into the rubber seal (use a
lubricant if necessary)
DN 50
DN 50
Figure 5
Figure 3
2
1
2
DN 50
DN 50
Figure 4
Separate vent line
1. For odour- sensitive applications,
e. g. in doctor's offices, vent the
unit above the roof
2. Remove the filter cover and the car-
bon filter (see page 34, fig. 11)
3. Push the vent line into the rubber
seal (use a lubricant if necessary)
29
