Set up/installation | For ground set up
ATTENTION! The relevant standards must be observed.
For use below the backwash level:
>
Guide the discharge line with a loop above the backwash level
> If the base of the discharge line loop is more than 5 m above the lifting unit, an
additional checkvalve must be installed
> Provide shut off valves
> Every drain must be fitted with an odour trap
Also see installation dimensions (chapter 20, page 37, figure 15).
ATTENTION!
>
The set up must be made frost-free and on level ground
Connection of discharge pipe
> Use a PVC discharge pipe with an outside diameter of 25 or 32 mm
>
Push the pipe to about 16 mm into the rubber sleeve (use a lubricant if neces-
sary) and secure it on the outside with the existing hose clamp
2
1
2
1

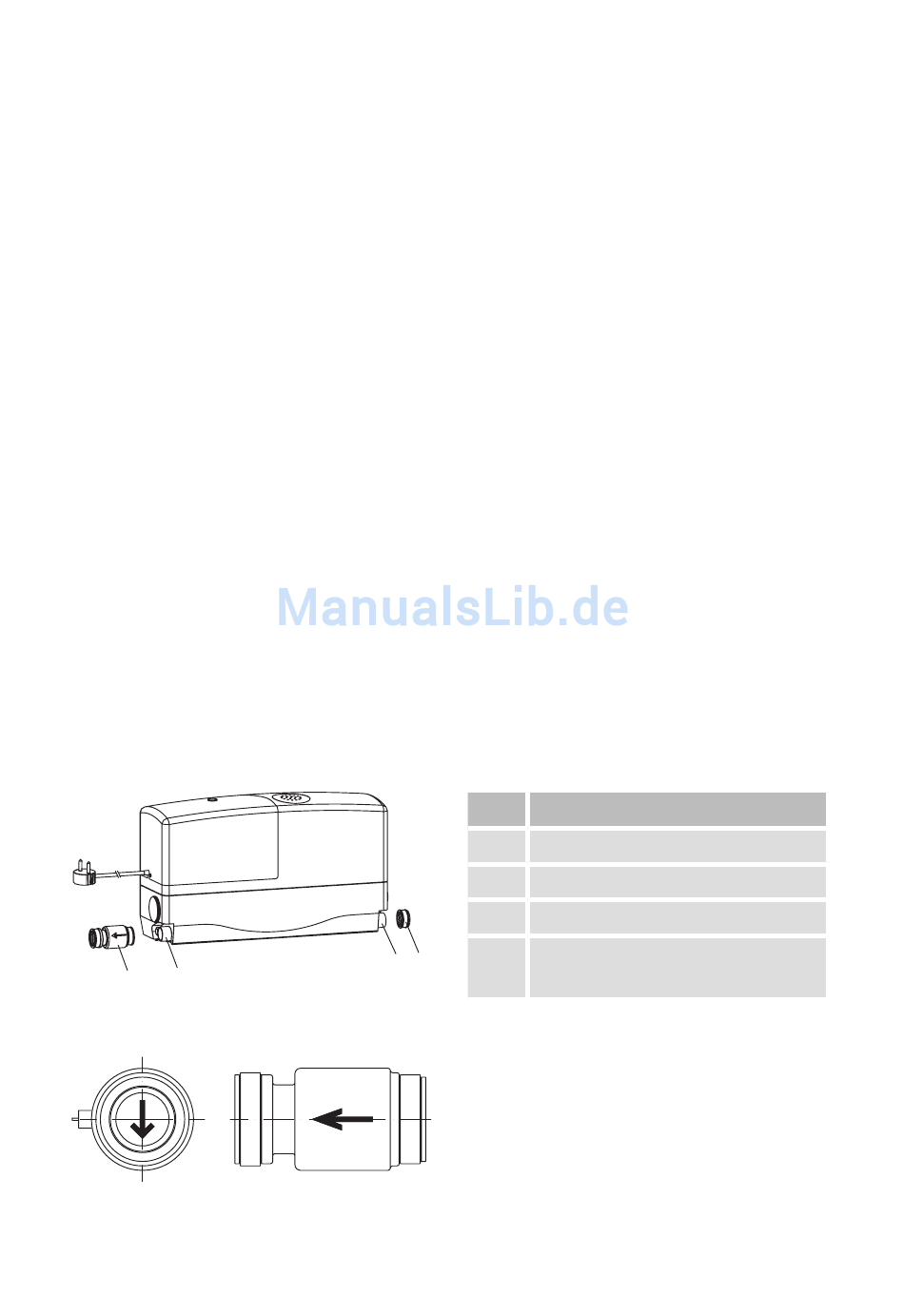

Figure 1
C
Figure 2

9. Set up/installation

9.1 For ground set up

3 4
Pos
1
2
3
4
3 4
Fitting of non-return valve
A = Flow must follow direction of arrow
C = Flap must hinge from the top with
A
28
Description
Non-return valve
Discharge line (right)
Discharge line (left)
Cap for unused end of
discharge line
arrow pointing down
