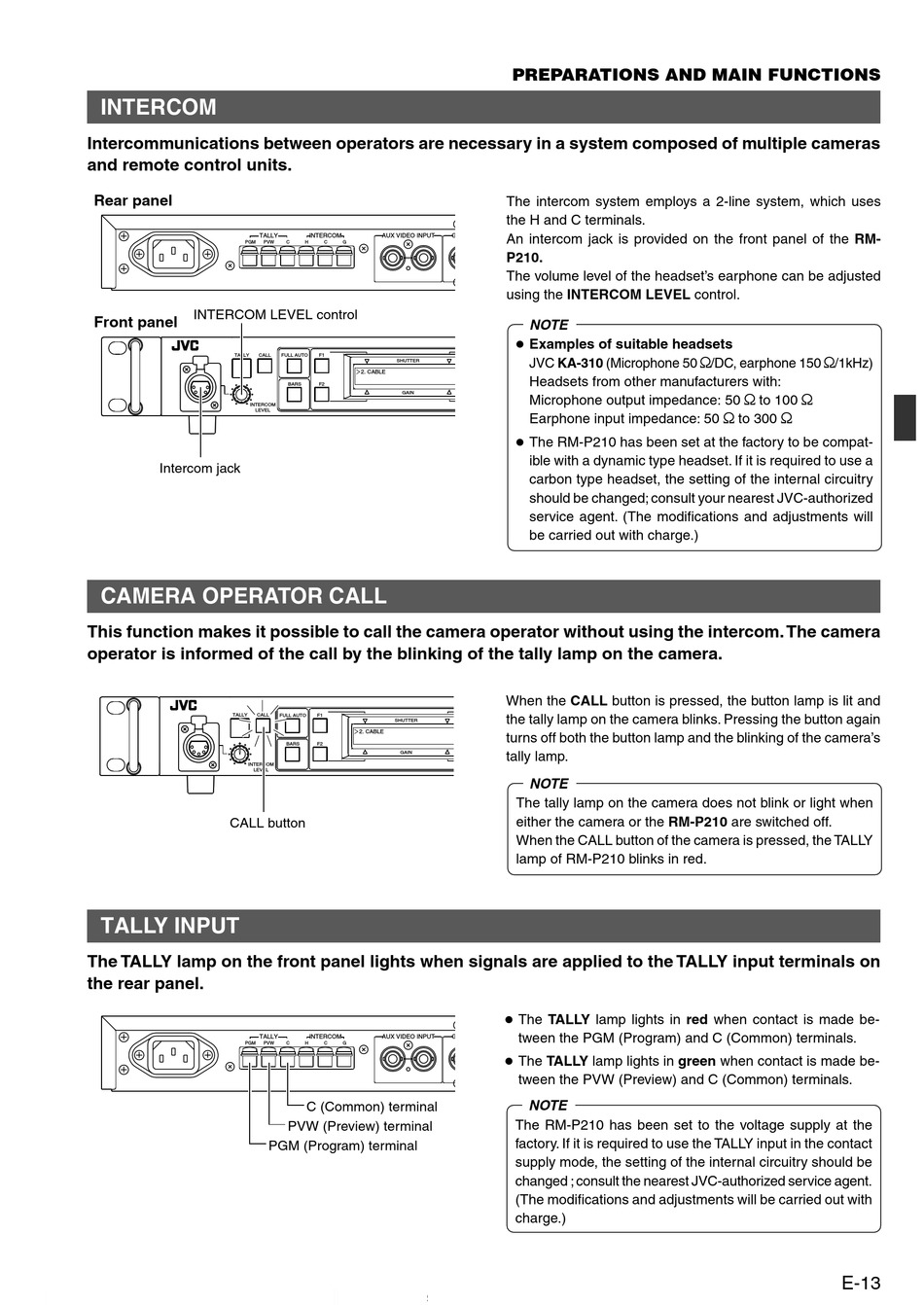

INTERCOM

Intercommunications between operators are necessary in a system composed of multiple cameras
and remote control units.
Rear panel
TALLY
PGM
INTERCOM LEVEL control
Front panel
TALLY CALL
INTERCOM
LEVEL
Intercom jack

CAMERA OPERATOR CALL

This function makes it possible to call the camera operator without using the intercom. The camera
operator is informed of the call by the blinking of the tally lamp on the camera.
TALLY CALL
INTERCOM
LEVEL
CALL button

TALLY INPUT

The TALLY lamp on the front panel lights when signals are applied to the TALLY input terminals on
the rear panel.
TALLY
PGM
INTERCOM AUX VIDEO INPUT
PVW C H C G
FULL AUTO F1
SHUTTER
2. CABLE
BARS F2
GAIN
FULL AUTO F1
SHUTTER
2. CABLE
BARS F2
GAIN
INTERCOM AUX VIDEO INPUT
PVW C H C G
C (Common) terminal
PVW (Preview) terminal
PGM (Program) terminal
PREPARATIONS AND MAIN FUNCTIONS
The intercom system employs a 2-line system, which uses
the H and C terminals.
G An intercom jack is provided on the front panel of the RM-
P210.
The volume level of the headset's earphone can be adjusted
using the INTERCOM LEVEL control.
NOTE
● Examples of suitable headsets
JVC KA-310 (Microphone 50 W/DC, earphone 150 W/1kHz)
Headsets from other manufacturers with:
Microphone output impedance: 50 W to 100 W
Earphone input impedance: 50 W to 300 W
● The RM-P210 has been set at the factory to be compat-
ible with a dynamic type headset. If it is required to use a
carbon type headset, the setting of the internal circuitry
should be changed; consult your nearest JVC-authorized
service agent. (The modifications and adjustments will
be carried out with charge.)
When the CALL button is pressed, the button lamp is lit and
the tally lamp on the camera blinks. Pressing the button again
turns off both the button lamp and the blinking of the camera's
tally lamp.
NOTE
The tally lamp on the camera does not blink or light when
either the camera or the RM-P210 are switched off.
When the CALL button of the camera is pressed, the TALLY
lamp of RM-P210 blinks in red.
● The TALLY lamp lights in red when contact is made be-
tween the PGM (Program) and C (Common) terminals.
G
● The TALLY lamp lights in green when contact is made be-
tween the PVW (Preview) and C (Common) terminals.
NOTE
The RM-P210 has been set to the voltage supply at the
factory. If it is required to use the TALLY input in the contact
supply mode, the setting of the internal circuitry should be
changed ; consult the nearest JVC-authorized service agent.
(The modifications and adjustments will be carried out with
charge.)
