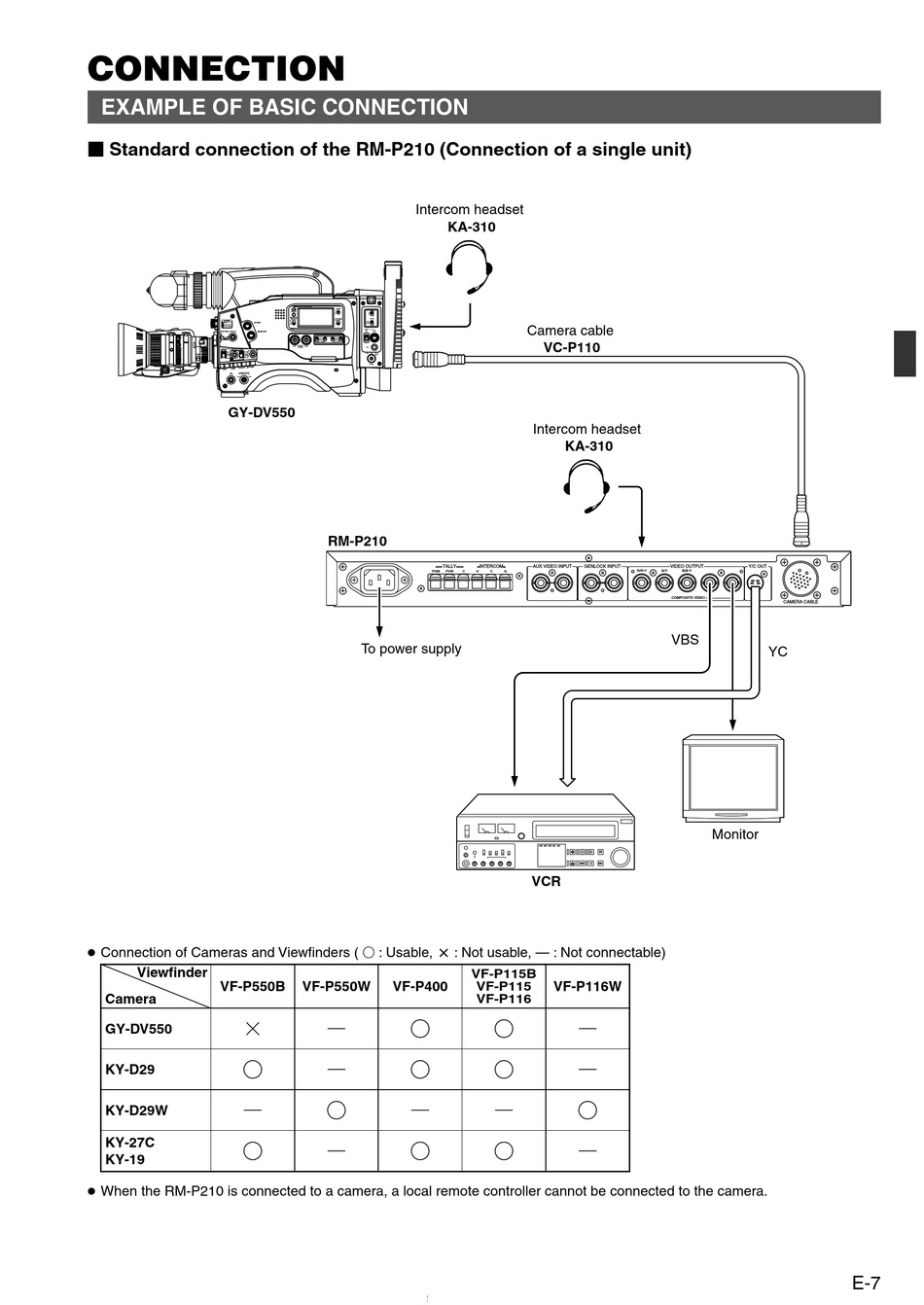

CONNECTION

EXAMPLE OF BASIC CONNECTION

Standard connection of the RM-P210 (Connection of a single unit)
FILTER
ALARM
1 3200k
2 5600k+1/8ND
3 5600k+1/64ND
SHUTTER STATUS MONITOR
MENU
AUTO IRIS FULL AUTO BLACK LOLUX
BACK L STRETCH
NORMAL NORMAL
SPOT L COMPRESS
NG OPERATE
ON OFF
GY-DV550
● Connection of Cameras and Viewfinders (
Viewfinder
VF-P550B
Camera
GY-DV550
KY-D29
KY-D29W
KY-27C
KY-19
● When the RM-P210 is connected to a camera, a local remote controller cannot be connected to the camera.
Intercom headset
KA-310
OPERATE/WARNING
LIGHT
MODE
RESET ON
OFF RM
VTR
MONITOR
COUNTER INCOM
SELECT MIC
CH-1 CTL
MIX TC CARBON
DYNAMIC
CH-2 UB
INCOM
MIC LEVEL
ON
CH-1 CH-2 CH-1 CH-2
AUTO FRONT
MANUAL REAR
AUDIO SELECT AUDIO INPUT
OFF
CH-1 AUDIO CH-2
LEVEL CALL
RM OFF DC IN
/BATT.
POWER
RM-P210
TALLY
PGM PVW C
To power supply
: Usable, : Not usable, — : Not connectable)
VF-P550W VF-P400
Camera cable
VC-P110
Intercom headset
KA-310
INTERCOM AUX VIDEO INPUT GENLOCK INPUT
H C G R/R-Y
VCR
VF-P115B
VF-P116W
VF-P115
VF-P116
VIDEO OUTPUT Y/C OUT
G/Y B/B-Y
COMPOSITE VIDEO
CAMERA CABLE
VBS
YC
Monitor
