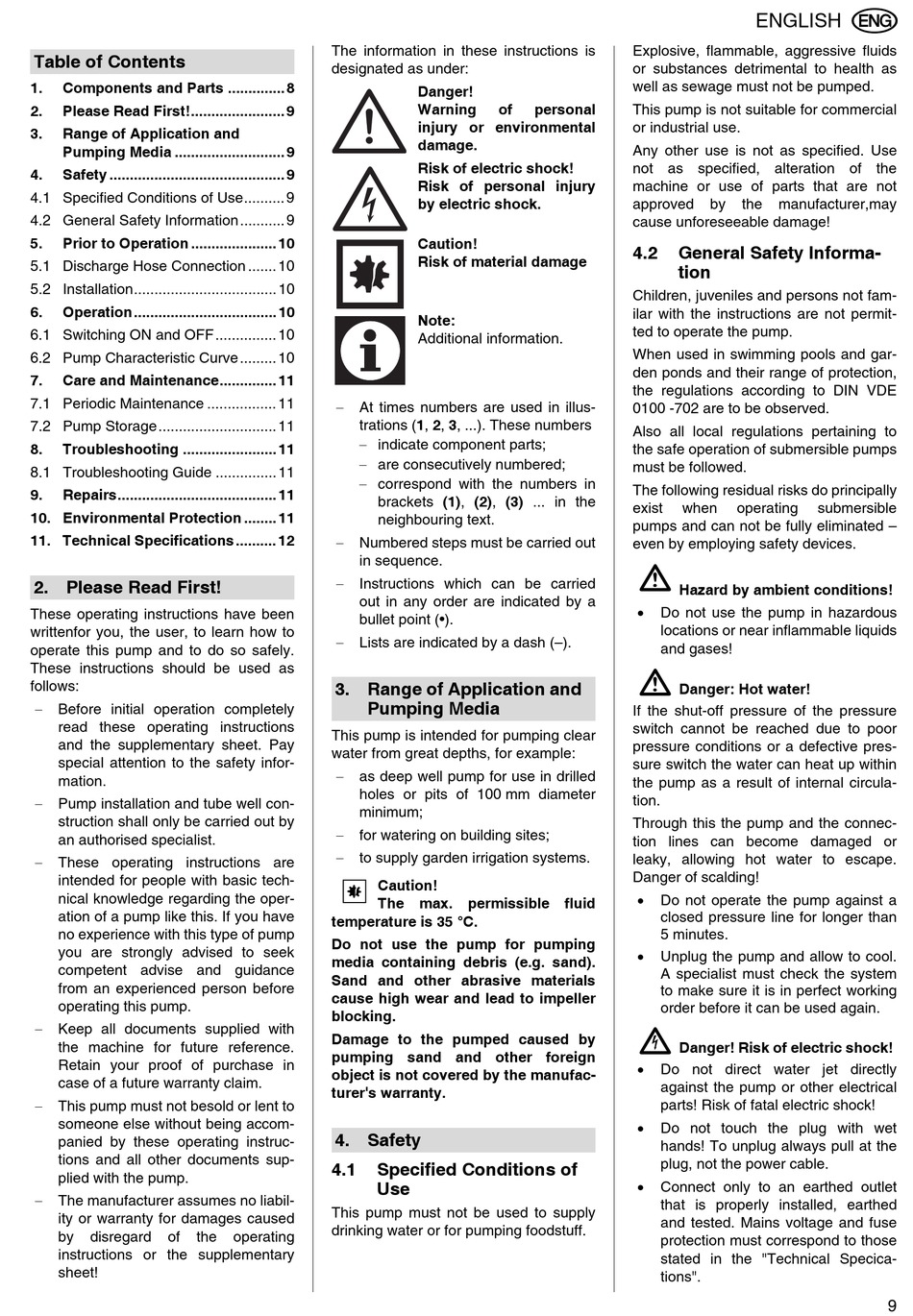

Table of Contents
1. Components and Parts .............. 8
2.

Please Read First!....................... 9

Range of Application and 
3.
Pumping Media ........................... 9
4. Safety ........................................... 9
4.1 Specified Conditions of Use.......... 9
4.2 General Safety Information........... 9
5. Prior to Operation ..................... 10
5.1 Discharge Hose Connection ....... 10
5.2 Installation................................... 10
6. Operation................................... 10
6.1 Switching ON and OFF............... 10
6.2 Pump Characteristic Curve......... 10
7. Care and Maintenance.............. 11
7.1 Periodic Maintenance ................. 11
7.2 Pump Storage............................. 11
8. Troubleshooting ....................... 11
8.1 Troubleshooting Guide ............... 11
9. Repairs....................................... 11
10. Environmental Protection ........ 11
11. Technical Specifications.......... 12
2. Please Read First!
These operating instructions have been
writtenfor you, the user, to learn how to
operate this pump and to do so safely.
These instructions should be used as
follows:
 Before initial operation completely
read these operating instructions
and the supplementary sheet. Pay
special attention to the safety infor-
mation.
 Pump installation and tube well con-
struction shall only be carried out by
an authorised specialist.
 These operating instructions are
intended for people with basic tech-
nical knowledge regarding the oper-
ation of a pump like this. If you have
no experience with this type of pump
you are strongly advised to seek
competent advise and guidance
from an experienced person before
operating this pump.
 Keep all documents supplied with
the machine for future reference.
Retain your proof of purchase in
case of a future warranty claim.
 This pump must not besold or lent to
someone else without being accom-
panied by these operating instruc-
tions and all other documents sup-
plied with the pump.
 The manufacturer assumes no liabil-
ity or warranty for damages caused
by disregard of the
instructions or the supplementary
sheet!
The information in these instructions is
designated as under:
 At times numbers are used in illus-
trations (1, 2, 3, ...). These numbers
 indicate component parts;
 are consecutively numbered;
 correspond with the numbers in
brackets (1), (2), (3) ... in the
neighbouring text.
 Numbered steps must be carried out
in sequence.
 Instructions which can be carried
out in any order are indicated by a
bullet point (•).
 Lists are indicated by a dash (–).
3. Range of Application and
Pumping Media
This pump is intended for pumping clear
water from great depths, for example:
 as deep well pump for use in drilled
holes or pits of 100 mm diameter
minimum;
 for watering on building sites;
 to supply garden irrigation systems.
Caution! 
A
The max. permissible fluid
temperature is 35 °C.
Do not use the pump for pumping
media containing debris (e.g. sand).
Sand and other abrasive materials
cause high wear and lead to impeller
blocking.
Damage to the pumped caused by
pumping sand and other foreign
object is not covered by the manufac-
turer's warranty.
4. Safety
4.1 Specified Conditions of
Use
This pump must not be used to supply
drinking water or for pumping foodstuff.
operating
Danger! 
Warning of personal
injury or environmental
damage.
Risk of electric shock! 
Risk of personal injury
by electric shock.
Caution! 
Risk of material damage
Note: 
Additional information.
ENGLISH
Explosive, flammable, aggressive fluids
or substances detrimental to health as
well as sewage must not be pumped.
This pump is not suitable for commercial
or industrial use.
Any other use is not as specified. Use
not as specified, alteration of the
machine or use of parts that are not
approved by the manufacturer,may
cause unforeseeable damage!
4.2 General Safety Informa-
tion
Children, juveniles and persons not fam-
ilar with the instructions are not permit-
ted to operate the pump.
When used in swimming pools and gar-
den ponds and their range of protection,
the regulations according to DIN VDE
0100 -702 are to be observed.
Also all local regulations pertaining to
the safe operation of submersible pumps
must be followed.
The following residual risks do principally
exist when operating
pumps and can not be fully eliminated –
even by employing safety devices.

A
Hazard by ambient conditions!

Do not use the pump in hazardous
locations or near inflammable liquids
and gases!

A
Danger: Hot water!
If the shut-off pressure of the pressure
switch cannot be reached due to poor
pressure conditions or a defective pres-
sure switch the water can heat up within
the pump as a result of internal circula-
tion.
Through this the pump and the connec-
tion lines can become damaged or
leaky, allowing hot water to escape.
Danger of scalding!

Do not operate the pump against a
closed pressure line for longer than
5 minutes.

Unplug the pump and allow to cool.
A specialist must check the system
to make sure it is in perfect working
order before it can be used again.

B
Danger! Risk of electric shock!

Do not direct water jet directly
against the pump or other electrical
parts! Risk of fatal electric shock!

Do not touch the plug with wet
hands! To unplug always pull at the
plug, not the power cable.

Connect only to an earthed outlet
that is properly installed, earthed
and tested. Mains voltage and fuse
protection must correspond to those
stated in the "Technical Specica-
tions".
submersible
9
