Technical Specifications - Metabo TBP 4000 M Originalbetriebsanleitung

ENGLISH

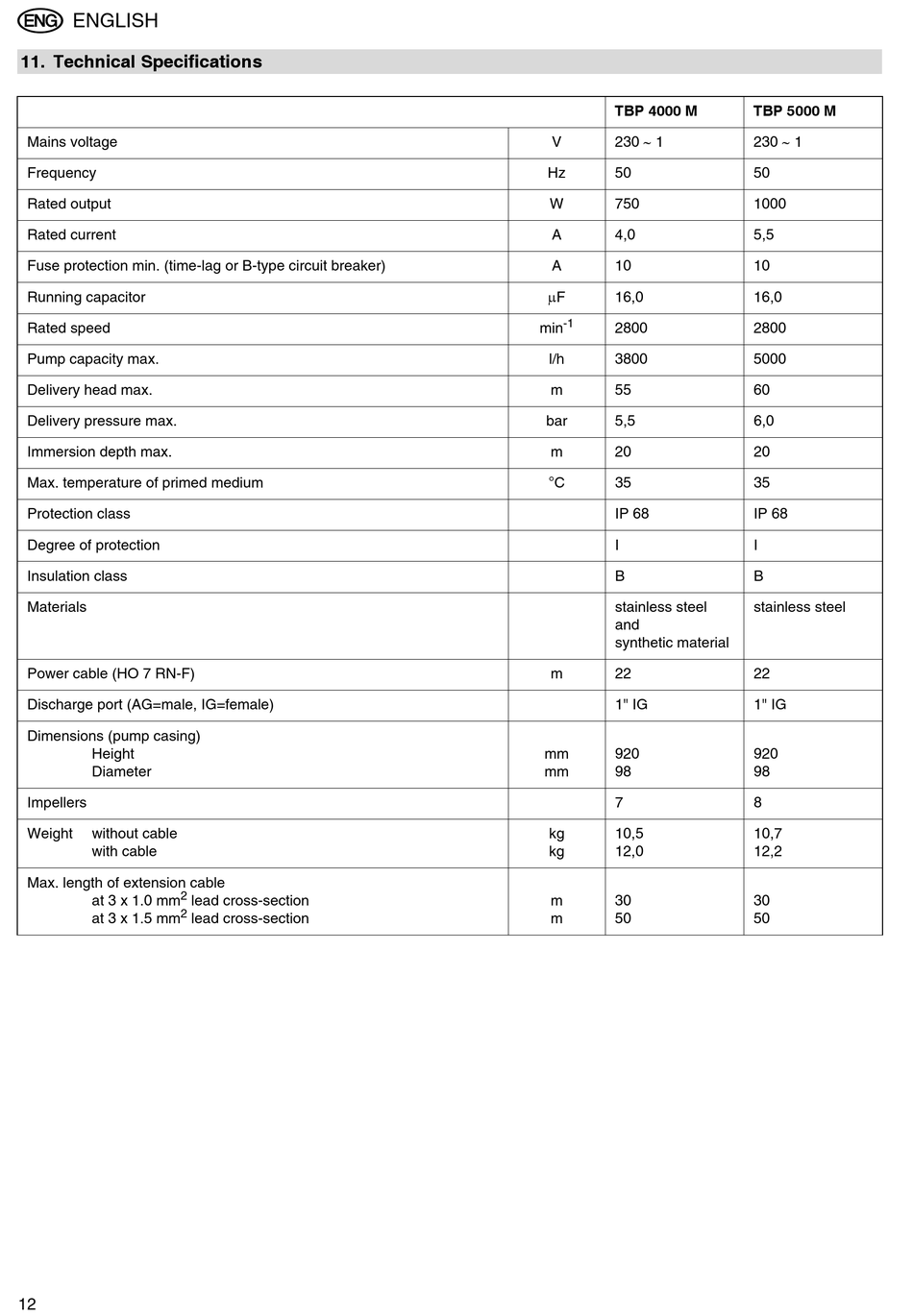

11. Technical Specifications

Mains voltage
Frequency
Rated output
Rated current
Fuse protection min. (time-lag or B-type circuit breaker)
Running capacitor
Rated speed
Pump capacity max.
Delivery head max.
Delivery pressure max.
Immersion depth max.
Max. temperature of primed medium
Protection class
Degree of protection
Insulation class
Materials
Power cable (HO 7 RN-F)
Discharge port (AG=male, IG=female)
Dimensions (pump casing)
Height
Diameter
Impellers
Weight without cable
with cable
Max. length of extension cable
2
at 3 x 1.0 mm
2
at 3 x 1.5 mm
12
lead cross-section
lead cross-section
TBP 4000 M
230  1
V
Hz 50
W 750
A 4,0
A 10
F
16,0
-1
min 2800
l/h 3800
m 55
bar 5,5
m 20
°C 35
IP 68
I
B
stainless steel 
and
synthetic material
m 22
1" IG
mm 920
mm 98
7
10,5 
kg
kg 12,0
m 30
m 50
TBP 5000 M
230  1
50
1000
5,5
10
16,0
2800
5000
60
6,0
20
35
IP 68
I
B
stainless steel
22
1" IG
920
98
8
10,7 
12,2
30
50
