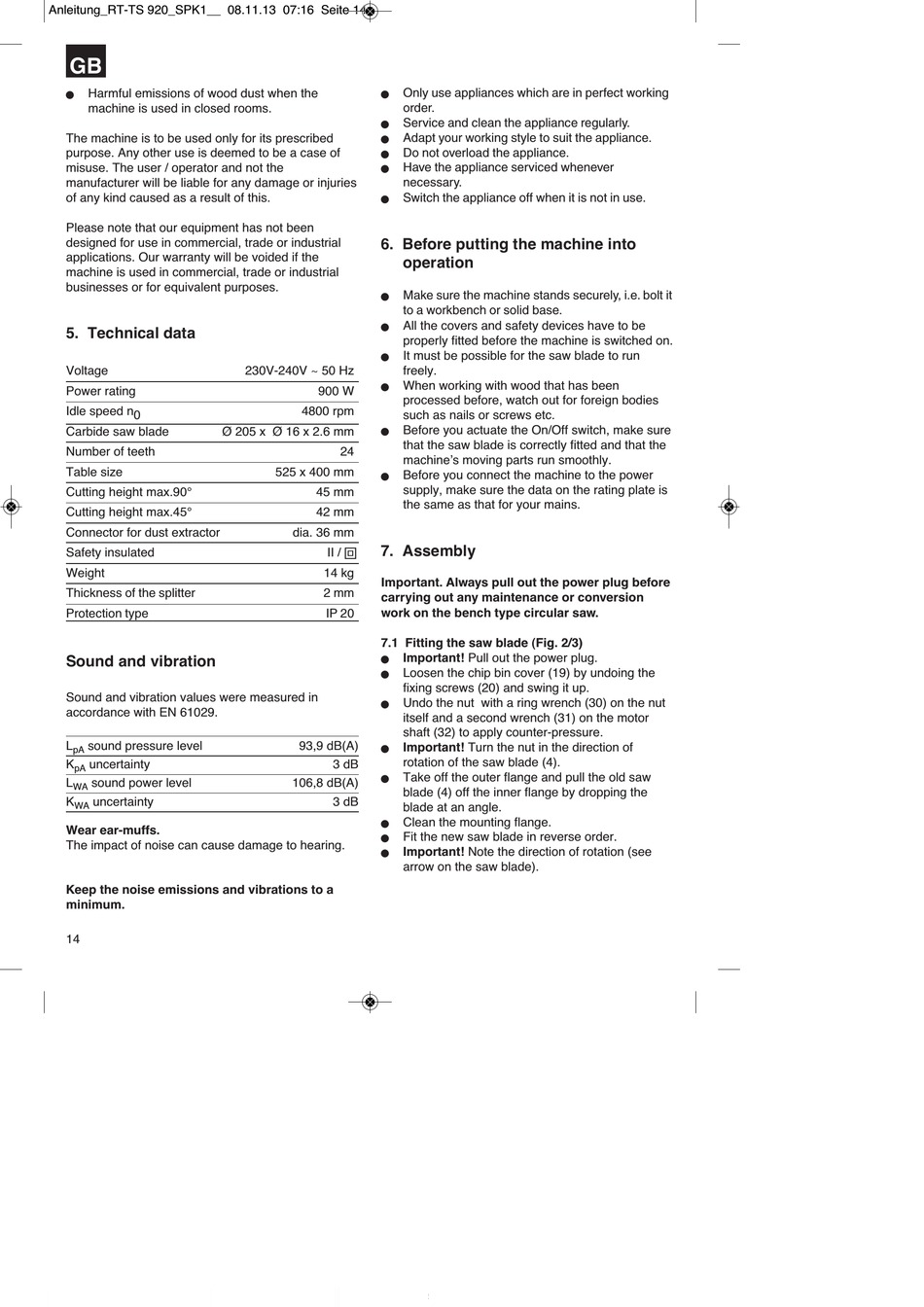

Anleitung_RT-TS 920_SPK1__ 08.11.13 07:16 Seite 14
GB
Harmful emissions of wood dust when the
n
machine is used in closed rooms.
The machine is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the
manufacturer will be liable for any damage or injuries
of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.

5. Technical data

Voltage
Power rating
Idle speed n 0
Carbide saw blade Ø 205 x Ø 16 x 2.6 mm
Number of teeth
Table size
Cutting height max.90°
Cutting height max.45°
Connector for dust extractor
Safety insulated
Weight
Thickness of the splitter
Protection type
Sound and vibration
Sound and vibration values were measured in
accordance with EN 61029.
L sound pressure level
pA
K uncertainty
pA
L sound power level
WA
K uncertainty
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Keep the noise emissions and vibrations to a
minimum.
14
Only use appliances which are in perfect working
n
order.
Service and clean the appliance regularly.
n
Adapt your working style to suit the appliance.
n
Do not overload the appliance.
n
Have the appliance serviced whenever
n
necessary.
Switch the appliance off when it is not in use.
n
6. Before putting the machine into
operation
Make sure the machine stands securely, i.e. bolt it
n
to a workbench or solid base.
All the covers and safety devices have to be
n
properly fitted before the machine is switched on.
It must be possible for the saw blade to run
n
230V-240V ~ 50 Hz freely.
When working with wood that has been
n
900 W
processed before, watch out for foreign bodies
4800 rpm
such as nails or screws etc.
Before you actuate the On/Off switch, make sure
n
that the saw blade is correctly fitted and that the
24
machineʼs moving parts run smoothly.
525 x 400 mm
Before you connect the machine to the power
n
supply, make sure the data on the rating plate is
45 mm
the same as that for your mains.
42 mm
dia. 36 mm
II / ®

7. Assembly

14 kg
Important. Always pull out the power plug before
2 mm
carrying out any maintenance or conversion
IP 20 work on the bench type circular saw.
7.1 Fitting the saw blade (Fig. 2/3)
Important! Pull out the power plug.
n
Loosen the chip bin cover (19) by undoing the
n
fixing screws (20) and swing it up.
Undo the nut with a ring wrench (30) on the nut
n
itself and a second wrench (31) on the motor
shaft (32) to apply counter-pressure.
93,9 dB(A)
Important! Turn the nut in the direction of
n
rotation of the saw blade (4).
3 dB
Take off the outer flange and pull the old saw
n
106,8 dB(A)
blade (4) off the inner flange by dropping the
3 dB
blade at an angle.
Clean the mounting flange.
n
Fit the new saw blade in reverse order.
n
Important! Note the direction of rotation (see
n
arrow on the saw blade).
