EX-1177-2S

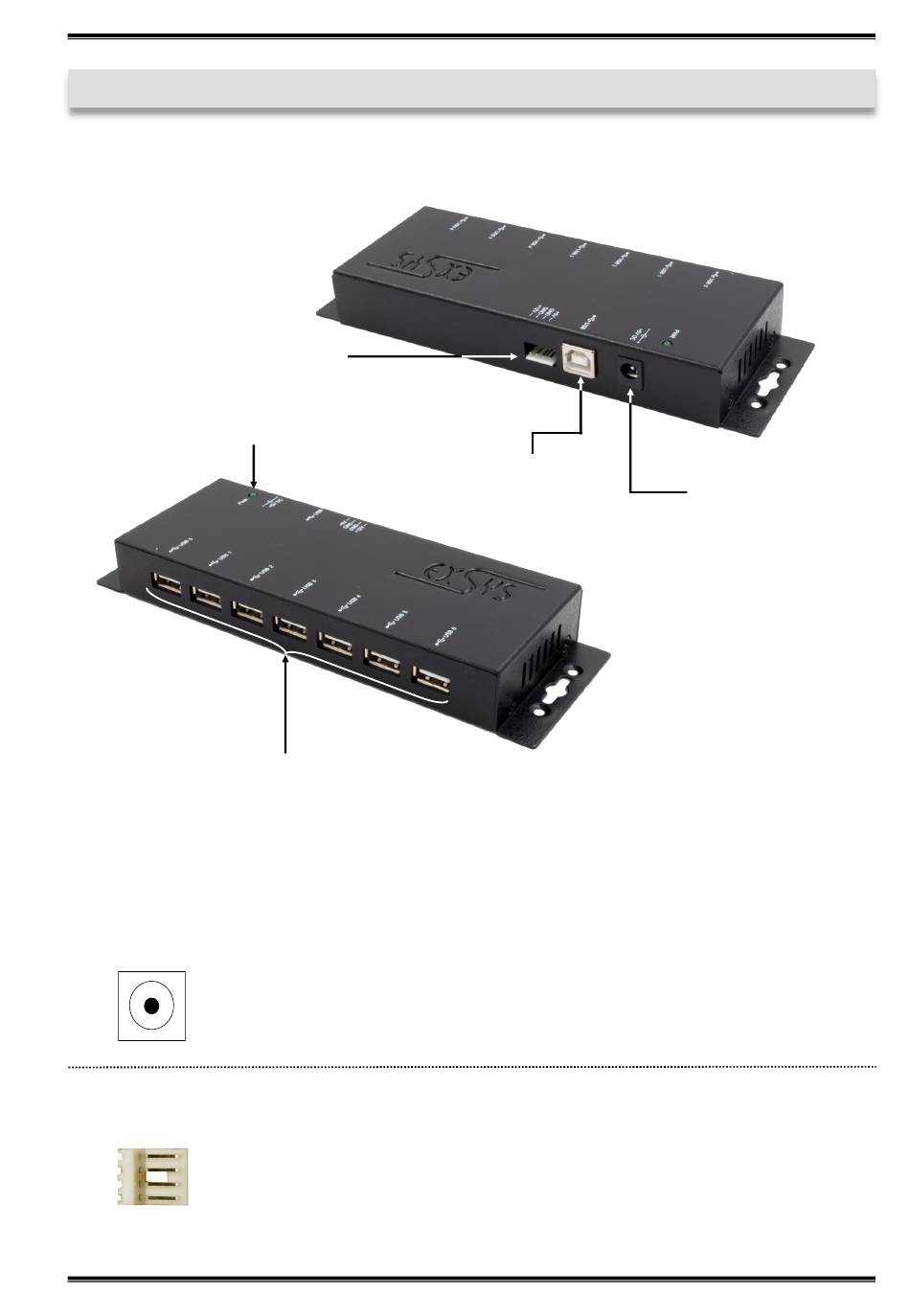

3. Layout, Connections & Jumpers
3.1 Layout
4 Pin Floppy Connector
Power LED
7x USB 2.0
Downstream A-Port
3.2 Connections
5V Connector:
4 Pin Floppy Connector:
1 +5V
2 GND
3 GND
4 +12V
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
ATTENTION!!!
Use only with Power Supply which is included in delivery!
Please pay attention to the correct polarity! The 12V Pin isn't used!
Never connect or release the plug while the PC power is on!
1x USB 2.0
Upstream B-Port
9
English
5V Connector for sup-
plied Power Supply
