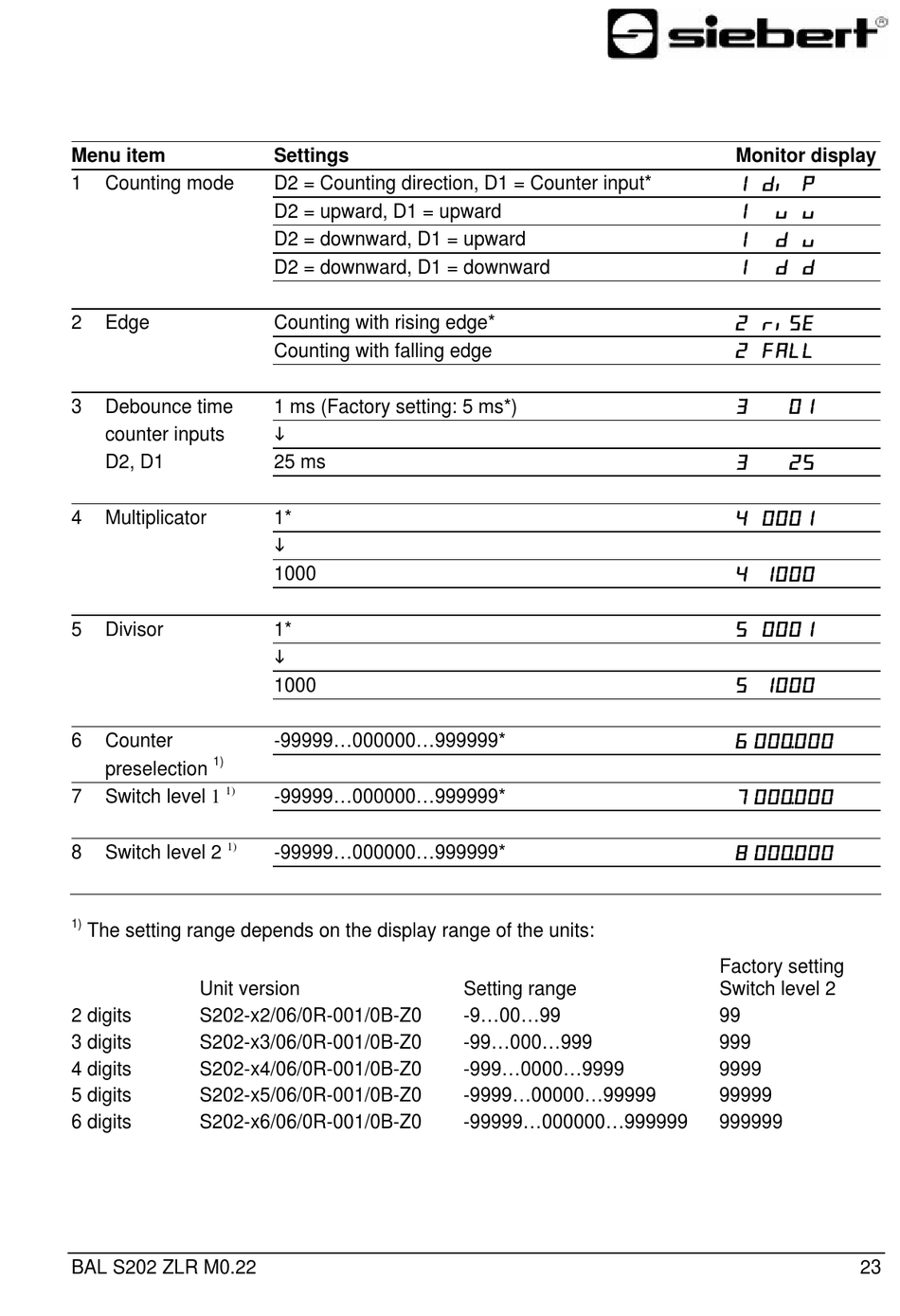

Siebert S202-02/06/0x-001/0B-Z0 Bedienungsanleitung Seite 23

Menu item
1 Counting mode
2 Edge
3 Debounce time
counter inputs
D2, D1
4 Multiplicator
5 Divisor
6 Counter
1)
preselection
1)
7 Switch level 1
1)
8 Switch level 2
1)
The setting range depends on the display range of the units:
Unit version
2 digits S202-x2/06/0R-001/0B-Z0
3 digits S202-x3/06/0R-001/0B-Z0
4 digits S202-x4/06/0R-001/0B-Z0
5 digits S202-x5/06/0R-001/0B-Z0
6 digits S202-x6/06/0R-001/0B-Z0
BAL S202 ZLR M0.22
Settings
D2 = Counting direction, D1 = Counter input*
D2 = upward, D1 = upward
D2 = downward, D1 = upward
D2 = downward, D1 = downward
Counting with rising edge*
Counting with falling edge
1 ms (Factory setting: 5 ms*)
25 ms
1*
1000
1*
1000
-99999...000000...999999*
-99999...000000...999999*
-99999...000000...999999*
Setting range
-9...00...99
-99...000...999
-999...0000...9999
-9999...00000...99999
-99999...000000...999999
Monitor display
D P
u u
D u
D D
R SE
FALL
Factory setting
Switch level 2
99
999
9999
99999
999999
