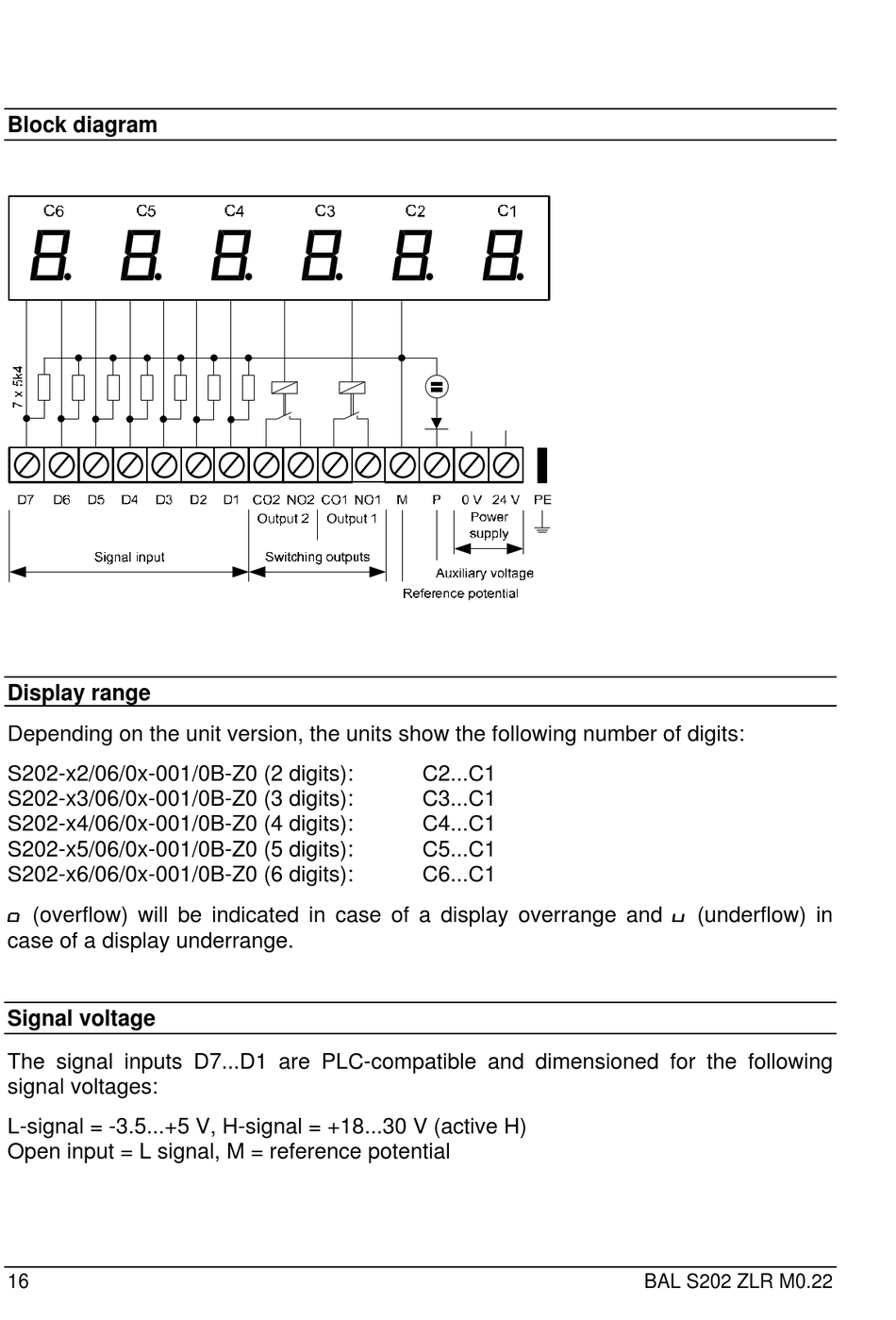

Block diagram
Display range
Depending on the unit version, the units show the following number of digits:
S202-x2/06/0x-001/0B-Z0 (2 digits):
S202-x3/06/0x-001/0B-Z0 (3 digits):
S202-x4/06/0x-001/0B-Z0 (4 digits):
S202-x5/06/0x-001/0B-Z0 (5 digits):
S202-x6/06/0x-001/0B-Z0 (6 digits):
o (overflow) will be indicated in case of a display overrange and u (underflow) in
case of a display underrange.
Signal voltage
The signal inputs D7...D1 are PLC-compatible and dimensioned for the following
signal voltages:
L-signal = -3.5...+5 V, H-signal = +18...30 V (active H)
Open input = L signal, M = reference potential
16
C2...C1
C3...C1
C4...C1
C5...C1
C6...C1
BAL S202 ZLR M0.22
