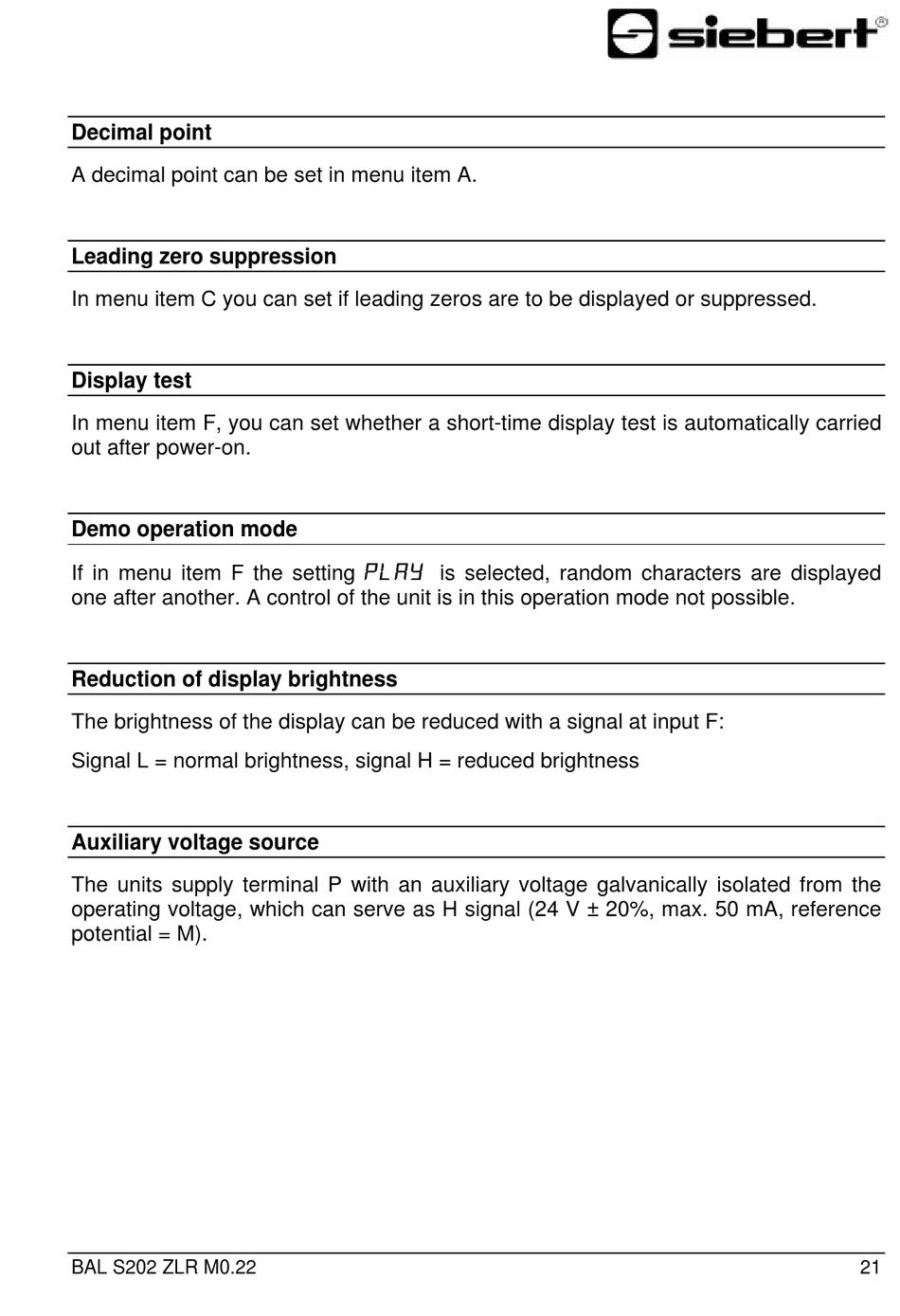

Decimal point
A decimal point can be set in menu item A.
Leading zero suppression
In menu item C you can set if leading zeros are to be displayed or suppressed.
Display test
In menu item F, you can set whether a short-time display test is automatically carried
out after power-on.
Demo operation mode
If in menu item F the setting PlAy is selected, random characters are displayed
one after another. A control of the unit is in this operation mode not possible.
Reduction of display brightness
The brightness of the display can be reduced with a signal at input F:
Signal L = normal brightness, signal H = reduced brightness
Auxiliary voltage source
The units supply terminal P with an auxiliary voltage galvanically isolated from the
operating voltage, which can serve as H signal (24 V ± 20%, max. 50 mA, reference
potential = M).
BAL S202 ZLR M0.22
21
