ENGLISH
These operating instructions are valid for units with the following type code:
S202-xx/06/0x-001/0B-Z0
The 'x's in the model designation indicate the size and design of the units (see
'Technical data').

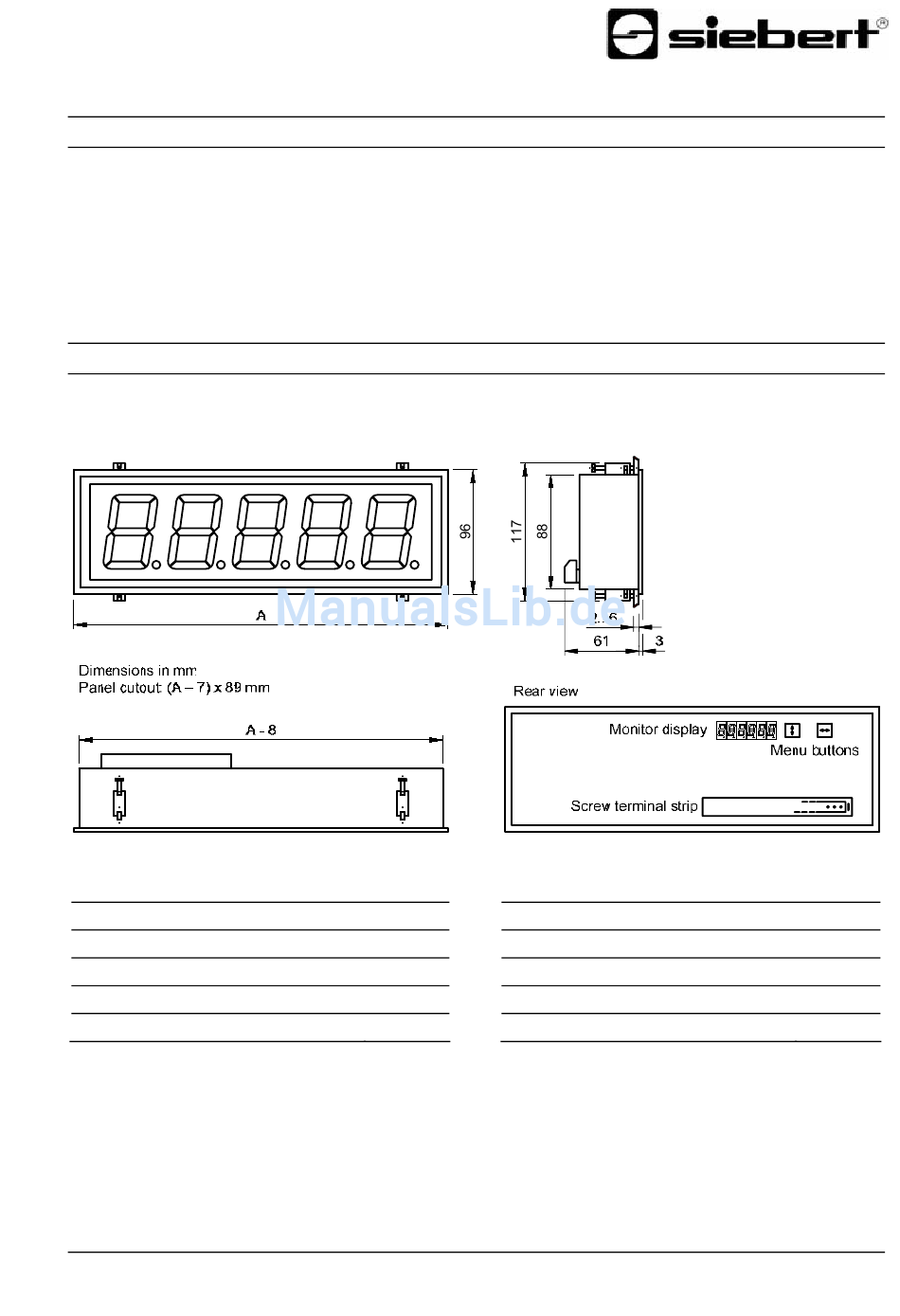

Dimensions
The following figure shows unit version S202-05/06/0x-001/0B-Z0, representing the
other unit versions listed in the following table.
Units without dimension symbol
S202-02/06/0x-001/0B-Z0
S202-03/06/0x-001/0B-Z0
S202-04/06/0x-001/0B-Z0
S202-05/06/0x-001/0B-Z0
S202-06/06/0x-001/0B-Z0
BAL S202 ZLR M0.22
A Units with dimension symbol
144 mm S202-F2/06/0x-001/0B-Z0
192 mm S202-F3/06/0x-001/0B-Z0
240 mm S202-F4/06/0x-001/0B-Z0
288 mm S202-F5/06/0x-001/0B-Z0
336 mm S202-F6/06/0x-001/0B-Z0
A
192 mm
240 mm
288 mm
336 mm
384 mm
