INSTALLATION

Install the device on a plane surface.

Connection with the mains

Connect the fixture to the mains with the power-plug.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
With the POWER-switch, you can switch the device on and off.

OPERATION

This unit has two operating modes. It can be run in Free-Function for counting entire amounts or in Batch-
Function for counting specific amounts.
Free-Function
Empty the coins to be counted into the Hopper. Press the START & STOP Key. The machine sorts the coins
and deposits them into the appropriate coin trays. The total amount can be seen on the keyboard display.
Additionally, if you would like to know how many coins were counted from each denominational value, then
press the REPORT-Key. The desired denominational value amount can be seen on the keyboard display.
You must press the REPORT-Key for every denominational value.
Press the C-Key to display the total amount again.
International
L
N
13/15

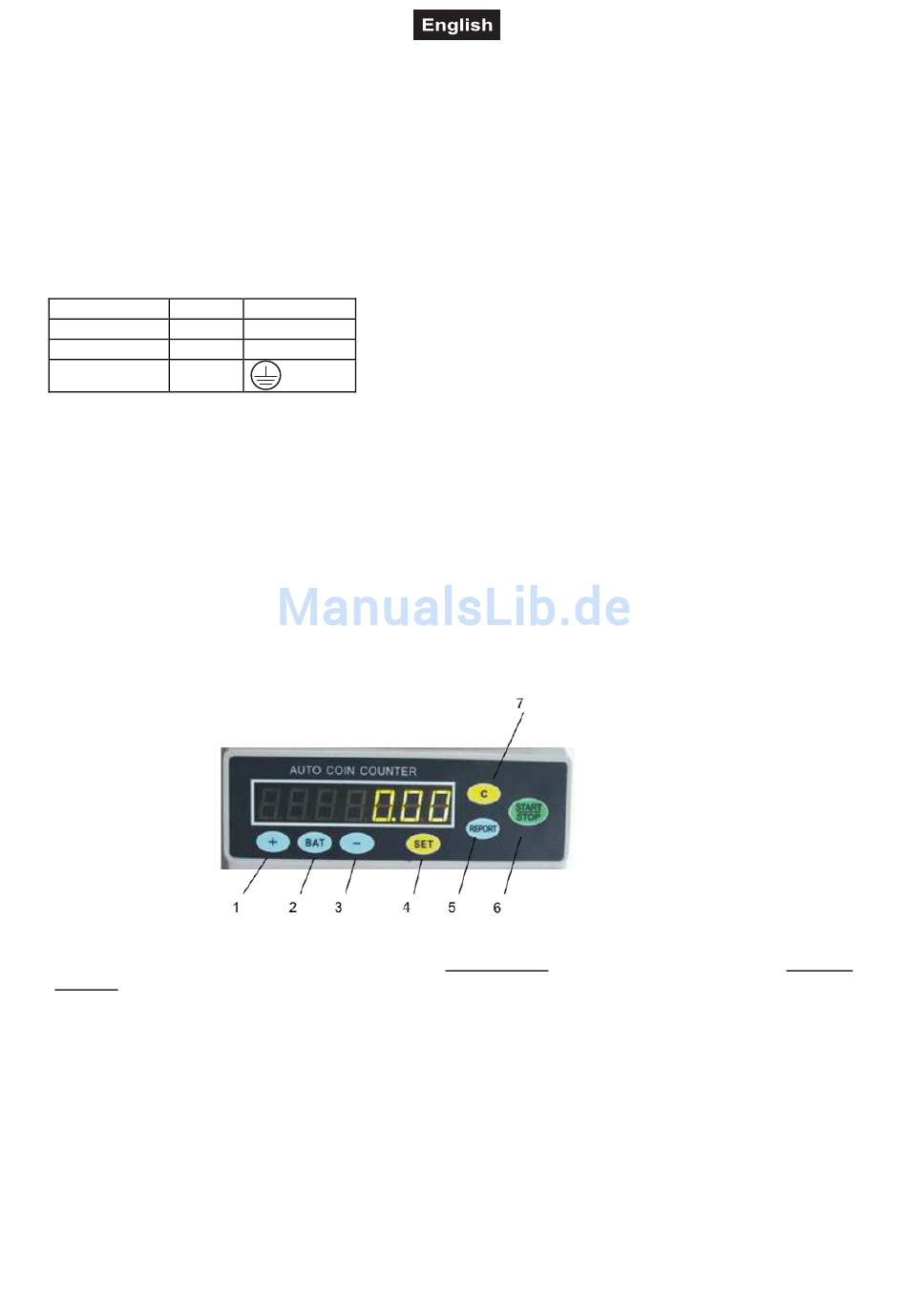

1. „ + „ Key
2. BAT-Key
3. „ - „Key
4. SET-Key
5. REPORT-Key
6. START & STOP-Key
7. C (Clear) Key
