// MOUNTING THE DERAILLEUR AND REAR WHEEL (SRAM TRANSMISSION)

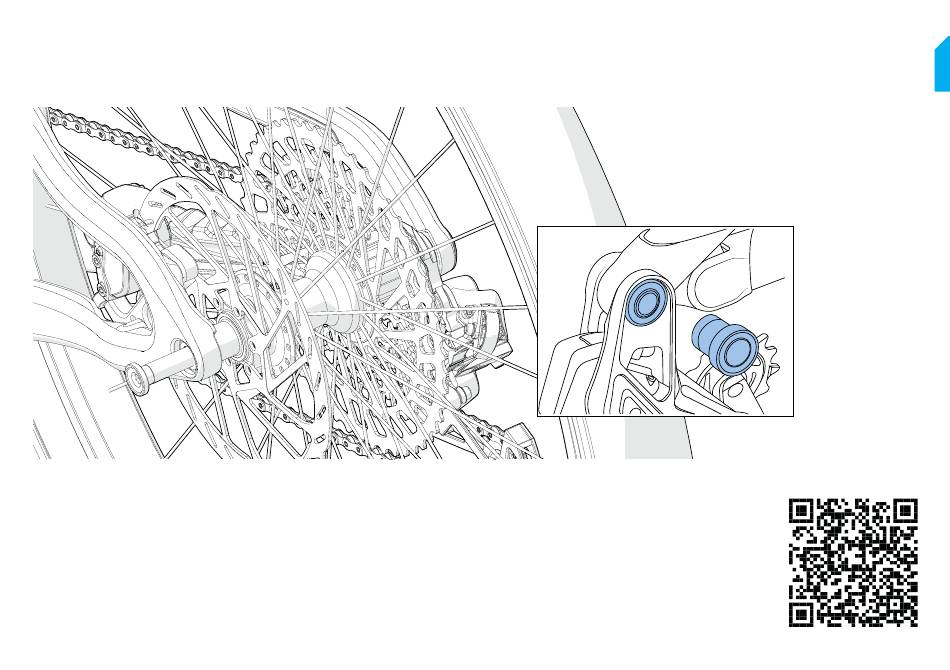

1. Attach the derailleur to the dropout of your bike.
2. Turn the derailleur screw all the way in and then back a full turn.
3. Insert the rear wheel into the dropout of the frame.
→ The brake rotor must be placed between the brake pads.
→ Put the chain on the red marked sprocket of the cassette.
4. Slide the thru axle from the brake side (left in the direction of travel) into the fork dropout and hub of the
wheel.
5. Turn the thru-release axle all the way in and then turn it back a full turn.
6. Follow the manufacturer' s instructions for further assembly and adjustment of the
SRAM Transmission rear derailleur.
Scan the QR code to be forwarded directly to the
Sram assembly instructions:
7. Tighten the thru axle with 12 Nm.
