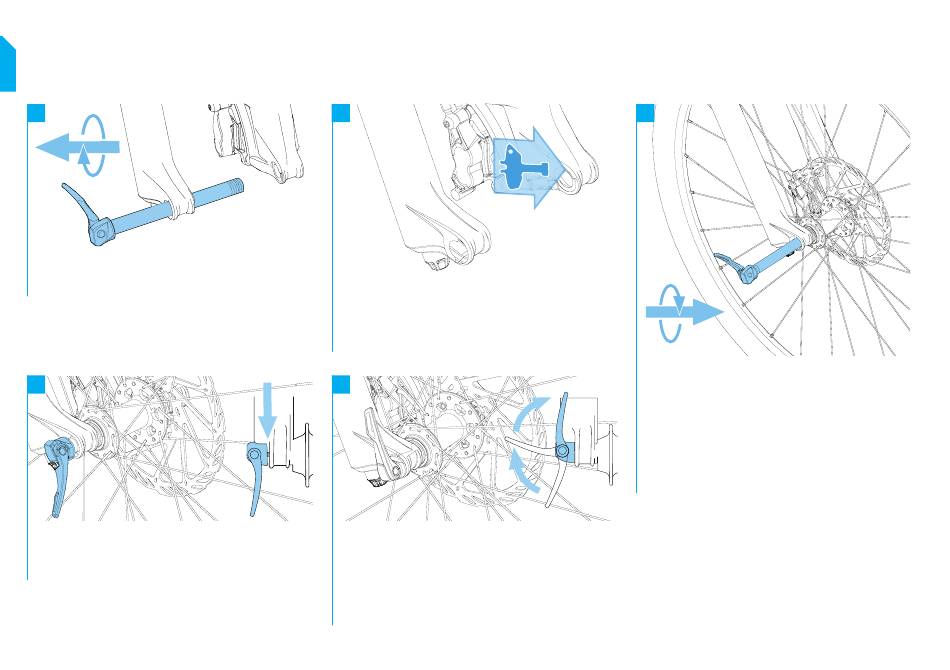

// MOUNTING THE FRONT WHEEL

Depending on the fork manufacturer, the thru axle must be pushed from the right or left through the dropout of the fork.
1
Remove the thru axle from the fork.
4
Turn the thru axle so far into the thread in the dropout that
only a small gap is visible between thru axle and dropout.
56
2
Remove the transport pad between the brake pads.
Store the transport securing device for future transport of
your bike.
5
Close the lever of the thru axle.
→ There must be no gap between the thru axle and the dropout.
→ Closing the lever should require an increasing amount of hand force until the lever is fully closed.
To increase the lever tension, open the lever and turn it clockwise. Close the lever to check the lever tension again.
Repeat the process until the tension is sufficient and then close the lever.
3
1. Put the front wheel into the dropouts of the fork. The
brake rotor must be placed between the brake pads.
2. Open the lever of the thru axle and slide the axle through
the non-drive side (left in riding) fork dropouts and hub
of the wheel.
