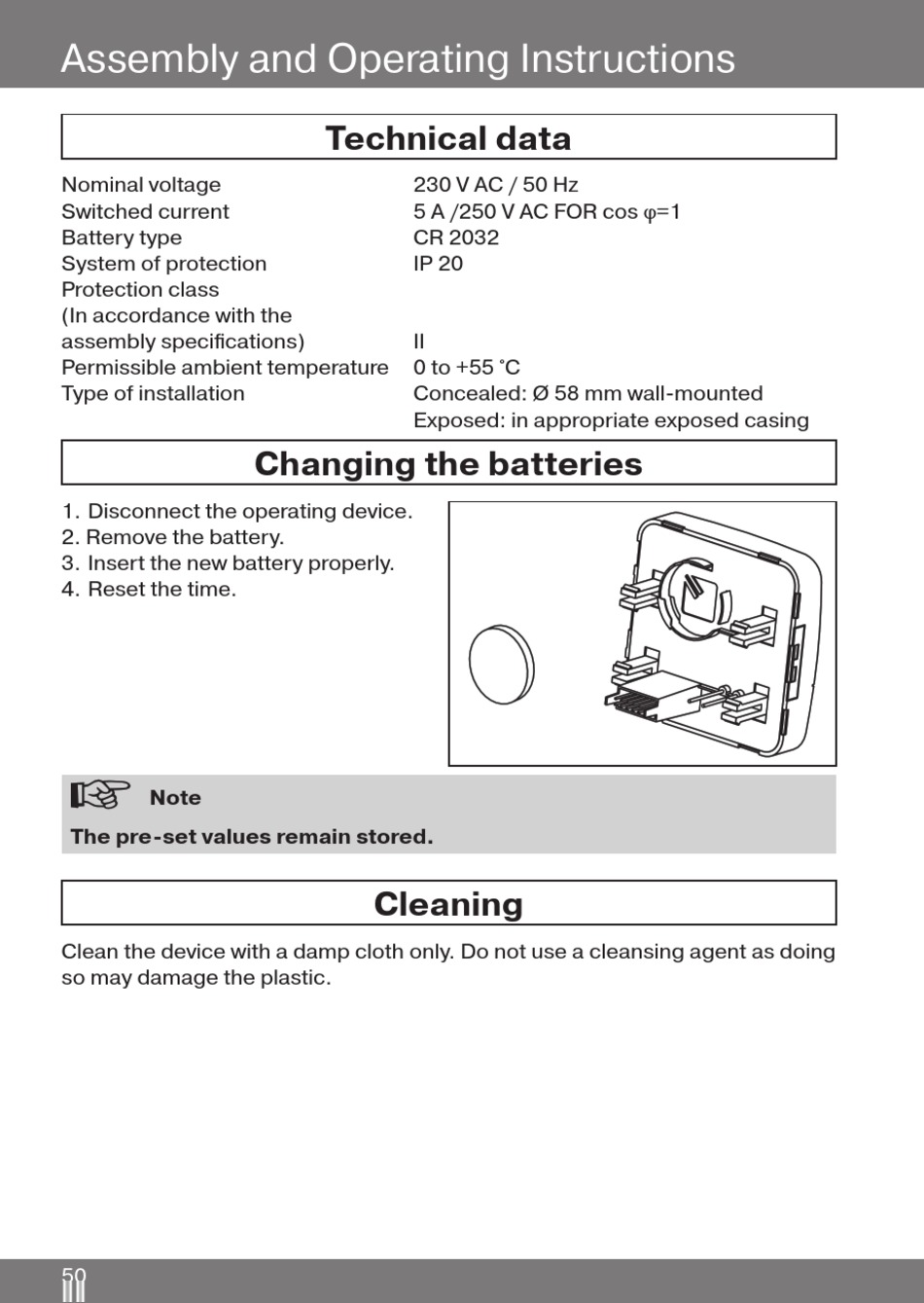

Assembly and Operating Instructions
Nominal voltage
Switched current
Battery type
System of protection
Protection class
(In accordance with the
assembly specifications)
Permissible ambient temperature
Type of installation
1. Disconnect the operating device.
2. Remove the battery.
3. Insert the new battery properly.
4. Reset the time.
Note
The pre-set values remain stored.
Clean the device with a damp cloth only. Do not use a cleansing agent as doing
so may damage the plastic.
50
Technical data
230 V AC / 50 Hz
5 A /250 V AC FOR cos ϕ=1
CR 2032
IP 20
II
0 to +55 °C
Concealed: Ø 58 mm wall-mounted
Exposed: in appropriate exposed casing
Changing the batteries
Cleaning
