UNIT A
Unit with left or right
port plugged
Mount Unit A always
on the most left posi-
tion, when left port is
plugged
Mount Unit A always
on the most right posi-
tion, when right port is
plugged

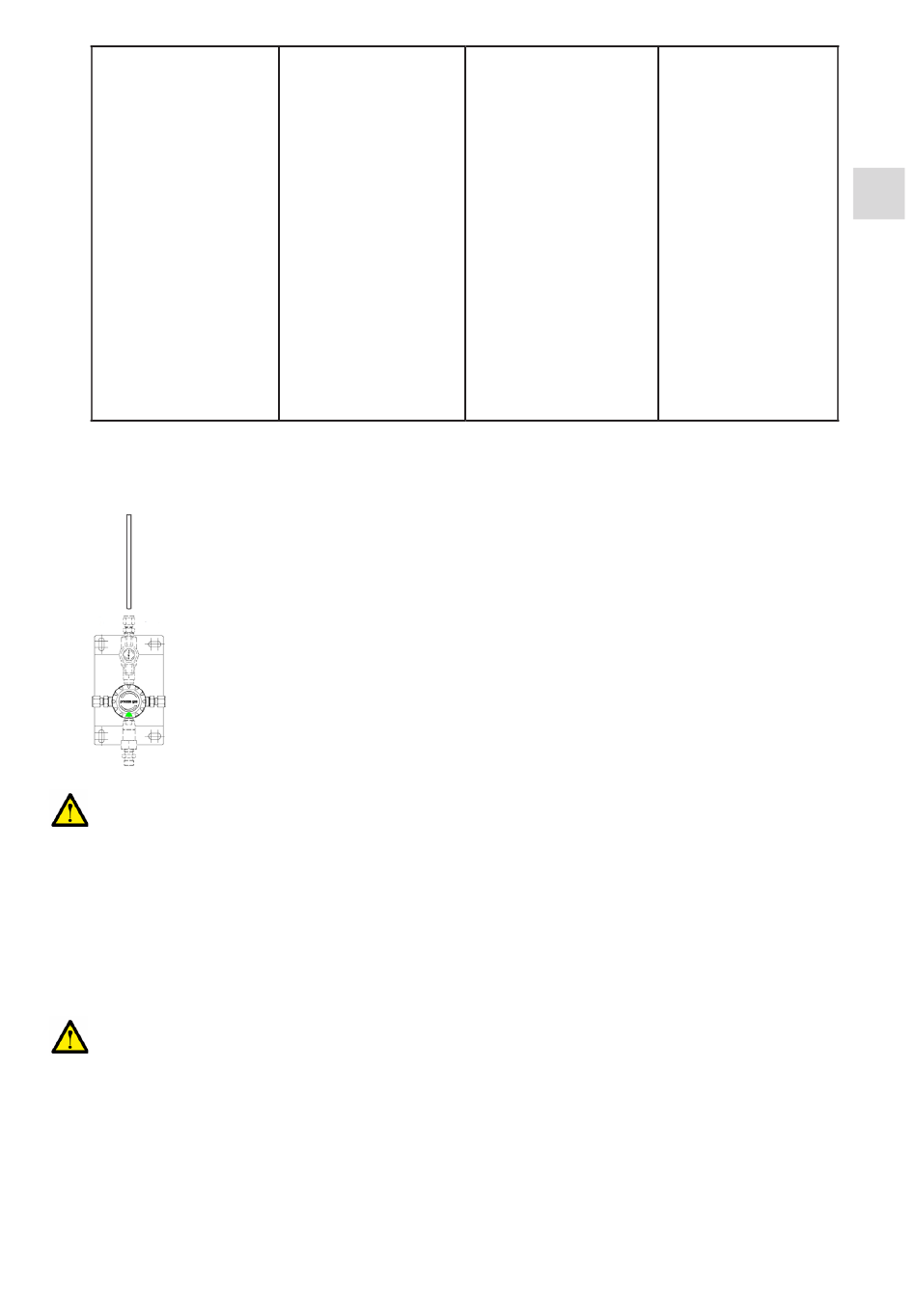

6.5.1. INSTALLATION OF VENT PIPING

Illustrations and images are served to ensure a basic understanding of the system and may differ from the
actual version.
Connections see point 6.4
Unit C
ATTENTION!
•
No tilting of the connections during assembly
•
Earthing, fuse protection, measurement of the electrical installation by certified company
•
Installation of vent piping
After the installation perform leakage test with low pressure before operation.
If there is no leakage perform pressure test with working pressure.

7. OPERATION

BEWARE!
•
Valves must always be opened slowly and carefully to prevent pressure surges in the system and damage
to other components!
UNIT B
Unit with shut-off valve
or cross piece
NEVER mount on the
most left position (Ex-
tension Header Rail for
left side)
NEVER mount on the
most right position
(Extension Header Rail
for right side)
17/40
UNIT C
Unit with vent valve
Mount Unit C as first
Unit next to gas supply
manifold, when you
have no Unit with gauge
(Unit D)
Mount Unit C as second
next to gas supply mani-
fold, when you have
Unit with gauge (Unit D)
NEVER mount on the
most right position
(Extension Header
Rail for right side)
UNIT D
Unit with gauge or
pressure transmitter
Mount Unit D always
as first Unit next to
gas supply manifold
(Extension Header Rail
for right or left side)
NEVER mount on the
most right position
(Extension Header
Rail for right side)
