DEPRESSURIZE
•
Depressurize components and purge with inert gas if necessary
•
Cut tubing with special tool; avoid contaminations (dirt, cuttings, etc.)
•
Check perfect condition of components and purity of connections

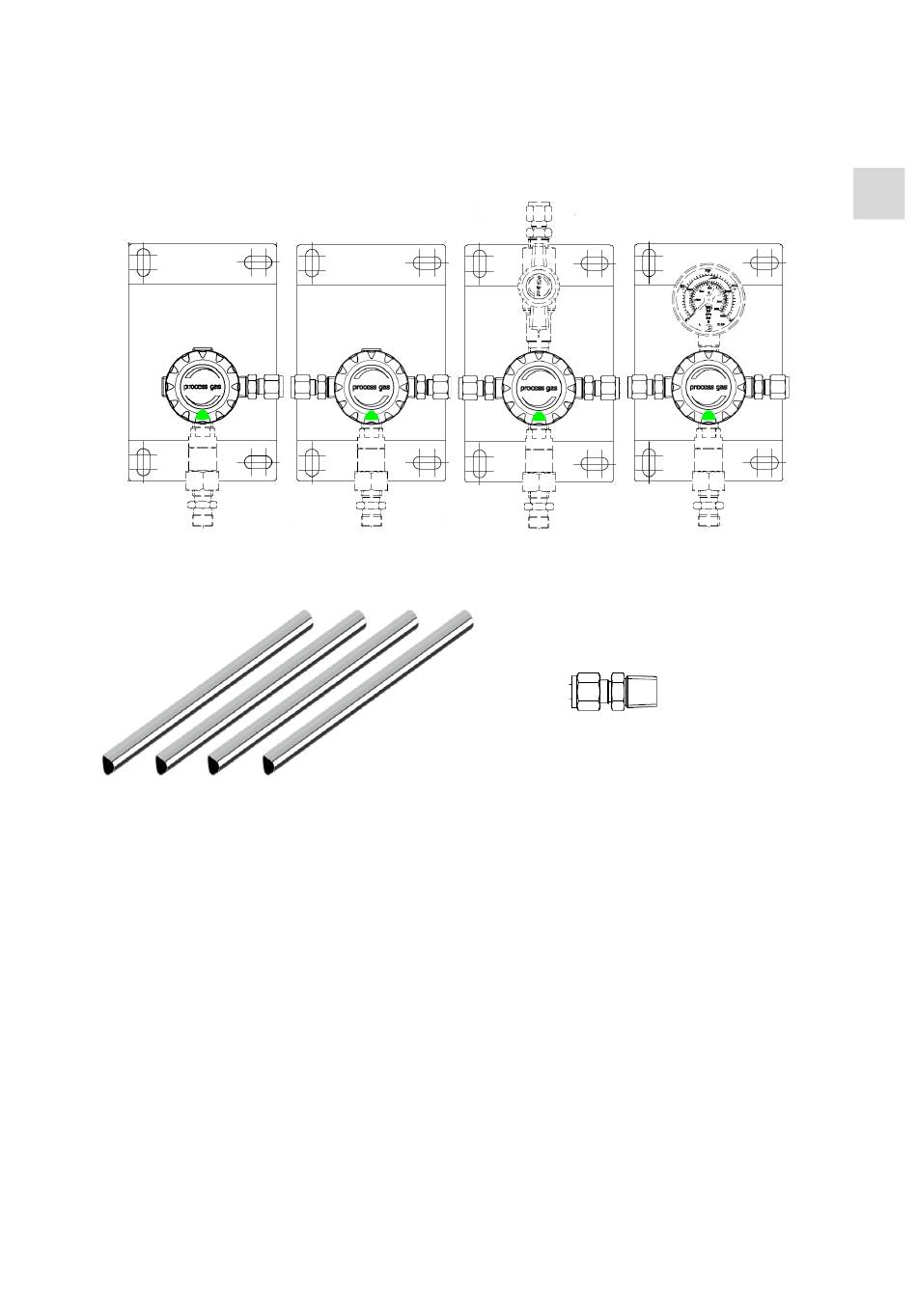

6.3. PREPARATION AND SCOPE OF DELIVERY

Illustrations and images are served to ensure a basic understanding of the system and may differ from the
actual version.
Unit A
Remove plastic caps from tubing!
Tube Length
L030 – 300 mm
L100 – 1000 mmm
Quantity Tubes & Units
Extension Level 1 – 1 Tube, 1 Unit -> 2 Process Inlets
Extension Level 2 – 2 Tubes, 2 Units ->3 Process Inlets
Extension level 3 – 3 Tubes, 3 Units -> 4 Process Inlets
Extension Level 4 – 4 Tubes, 4 Units -> 5 Process Inlets
Unit B Unit C
15/40
Unit D
1x Fitting for Process Outlet Connection N14M
