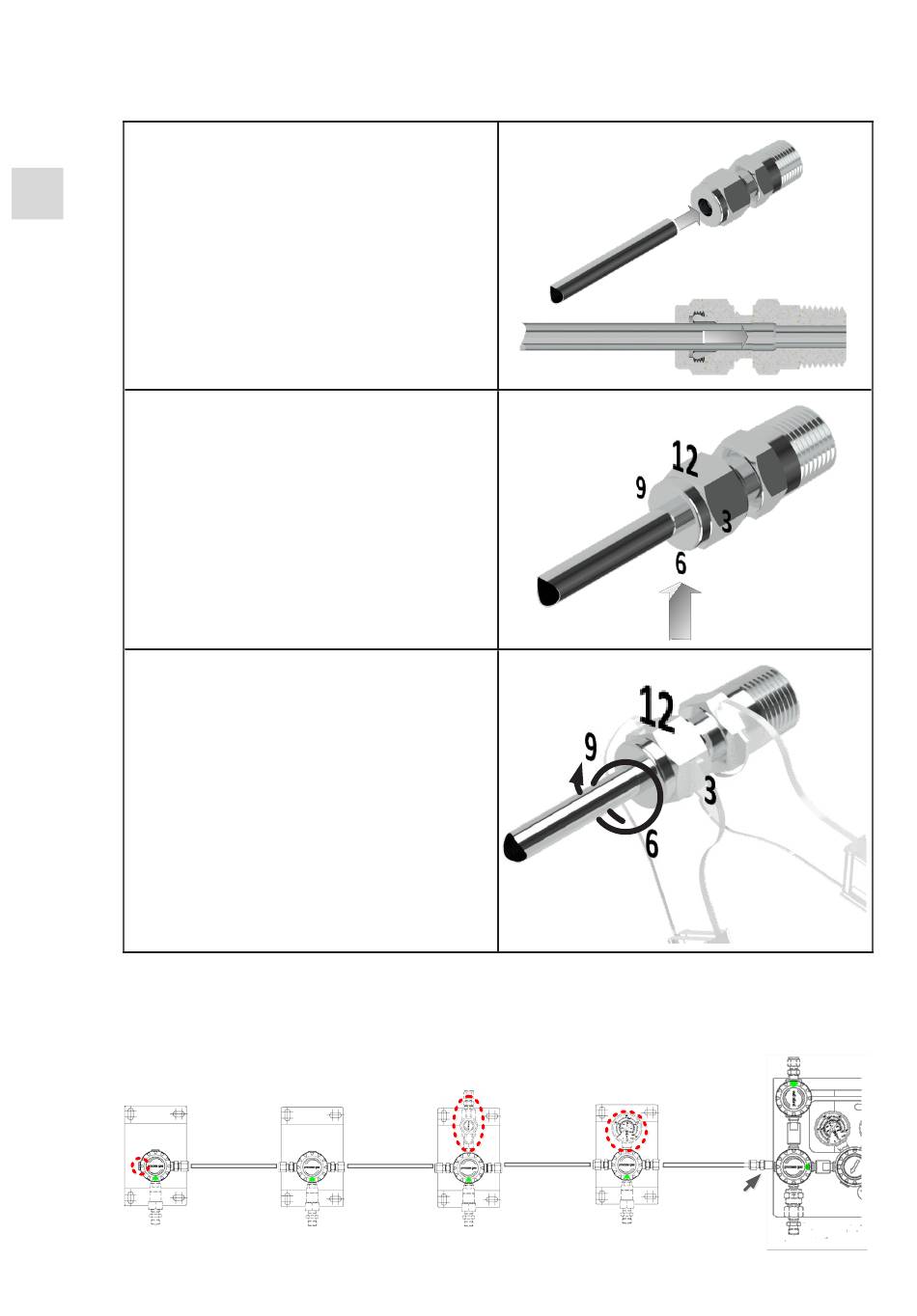

6.4. INSTALLATION OF TUBING AND FITTINGS
Illustrations and images are served to ensure a basic understanding of the system and may differ from the
actual version.
Insert the tube into the tube fitting until it rests on
the shoulder; tighten the nut finger tight.
High pressure applications with high safety factor:
EN
Tighten the nut until the tube can no longer be
turned by hand or cannot be moved axially in the
fitting.
Mark the nut at the 6 o'clock position.
Hold the body of the fitting and tighten the nut to
the 9 o'clock position by 1 ¼ turns (first installation
1 1/4 turns for tubes bigger than 1/8 inch and 3/4
turns for 1/8 inch and smaller tubes, retightening
1/4 for all tubes).
6.5. INSTALLATION
Illustrations and images are served to ensure a basic understanding of the system and may differ from the
actual version.
Connections see point 6.4
Unit A
Unit C
Unit B
16/40
Fitting for
Process
Connection
Unit D
N14M
