5.2 • Mounting of the side channels onto the mounting feet
1
Mounting foot single screen
2
➀
➁

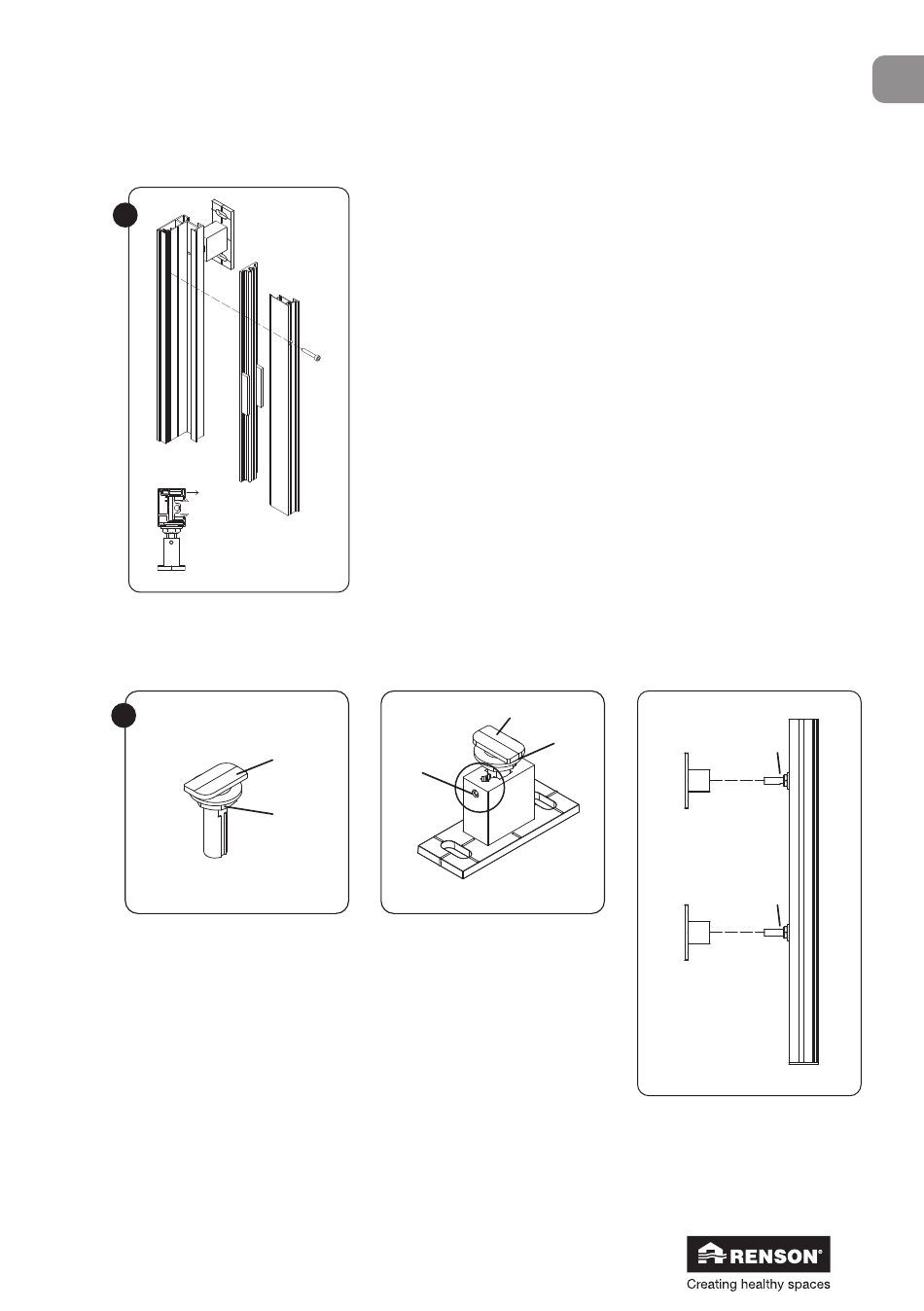

Define and mark the position
of the mounting feet on the
side channel.
Mount the T-piece ➀ on the
side channel and fixate the
nut ➁ loosely using a flat
wrench no. 19.
Fixscreen
Demount the 2-part side channels. Use a no.3 Allen key to
unscrew the front part of the side channels.
First install one side channel before installing the second one.
This to ensure a perfectly leveled system.
➀
➁
➂
Slide the T-piece (fixed into
the side channel) into the
mounting foot. Ensure that
the remaining T-pieces stay
fixed into the side channel.
Use no.3 Allen key to fix
the T-piece loosely ➂ on the
desired distance between
the structure and the side
channel.
150 (F)
®
➀
➀
