3.2 • Installation of the side guiding channels
3.2.1 • Preparation
• Demount the 3-part side guiding channels and in case of a coupled screen also the coupling
side guiding channel.
• Use a Torx key T20 to unscrew the removable profile of the side guiding channels.

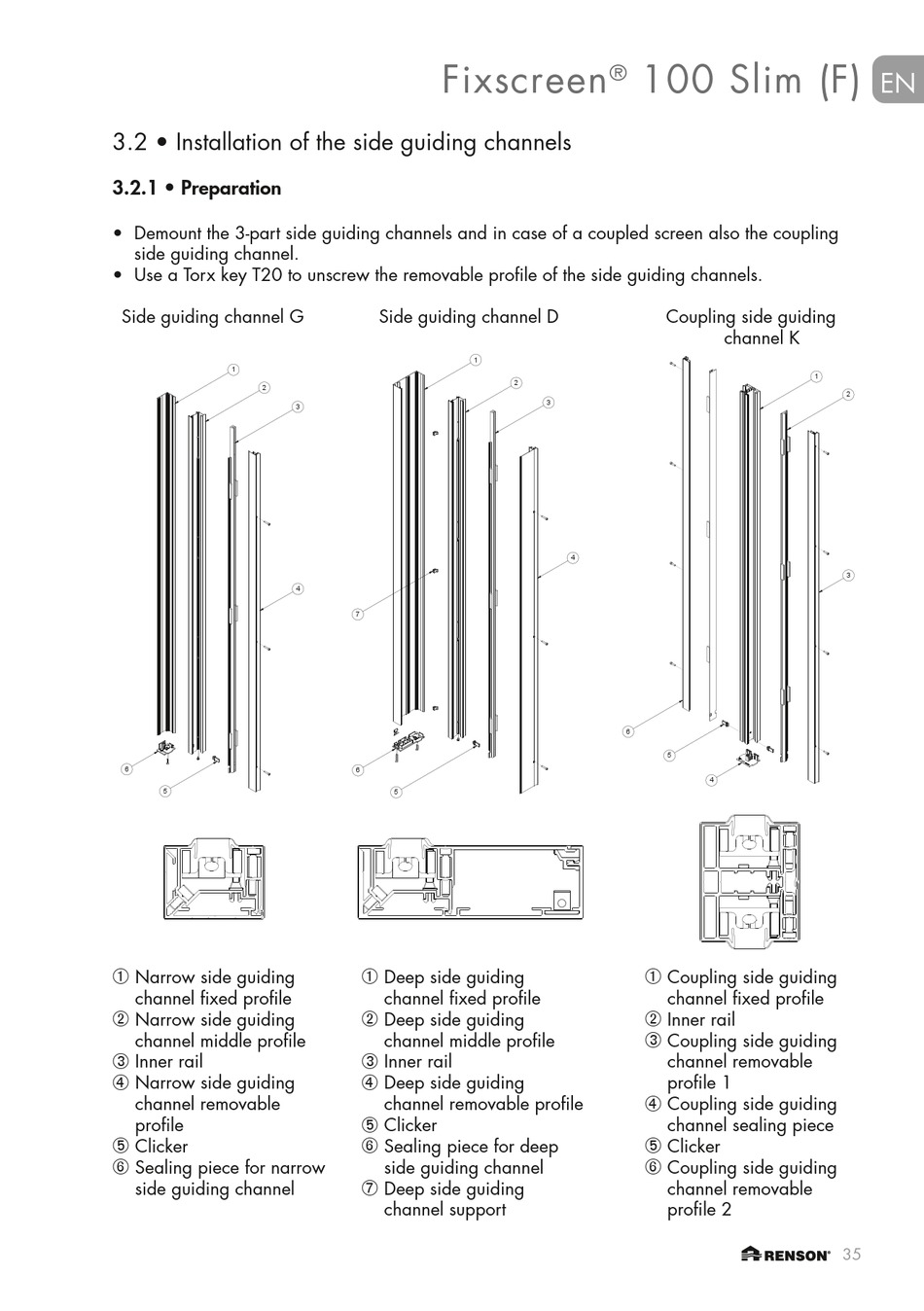

Side guiding channel G
1
2
6
5
➀ Narrow side guiding
channel fixed profile
Narrow side guiding
➁
channel middle profile
➂ Inner rail
Narrow side guiding
➃
channel removable
profile
Clicker
➄
Sealing piece for narrow
➅
side guiding channel
Fixscreen
Side guiding channel D
3
4
7
6
5
➀ Deep side guiding
channel fixed profile
Deep side guiding
➁
channel middle profile
➂ Inner rail
Deep side guiding
➃
channel removable profile
Clicker
➄
Sealing piece for deep
➅
side guiding channel
Deep side guiding
➆
channel support
100 Slim (F)
®
1
2
3
4
6
➀
➁
➂
➃
➄
➅
Coupling side guiding
channel K
1
5
4
Coupling side guiding
channel fixed profile
Inner rail
Coupling side guiding
channel removable
profile 1
Coupling side guiding
channel sealing piece
Clicker
Coupling side guiding
channel removable
profile 2
