Start a real-time measurement
Adjust the settings:
Click on "Real Time(R)" in the menu bar and select "Setup(U)".
1.
2.

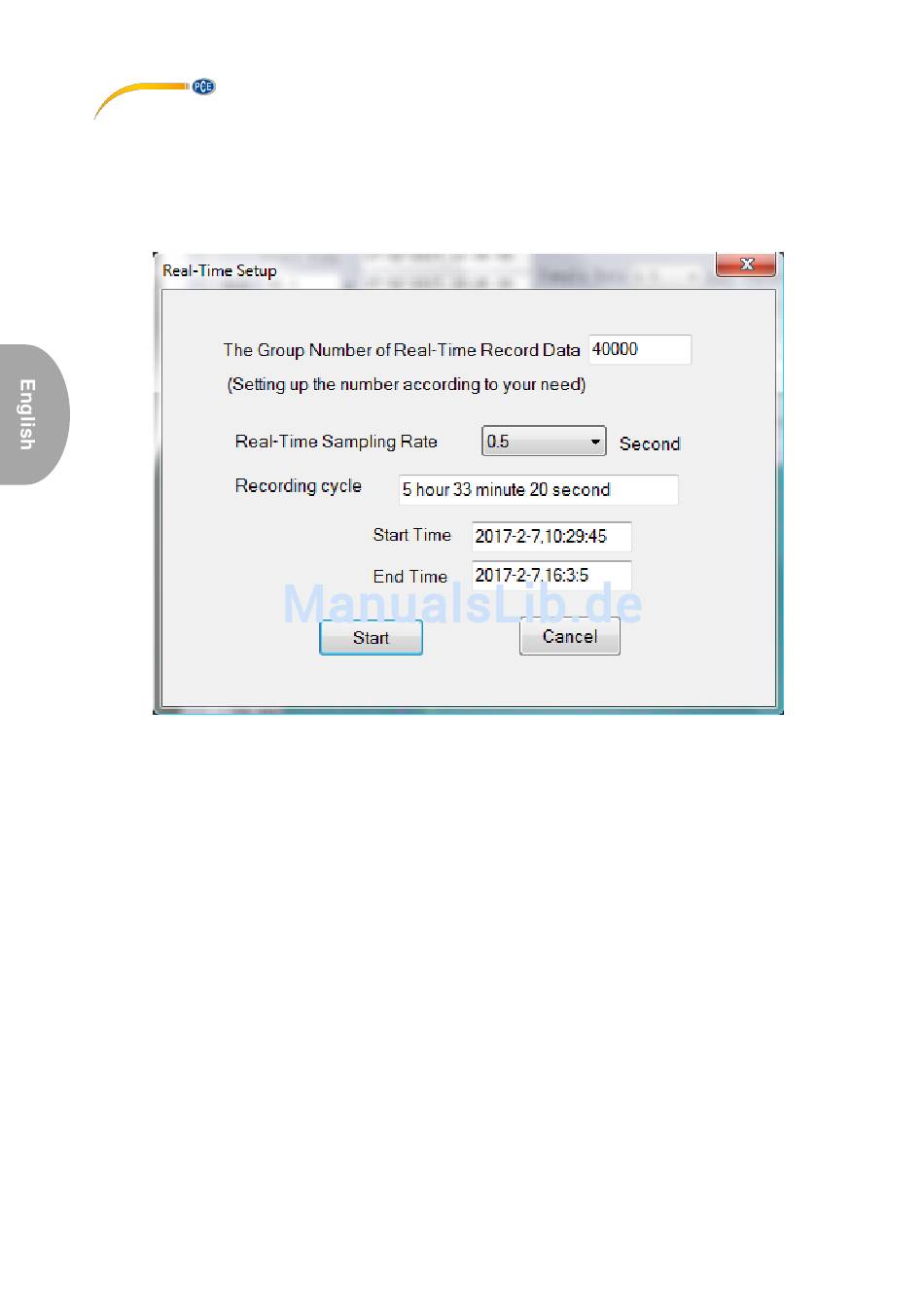

The following window appears:
Here you can set the number of measurements ("The Group Number of Real-Time
Record Data") and the sampling rate ("Real-Time Sampling Rate"). The software
calculates the measuring duration, start and end time depending on the settings.
Click on "Start" to start the real-time measurement.
3.
Start the real-time measurement:
Click on "Real Time(R)" in the menu bar and select "Run(R)" or click on the start
1.
symbol (lightning) below the menu bar. The real-time measurement starts with the last
saved settings. The data is shown as a real-time graph. There is also additional
information in the real-time measurement information display (2), such as MIN/MAX
values and average value.
Click on "Real Time(R)" in the menu bar and select "Stop(S)" or click on the stop
2.
symbol below the menu bar to stop the real-time measurement.
© PCE Instruments
27
