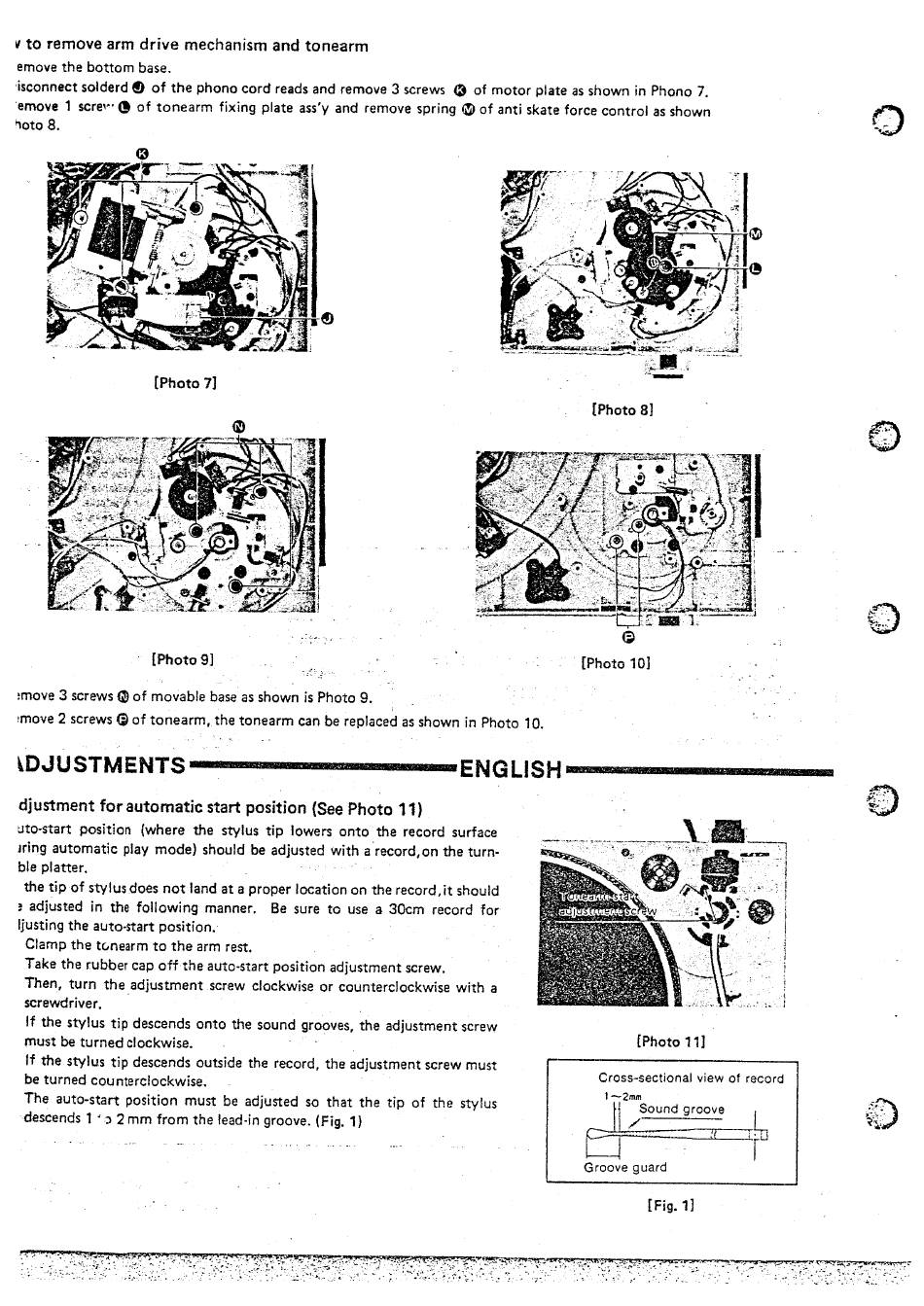

Technics SL-D33 Service Manual Seite 4

to remove arm drive mechanism
emove the bottom base.
isconnectsolderdO of the phonocord readsand remove3 screws
e emov I scree' of tonearm fixing plate ass'yand removespring O of anti skateforce control asshown
hoto 8.
[Photo 7)
(Photo 9)
move 3 screws of movable base as shown is Photo 9.
'move2 screws of tonearm, the tonearm canbe replacedasshownin Photo 10.
IDJUSTMENTS
djustmentfor automaticstartposition(SeePhoto11)
uto•start position (where the stylus tip lowers onto the record surface
ring automatic playmode) shouldbe adjustedwith a record,onthe turn.
ble platter.
the tip of stylusdoesnot land at a properlocation on the record,it should
adjusted in the following manner. Be sure to use a 30cm record for
Ijusting the auto-start position.
Clamp the tonearm to the arm rest.
Takethe rubbercapoff the auto-startposition adjustmentscrew.
Then, turn the adjustment screwclockwiseor counterclockwisewith a
screwdriver.
If the stylustip descends o nto thesoundgrooves, t he adjustment screw
must be turned clockwise.
If the stylus tip descends outside the record,the adjustmentscrewmust
be turned counterclockwise.
Th e start auto- positionmustbe adjusted so that the tip of the stylus
descend s I 2mmfrom the lead-in groove. ( Fig.I)
and tonearm
of motor plate asshownin Phono7.
(Photo 8]
[Photo 10]
ENGLISH
Cross-sectional
I —2mm
Groove guard
[Photo 111
view of record
Sound groove
[Fig. 1]
