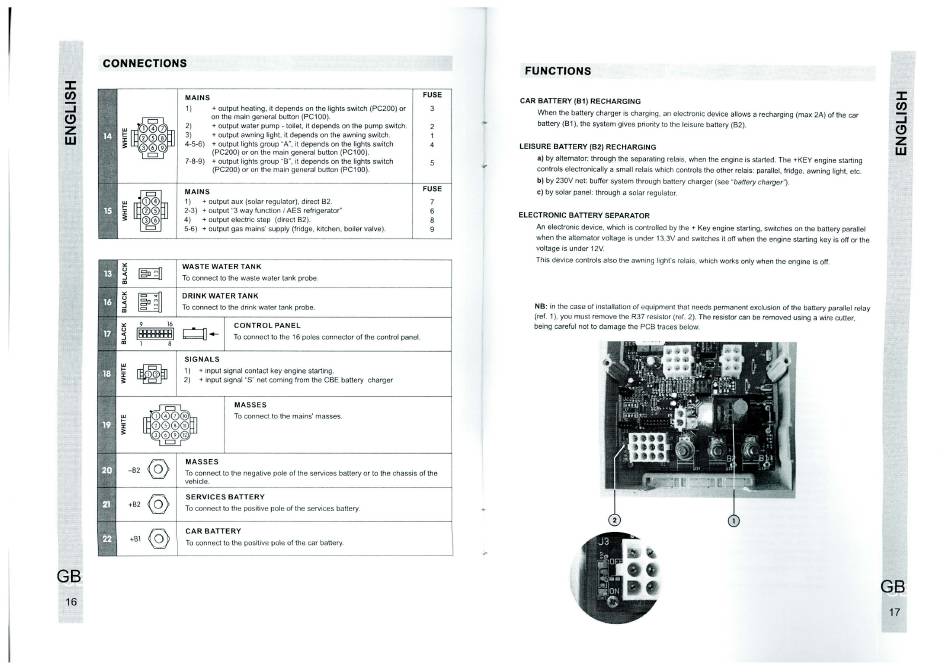

CONNECTIONS
CD
MAINS
1) + output heating. it depends on the lights switch (PC200) or
on the main general button (PCIOO).
2) + output water pump - toilet, it depends on the pump switch.
.000.
z
3) + output awning light. it depends on the awning switch.
ooo
4-5-6) + output lights group "A". it depends on the lights switch
(PC200) or on the main general button (PCl 00).
7-8-9) + output lights group "B", it depends on the lights switch
(PC200) or on the main general button (PCl 00).
MAINS
00
I) + output aux (solar regulator), direct B2.
oo
2-3) + output "3 way function / AES refrigerator"
00
4) + output electric step
5-6) + output gas mains' supply (fridge, kitchen, boiler valve).
WASTE WATER TANK
To connect to the waste water tank probe.
DRINK WATER TANK
16
To connect to the drink water tank probe.
9 16 CONTROL
To connect to the 16 poles connector of the control panel.
SIGNALS
1) + input signal contact key engine starting.
2) + input signal "S" net coming from the CBE battery charger
MASSES
To connect
0000
MASSES
20
To connect to the negative pole of the services battery or to the chassis of the
vehicle.
SERVICES BATTERY
o
+82
To connect to the positive pole of the services battery.
CAR BATTERY
o
To connect to the positive pole of the car battery
16
FUSE
3
2
4
5
FUSE
6
(direct B2).
9
PANEL
to the mains' masses.
FUNCTIONS
CAR BATTERY (Bl) RECHARGING
Whenthe batterychargeris charging, a n electronic deviceallowsa recharging (max2A)ofthe car
battery(Bl the systemgivespriorityto theleisurebattery(32).
LEISURE BATTERY(82) RECHARGING
a) byaltemator: through theseparating relais, w hentheengine isstarted. The*KEYengine starting
controlselectronically a smallrelaiswhichcontrolsthe otherrelais:parallel.fridge.awninglight,etc,
b) by230Vnet:buffersystemthroughbatterycharger(see-batterycharger').
c) by solar panel: through a solar regulator.
ELECTRONIC BATTERY SEPARATOR
Anelectronic device, which is controlled b ythe+Keyengine starting. switches o nthebattery parallel
whenthealternator voltage is under 1 3.3V andswitches i t offwhen theengine starting keyis offorthe
voltage is under 12V.
Thisdevicecontrolsalsotheawninglight'srelais,whichworksonlywhenthe engineis off.
NB:in the caseof installation of equipment t hatneedspermanent exclusion of the batteryparallelrelay
(ref. 1).youmustremovethe R37resistor(ref.2).Theresistor c anbe removedusinga wirecutter.
being careful not to damage the PCB traces below.
