FUNCTIONS
MINIMAL VOLTAGE CONTROL
An electronicdeviceswitchesall the 12V mains off,when the leisurebatteryreachesthe minimalvoltage
level of IOV.It is possibleto switchon againall
o
the main switch.
z
They are also autcmatlcally switdned on again Vhen the vdtage is > 12V.
The fndge. the electrical step and the mains powered directly from 32 are excluded from this device.
DRINK WATER TANK REFILLING (only for "PC200")
This function is used during the drink water tank refilling and it shows the level reached by the water.
You switch on this function by visualizing the drink water tank and by keeping pushed the tank switch for
more than 3 seccnls.
When this function is you see getting lightened, in sequence, the honzontal segments of the number ref.
18 and the panel emits sounds in order to wam that the tank is getting filled:
1 short sound at 75%, 2 short sounds at 85% and 1 long sound at 95%,
ELECTRONIC TANKPROBE (only for "PC200")
The electronic tankprobe mod. "SPE" is a capacitive tankprobe. It is powered with 5V and a back-signal
from O to 2,5V.
Each 8 seconds the microprocessor gives power to the tankprobe; it is also powered each time you push
the tank-test button. This was studied in order to avoid useless consumption.
TEMPERATURE (only for "PC200")
- Internal and external temperatures are measured through sensors which are placed inside and outside of
the vehide.
- The measuring precision is ± 1•C.
CLOCK (only for "PC200")
When one switches on the panel, the time gets displayed; after every test-funcüon the time gets displayed
again.
In order to set the dock, keep pushing for 2 secs the test button ref. 1 while the time gets displayed. The
hours' digits start blinkng and by pushing the test buttons ref. 2 e ref. 3 one can modify their value.
By pushing the test button ref. 1 agatn. one can start setting the minutes' digits.
By pushingthe test buttonref. 1 for the thirdtime,one confirmsthe dock setting.
SETUP (only for "PC200")
To enter the programmation menu tum on the control panel with the switch ref. 5 while keeping pushed the
buttc_ns ref. 2 and 3.
The progammabon is sequential: to shift to the next parameter push the button ref. 1.
1. Voltrneter Bl. With the buttcns ref. 2 and 3 one can rnodify the displayed value in 0.2V steps
2. Vdtmeter B2. With the buttcns ref. 2 and 3 one can modify the displayed value in O, I V steps
3. Amperemeter B2 (NC).
4. Internal temperature. With the buttons ref. 2 and 3 one can modify the displayed value in O,50Csteps
5. External temperature. With the buttons ref. 2 and 3 one can modify the displayed value in O,50Csteps
Pushing again the button ref. 1 you exit the programmation menu.
14
mainsfor 1 minuteby switchingoff and then on again

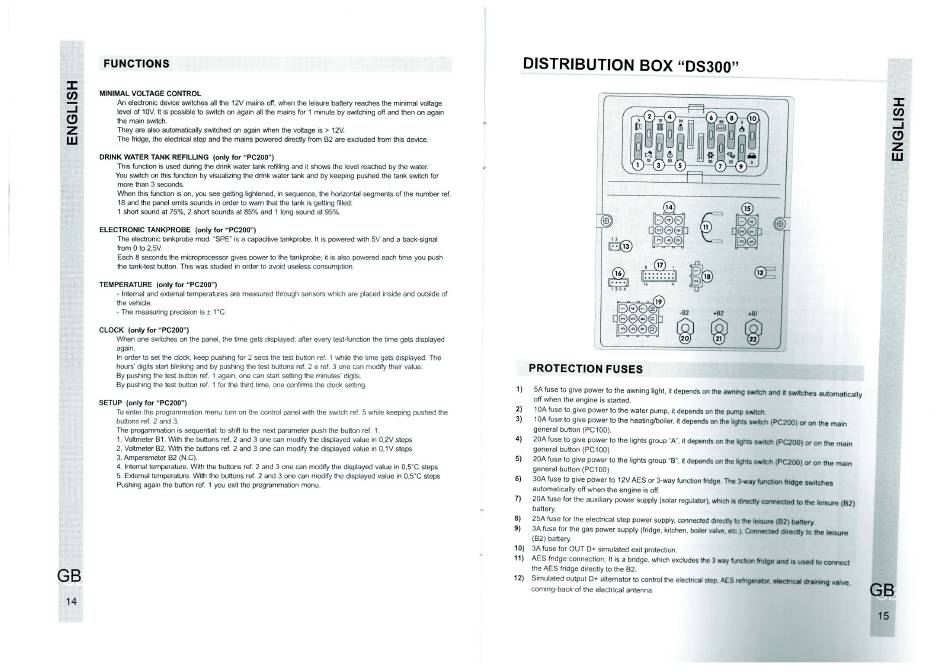

DISTRIBUTION BOX "DS300"
ooo
14
• 13
17
16
19
PROTECTION FUSES
1) 5A fuse t ogive p ower tothe awning light, itdepends
off when the engine is started.
2)
IOAfuseto givepowerto thewaterpump, i t depends onthepump switch
3) IOA fuse togive power totheheating/boiler, itdepends onthe
general button (PCIOO).
4)
20A fuse togive power tothelights g roup " A' , itdepends ontvebghts switch ( PC200) oronthemain
general button (PCIOO)
5) 20A fuse togive power tothelights g roup itdepends ontte
general button (PCIOO)
6) 30A fuse togive power to12V AES or3-way function fridge. The 3-way futctü' fridge switetes
automaticallyoff when the engine is off.
7) 20A fuse forthe auxiliary power supply (solar regulator),
battery.
8)
25A fuse fortheelectrical step power supply, connected
3Afuse forthegas power supply ( fridge, kitchen. boder valve. etc.L
9)
(B2) battery
10) 3A fuse for OUT D+ simulatedexit protection.
11) AES fridgeconnection; Itisa bridge. which excludes the3way
the AES fridge directlyto the B2.
12) Simulated output D+alternator tocontrol theelectrical step. AES
coming-back of the electrical antenna.
10
15
12
on switch and itswitches autornatically
switch ( PC200) or themain
switch ( PC200) oronthemain
which is&ecty comected totheletsure (82)
directly tothe letS're ( 82) b attery.
drecøy t otheletsure
andisused comect
&ctnd valve.
15
z
