Charge level indicator:

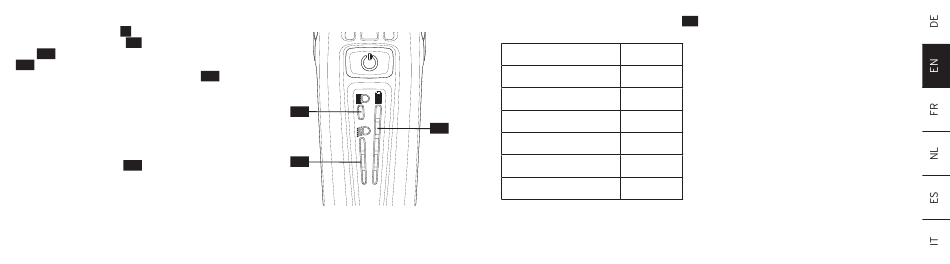

The top of the headlamp features the battery capacity
1
and charge level indicator 3.1 , the high beam indicator
light 3.2 and the light level and charging power indicator
3.3 .
The light level and charging power indicator
which light level (1st LED: low power, 1st + 2nd LED: mid
power, 1st - 3rd LED: high power) is activated or at what
intensity (1st LED: < 1 A charging current, 1st + 2nd LED: > 1
A charging current, 1st - 3rd LED fast charging function, 1st
+ 3rd LED lit + 2nd LED flashing: comfort charging function
activated) charging is taking place.
High beam indicator light illuminates blue when the
3.2
high beam function is activated.
36
3.3 shows
3.2
3.3
Battery capacity and charge level indicator
Battery capacity indicator divided into 4 sections, each representing 20%.
Number of LEDs lit
5 blue
4 blue
3 blue
3.1
2 blue
1 blue
1 blue + 1 red
3.1 :
Capacity:
80–100 %
60–80 %
40–60 %
20–40 %
10–20 %
< 10 %
