6.2. Headlight alignment
WARNING Do not use the bicycle if the light beam of your headlight
the headlight 1 is too loose. Blinding oncoming traffic can cause accidents. Before aligning the
bicycle headlight 1 , loosen the bracket retaining screw first. Make sure to retighten this screw again
afterwards.
WARNING Never adjust the light range of your headlight
serious falls and injuries.
WARNING Never look directly into the light of the bicycle headlight
Attention: Ensure a non-blinding orientation of the beam pattern

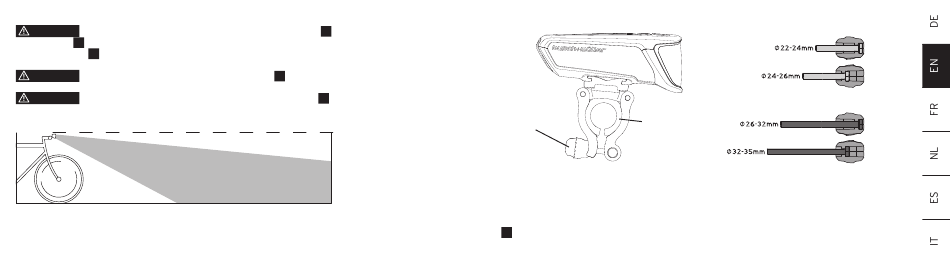

Image: correct beam orientation with light switched on
30
is misaligned or
1
1 while cycling! This may result in
when switched on.
1
Beam cut line
6.3. Installation instructions IXON Core highbeam
locking rubber ring
barrel
Place the rubber ring provided around the handlebar. Select the locking screw to fit the handle-
bar diameter and push it into the suitable end of the locking barrel (also according to Handlebar
diameter). Insert the attachment cylinder into the bracket axle and screw the remaining open end
of the locking screw into the thread of the cylinder. Place the handlebar bracket over the rubber
ring on the handlebar with the locking barrel facing the saddle. Position the legs of the bracket
2 around the rubber ring and screw the barrel into the retaining hollow on the rear leg. Tighten
until a secure clamping is attained.
Short screw (30 mm)
Kurze Schraube (30 mm) Kurze Schraube (30 mm)
Long screw (55 mm)
Lange Schraube (55 mm) Lange Schraube (55 mm)
