Maintenance.

ONLY A QUALIFIED TECHNICIAN CAN INSTALL, ADJUST AND MAINTAIN THIS HAND

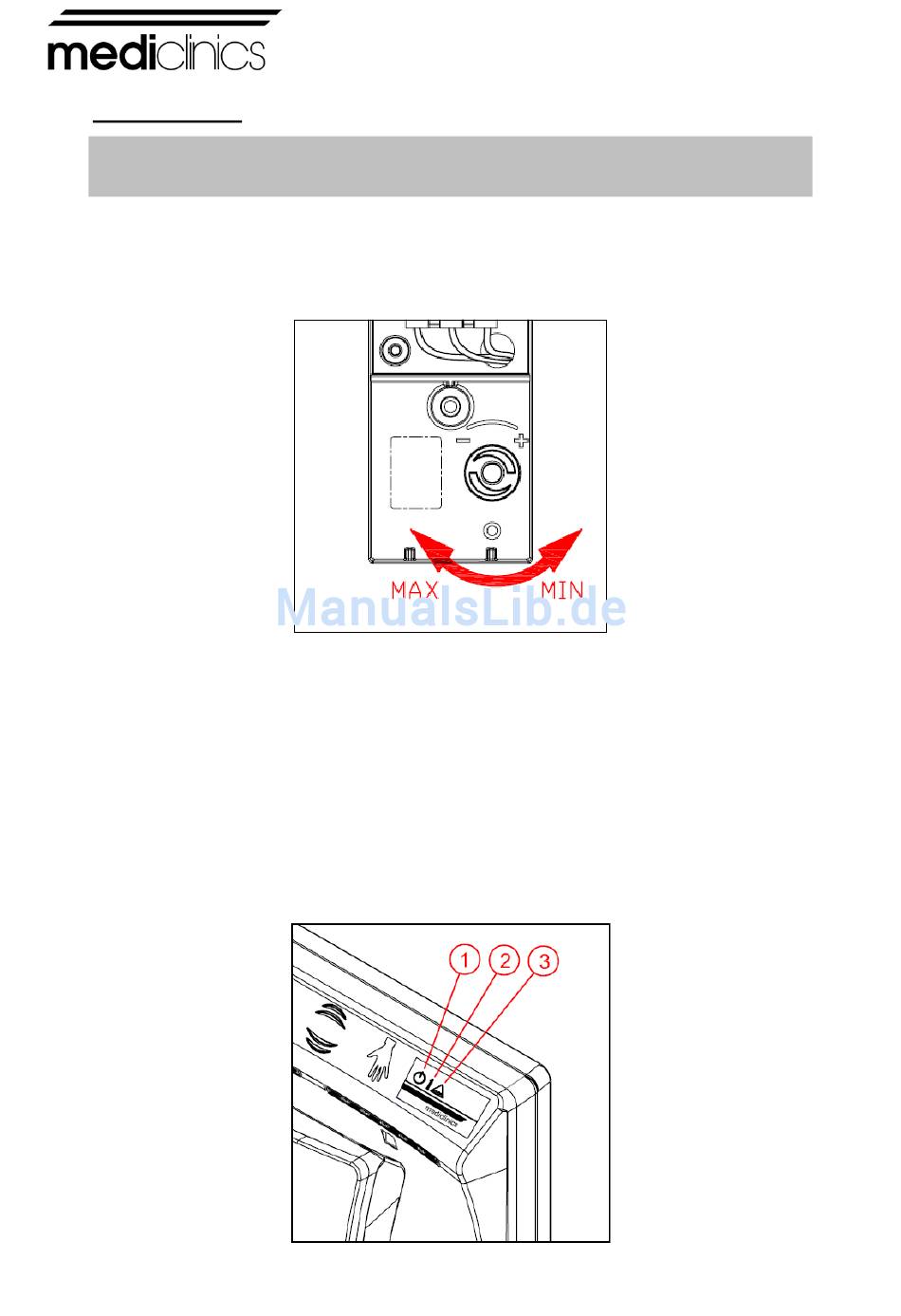

Adjust the speed of the motor.
To adjust the speed of the motor turn the sensor potentiometer wheel as the picture 4 shows.
Pilot light information.
Light leds on the top of the hand dryer (see figure 5) give advice about:
1: Standby (green colour) or operation status (orange colour).
2: Red colour led brigths when motor has a problem of consumption (due to brushes
which may be wearing out or due to a blocked or locked sate of motor).
3.- Blue colour led brigths when cabinet of water is full.
DRYER.
Figure nº 4
Figure nº 5
-14-
