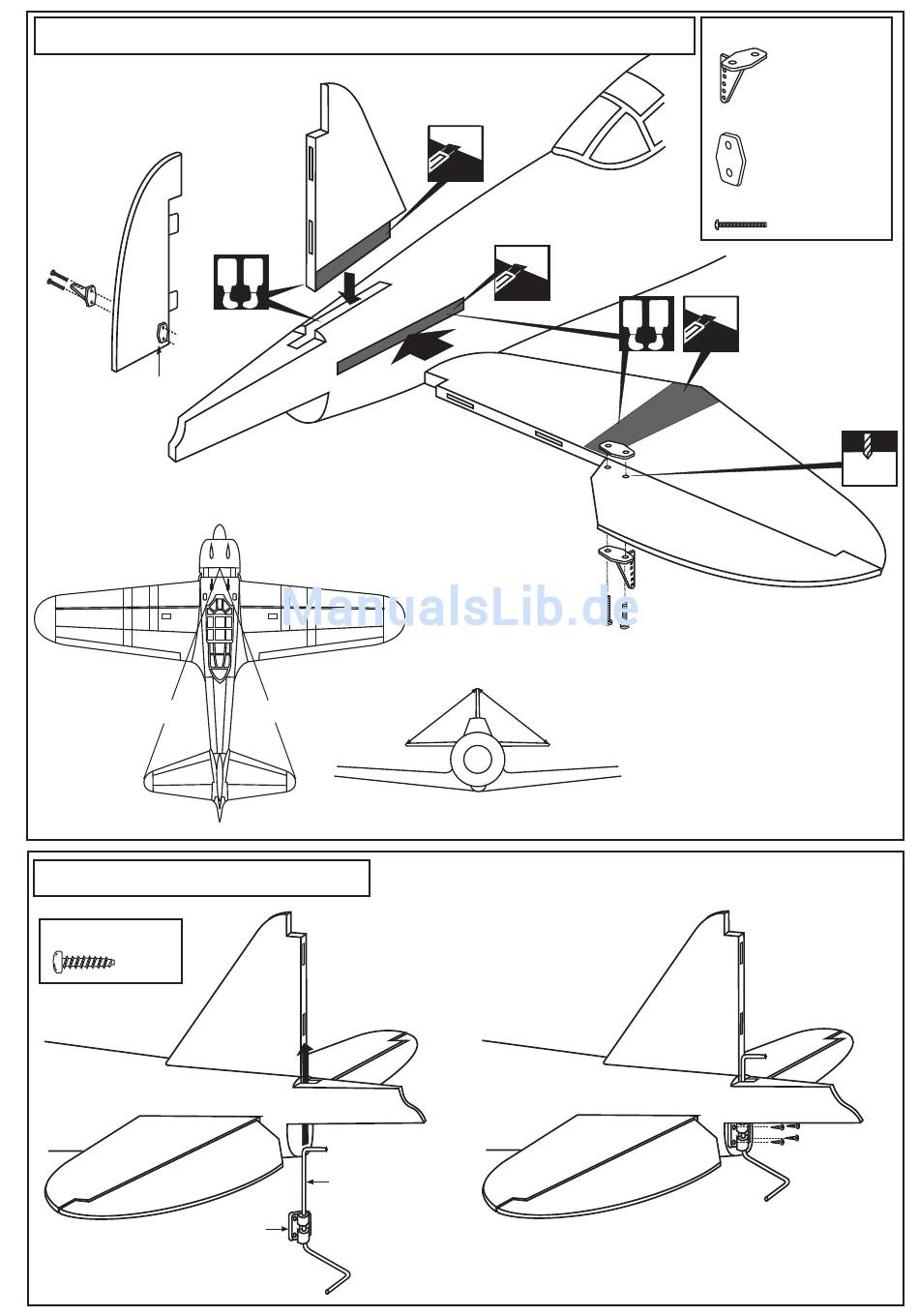

17- Vertical-Horizontal Stabilizers / Hohenleiwerk - Seitenleiwerk
! Securely glue together
If coming off during fly,
you lose control of your
air plane.
1
Rudder control horn
A = A'
B = B'
C = C'
A
18- Tail gear / Heckspornrad
3x10mm screw
....X 4
Tail gear mount
3
A B
A'
Tail gear
STEP 1
Cut away only
the film both side
Cut away only
the film both side
2
Elevator control horn
B
B'
C
C'
Plastic control horn
............................3
Plastic back plate
2x12mm screw
A B
1
2x12mm screw
STEP 1: Attach the control horn on
the rudder and elevator
STEP 2: Installing the stabilizer
(A=A' and C=C')
STEP 3: Installing the vertical fin
(B=B')
STEP 4: Installing other elevator
STEP 2
...........................3
.......................6
Cut away only
the film both
side
1.5mm
3x10mm
screw
