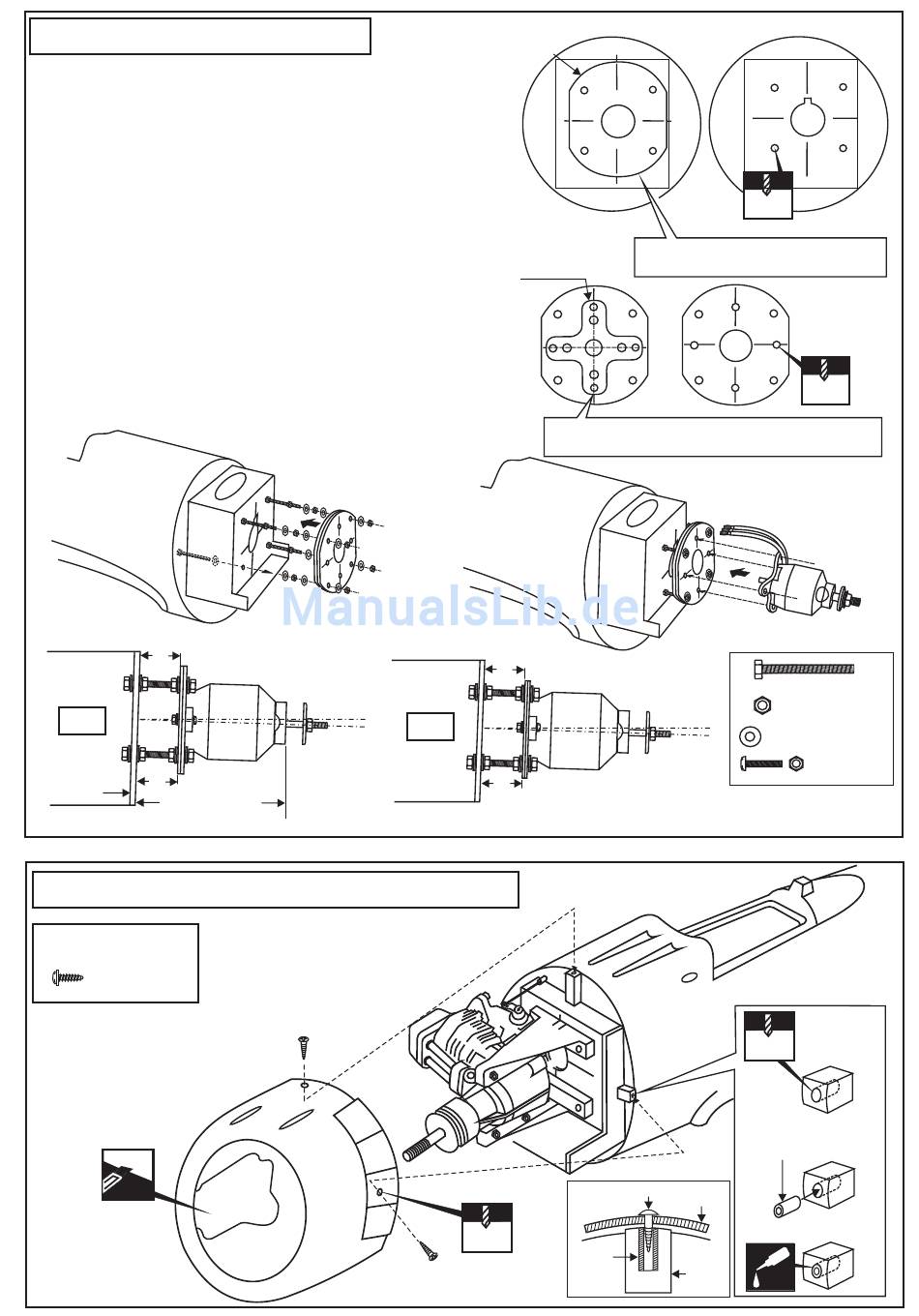

15- Electric motor/Elektromotor
- Using a plywood motor mounting plate as a template, mark the
fire wall where the four holes are to be drilled (1).
- Remove the plywood motor mounting plate and drill
a 13/64"(5mm) hole through the fire-wall at each of the
four marks marked (2).
- Using a aluminum motor mounting plate as a template, mark the
plywood motor mounting plate where the four holes are to be
drilled (3).
- Remove the aluminum motor mounting plate and drill a 1/8"(3mm)
hole through the plywood at each of the four marks marked (4).
-Push the four 5x70mm bolts through the fire-wall as shown (5).
- Reposition the plywood motor mounting plate (2pcs) and secure
it in place with eight 5mm nuts and washers (6).
Note: B=B'(Side-view) and A=A'(Top-view)
-Attach the aluminum motor mounting plate on to the motor and
secure it in place with four screws ( included with motor set) (7).
-Attach the motor on to the plywood motor mounting plate and
secure it in place with four 3x15mm (1/8x19/32") screws(8).
5
B
SIDE-VIEW
B=B'
Firewall
B'
Motorspant
106~108mm
(4-13/64")
16- Cowling installation / Motorhaube
2.5x10mm screw
............4
6
A=A'
2.5x10mm screw
Plywood motor
mounting plate
(2pcs)
! Align the mark on the plywood motor
Aluminum motor
mount with the mark on the fuselage.
mounting plate
3
! Align the mark on the plywood motor mount
with the center lines on aluminum motor mount.
A
TOP-VIEW
A'
! Engine thrust on balk head
is already adjust at factory
2.5x10mm screw
2mm
Nylon
tube
1
13/64"
5mm
1/8"
4
3mm
7 - 8
5x70mm.......4
5mm nut.......12
5mm washer...16
3mm screw/nut...4
5mm
STEP 1
Fuel tube or
STEP 2
nylon tube
(not included)
Cowl
STEP 3
Mount
CA
2
