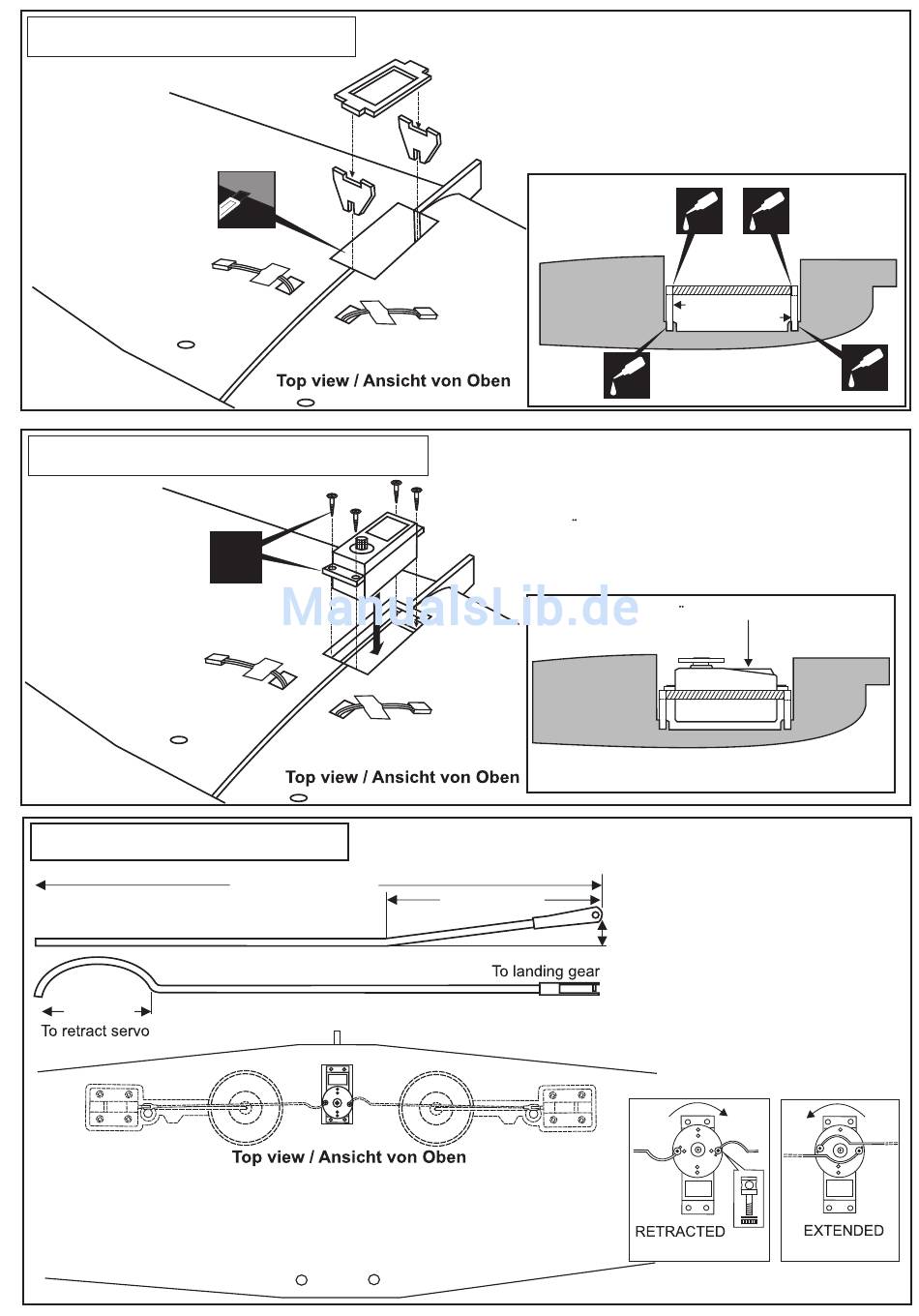

4- Servo mount / Servohalterung
Schneiden Sie etwas
Folie weg
Cut away only
the covering
5- Retract servo / Einziehfahrwerk servo
6- Linkages / Ruderanlenkung
RETRACT PUSHROD (SIDE VIEW)
Fahrwerkanlenkgestänge
1"(25mm)
With the retract and retract servo in the retracted position, mark the position where
each of the pushrod will attach to the servo arm, a small piece of masking tape
works well for this. Cut off the excess length each rod.
Link the servo and retract gear arm with push rod. Be sure to adjust the stroke so
that the landing gear locks in both up and down position.
FWU2
X
8-5/16"(~210mm)
(TOP VIEW)
A
Retract servo mount (plywood A,B,C)
Einziehfahrwerk servohalterung
FWU1
CENTER
WING
SECTION
Retract servo
Einbau des Servos fur
das Einziehfahrwerk
Einbau des Servos fur
das Einziehfahrwerk
CENTER
WING
SECTION
Instruction how to build in the retracting landing gear
(This Gearis OPTIONAL )
2" (~50mm)
CA
CA
A
FWU2
FWU1
BOTTOM
CA
Install the retract servo onto the retract
servo mount and secure it in place with
four screw (included with radio set).
/ Retract servo
BOTTOM
Einbauhilfe bei Anbringen eines
Einziehfahrwerks (Optional
bestellbar; nicht im Baukasten
enthalten!)
19/64"
(7.5mm)
EINGEFAHREN
CA
AUSGEFAHREN
