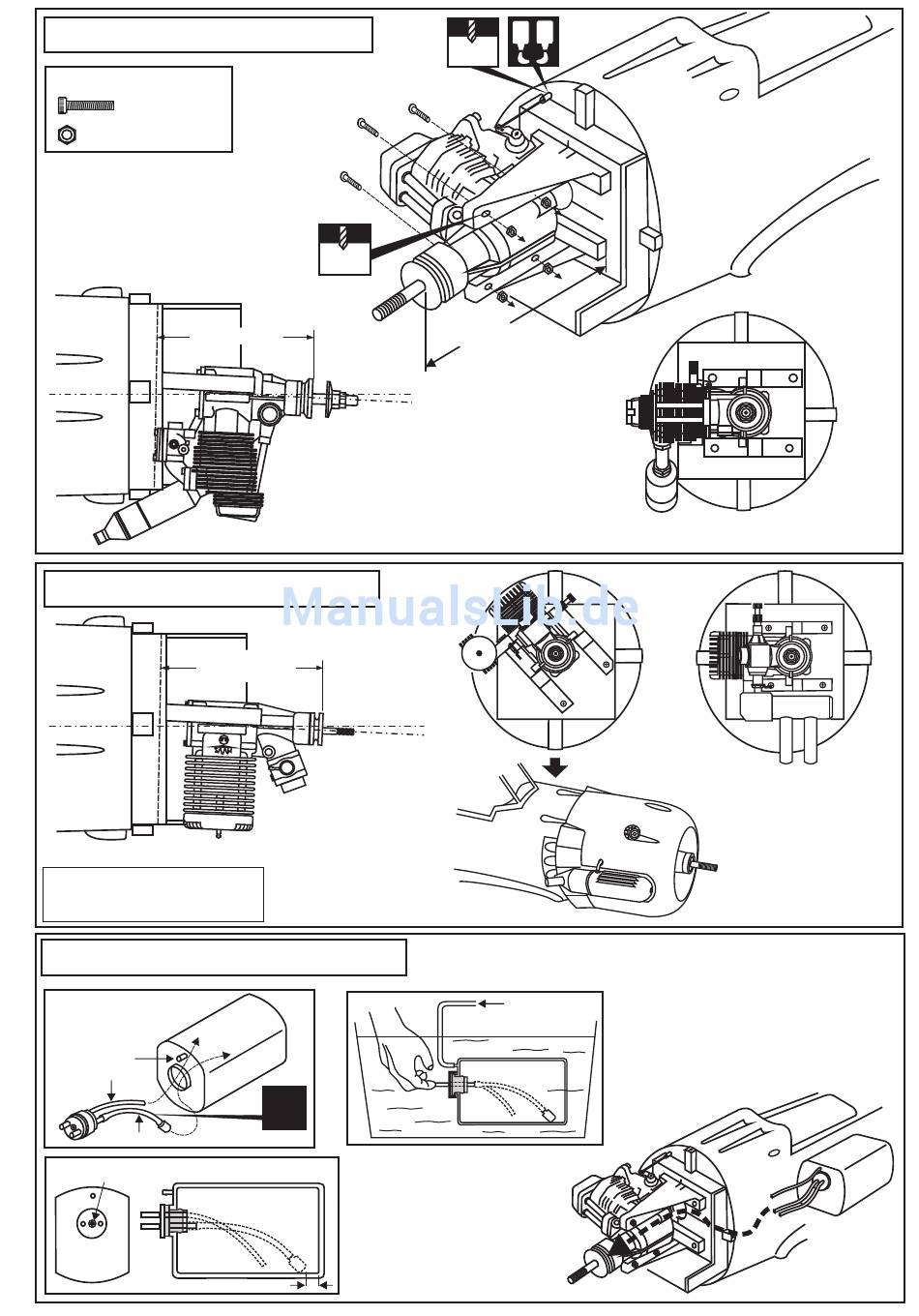

12- Four-stroke engine / 4T Motor
3x25mm screw
.............4
Nut...................4
106~108mm
TOP-VIEW
13 Two-stroke engine / 2T Motor
-
4-13/64"
106~108mm
TOP-VIEW
! Engine thrust on balk head
is already adjust at factory
14- Fuel tank installation / Tankeinbau
1
To muffler
Filler tube
To engine
2
3x20mm screw
3x25mm screw
3mm
! Engine thrust on balk head
is already adjust at factory
Sturz und Zug beachten!
Draufsicht
Draufsicht
3
X
After confirming the direction .
Insert this assembly, clunk end
first, into the fuel tank and tighten
and screw the fuel tank cap on
firmly.
4mm
A B
3.2mm
106~108mm
Checking for leaks - block the vents and blow
Blow
into the feed - if in doubt submersing the tank
in a blow of water will show up any problems.
Water
FRONT-VIEW
Vorderansicht
FRONT-VIEW
Vorderansicht
With hang silencer (Pitts-style)
! Secure install the fuel tank, ensuring
it will not rattle during flights.
