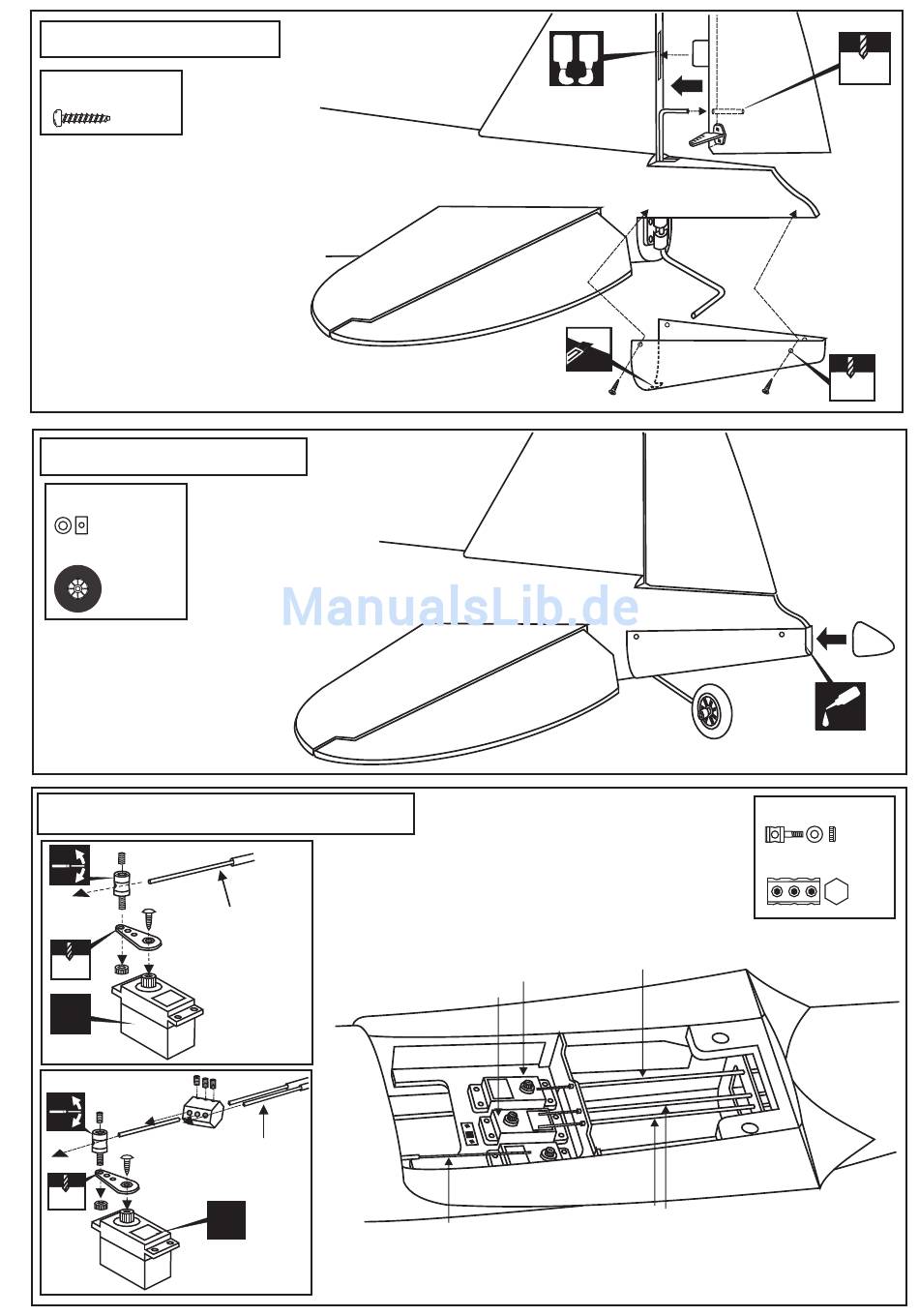

19 Tail gear cover
2x10mm screw
....X4
Place the rudder on the trailing edge
of vertical stabilizer as show (make
sure the rudder move freely without
binding) . Mark the mounting hole
position with a pencil. Remove the
rudder and drill 2mm hole as show.
Replace the rudder on the trailing
edge of vertical stabilizer and se-
cure it in place using 5 minute epoxy.
Place the ABS tail gear cover on
the bottom of fuselage as show
and secure it in place using four
2x10mm screw
20- Tail wheel / Spornrad
2.2mm collar
...........1
25mm wheel
...........1
Slide the tail wheel onto the tail gear
axle and secure it with the supplied
2mm collar.
Attach the ABS tail cover in
place and secure it with litter
CA glue or screws (screws
not included)
21 Servo installation / Servoeinbau
Rudder pushrod
(Or throttle pushrod)
2 mm
X
Throttle / Rudder
servo
Elevator pushrod x2
2 mm
X
Elevator servo
NOTE: Place of servos may be change depend of engine
(Four-stoke or two-stroke engine)
Elevator servo
Rudder servo
Throttle push rod
BOTTOM VIEW
A B
(5 min.)
2x10mm screw
Rudder push rod
Elevator push rod
Unteransicht
2mm
2mm
CA
Connector
........ 3
Connector
...... 1
