Smart Module MINI – Quick Guide

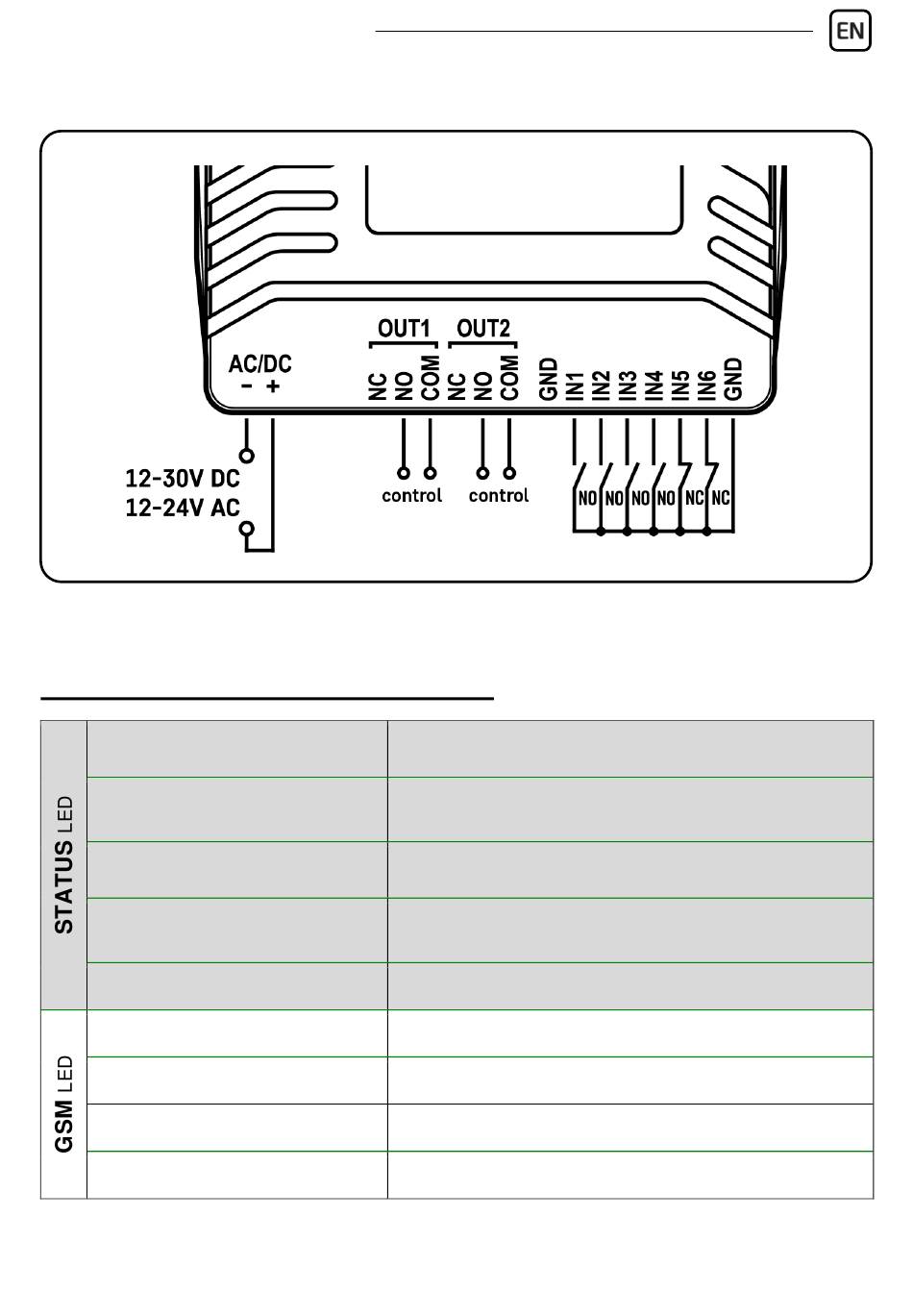

Smart Module MINI – Wiring diagram
-> Chapter 2 of the Installation and Application Manual.
STATUS AND GSM LED SIGNALS:
Slowly flashing green
Slowly flashing green and
red
Fast flashing green and red Event reporting is in progress
Flashing red
Permanent red
Permanent ON
200ms ON, 200ms OFF
800ms ON, 800ms OFF
Permanent OFF
Connected to network, device disarmed
Connected to network, device armed
The mobile service is unavailable,
or system startup/restart is in progress
SIM card error
Searching for network
Data transmission
Registered on the network
Modem powered off
