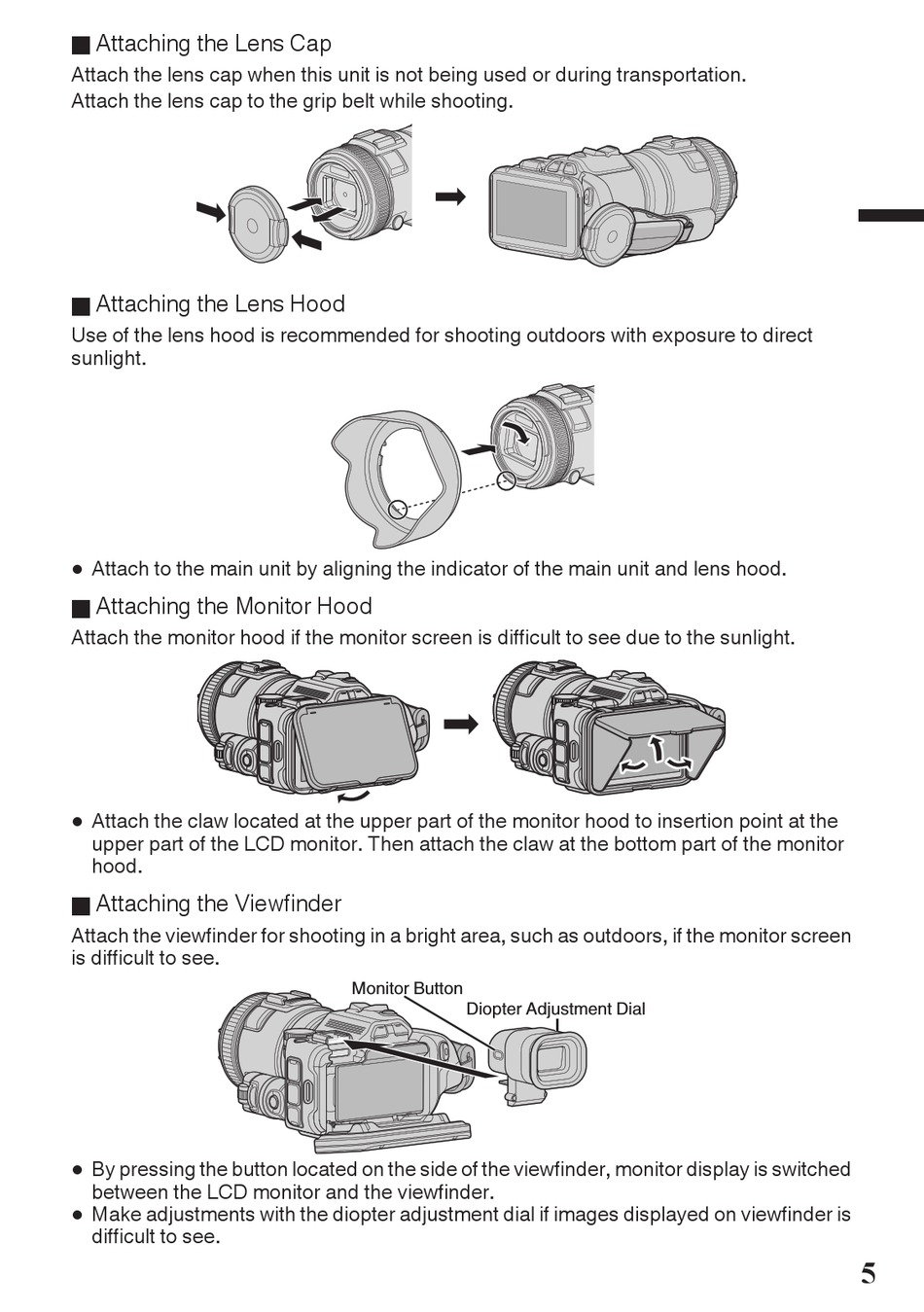

Attaching the Lens Cap

o
Attach the lens cap when this unit is not being used or during transportation.
Attach the lens cap to the grip belt while shooting.

Attaching the Lens Hood

o
Use of the lens hood is recommended for shooting outdoors with exposure to direct
sunlight.
Attach to the main unit by aligning the indicator of the main unit and lens hood.
0
Attaching the Monitor Hood
o
Attach the monitor hood if the monitor screen is difficult to see due to the sunlight.
Attach the claw located at the upper part of the monitor hood to insertion point at the
0
upper part of the LCD monitor. Then attach the claw at the bottom part of the monitor
hood.

Attaching the Viewfinder

o
Attach the viewfinder for shooting in a bright area, such as outdoors, if the monitor screen
is difficult to see.
By pressing the button located on the side of the viewfinder, monitor display is switched
0
between the LCD monitor and the viewfinder.
Make adjustments with the diopter adjustment dial if images displayed on viewfinder is
0
difficult to see.
Monitor Button
Diopter Adjustment Dial
5
