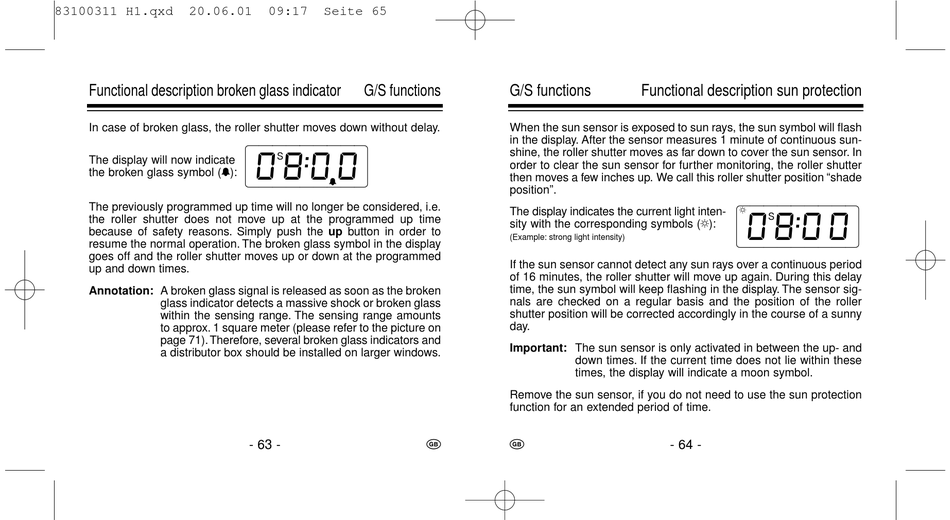

Functional description broken glass indicator

In case of broken glass, the roller shutter moves down without delay.
The display will now indicate
the broken glass symbol (g):
The previously programmed up time will no longer be considered, i.e.
the roller shutter does not move up at the programmed up time
because of safety reasons. Simply push the up button in order to
resume the normal operation. The broken glass symbol in the display
goes off and the roller shutter moves up or down at the programmed
up and down times.
Annotation: A broken glass signal is released as soon as the broken
glass indicator detects a massive shock or broken glass
within the sensing range. The sensing range amounts
to approx. 1 square meter (please refer to the picture on
page 71). Therefore, several broken glass indicators and
a distributor box should be installed on larger windows.
09:17 Seite 65
G/S functions
(0S8:0g0)
- 63 -
G/S functions
When the sun sensor is exposed to sun rays, the sun symbol will flash
in the display. After the sensor measures 1 minute of continuous sun-
shine, the roller shutter moves as far down to cover the sun sensor. In
order to clear the sun sensor for further monitoring, the roller shutter
then moves a few inches up. We call this roller shutter position "shade
position".
The display indicates the current light inten-
sity with the corresponding symbols (S):
(Example: strong light intensity)
If the sun sensor cannot detect any sun rays over a continuous period
of 16 minutes, the roller shutter will move up again. During this delay
time, the sun symbol will keep flashing in the display. The sensor sig-
nals are checked on a regular basis and the position of the roller
shutter position will be corrected accordingly in the course of a sunny
day.
Important: The sun sensor is only activated in between the up- and
down times. If the current time does not lie within these
times, the display will indicate a moon symbol.
Remove the sun sensor, if you do not need to use the sun protection
function for an extended period of time.
