Broken glass indicator
The additional function "broken glass indicator" requires an extra
broken glass indicator for each Vestamatic Rolltec Plus G/S 500 (for
larger or separated window panes). The installation of the sun sensor
is described below.
1. Push the selector switch all the way to the right until it clicks to set
the manual mode to (H).
2. Mix binder and hardener of the two-component adhesive thor-
oughly in a 1 : 1 ratio.
09:17 Seite 73
Installation
- 71 -
G
Installation
3. Apply the adhesive to the side of the broken glass indicator that is
marked with a black bar.
Important: Make sure to keep the adhesive areas clean and oil-
free.

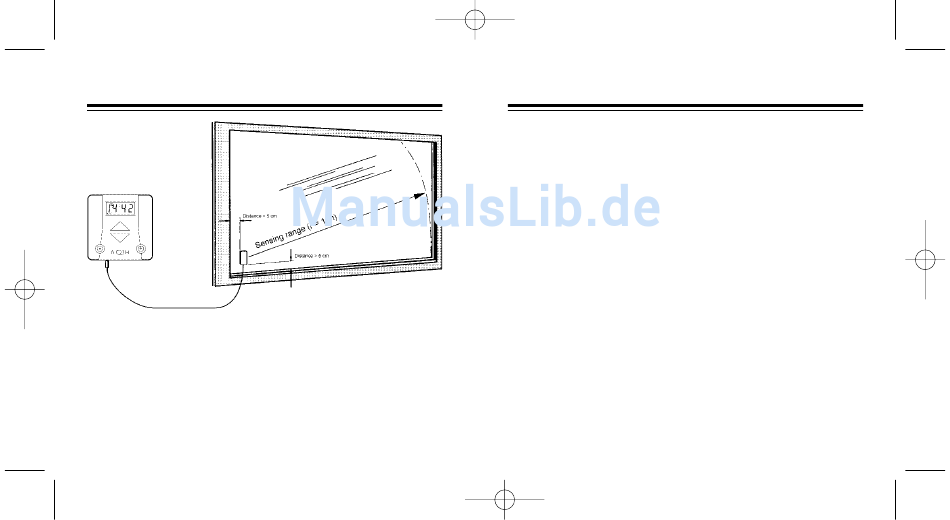

4. Place broken glass indicator carefully onto to the window pane and
make sure to clear the window frame by minimum 2 inches. Attach
the broken glass indicator with adhesive tape and ensure that it is
located perpendicular with the cable going off to the bottom
(please refer to the picture on page 71).
5. Plug the sun sensor jack into the left-hand socket of the
Vestamatic Rolltec Plus G/S 500.
6. Push the selector switch all the way to the left until it clicks to set
the automatic mode to (A).
7. Validity check:
Take a coin and tap the broken glass indicator with it in order to
simulate breaking glass. The roller shutter will now move down and
the display will indicate the broken glass symbol. Push the up but-
ton to stop the roller shutter and delete the broken glass signal.
Remove the adhesive tape after the adhesive has hardened. Please
check the processing and hardening times for the use of the adhesive
with the instructions on the adhesive packaging.
- 72 -
G
Broken glass indicator
