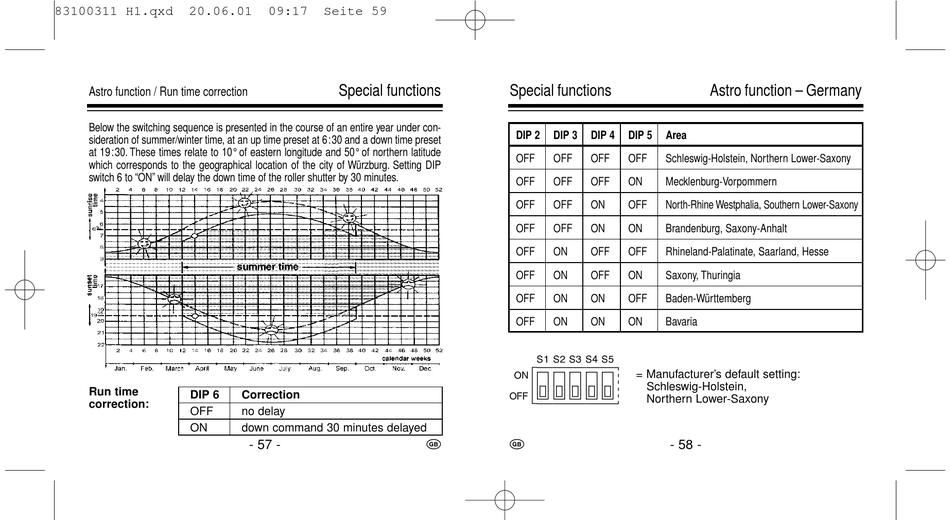

Astro function / Run time correction
Below the switching sequence is presented in the course of an entire year under con-
sideration of summer/winter time, at an up time preset at 6:30 and a down time preset
at 19:30. These times relate to 10° of eastern longitude and 50° of northern latitude
which corresponds to the geographical location of the city of Würzburg. Setting DIP
switch 6 to "ON" will delay the down time of the roller shutter by 30 minutes.
Run time
DIP 6
correction:
OFF
ON
09:17 Seite 59
Special functions
Correction
no delay
down command 30 minutes delayed
- 57 -
Special functions
DIP 2 DIP 3 DIP 4
OFF OFF OFF
OFF OFF OFF
OFF OFF ON
OFF OFF ON
OFF ON OFF
OFF ON OFF
OFF ON ON
OFF ON ON
Y12345C
G G
Astro function – Germany
DIP 5 Area
OFF Schleswig-Holstein, Northern Lower-Saxony
ON Mecklenburg-Vorpommern
OFF North-Rhine Westphalia, Southern Lower-Saxony
ON Brandenburg, Saxony-Anhalt
OFF Rhineland-Palatinate, Saarland, Hesse
ON Saxony, Thuringia
OFF Baden-Württemberg
ON Bavaria
= Manufacturer's default setting:
Schleswig-Holstein,
Northern Lower-Saxony
- 58 -
