VEVOR M2 Benutzerhandbuch Seite 25

No. Step Name
Foot
1
installation
Supporting
2
bar for middle
Supporting
3
bar for bottom
Connecting
4 stand and
table
Drawer
5
installation
Pedal
6
installation

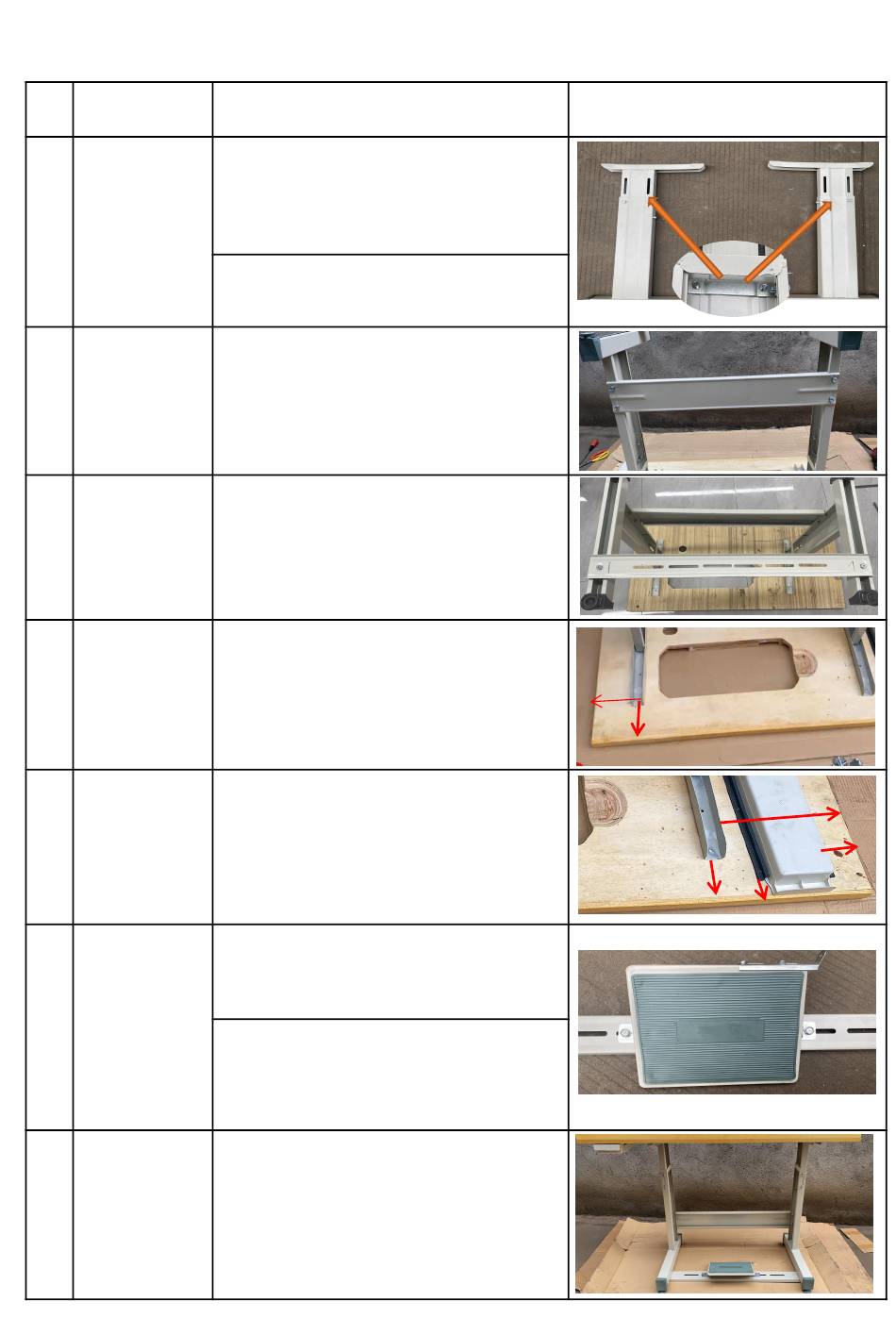

Table and stand assembly instruction
Parts and Setp
Left leg x1，Left leg-up part x1
Right leg x1, Right leg-up part x1
Screw 8*16x8, Nut 8x8
Leg connector x2
Connetcting leg and up part using
screw 8 and nut 8 with leg connector
Supporting bar for middle position x1
Screw 8*16x4, Nut 8x4
Supporting bar for botton position x1
Screw 8*16x2, Nut 8x2
Wooden table x1
Tapping screw5*20x4
Distance from long side:10cm,
Distance from short side:12cm
Drawer x1, Drawer track x2
Tapping screw3*14x6
Pedal x1 Pedal link x1 Pedal L-shape
link x2,Screw 8*16x2, Nut 8x2 Screw
6*12x2 Nut 6x2
installation Pedal link to Pedal uses
screw 6*12 and nut 6 installation
pedal to supporting bar uses screw
8*16 and nut 8
Diagram
12cm
9cm
19cm
9cm
9cm
5cm
