Camera Introduction; Connection Diagram - Reolink Rp-Pcb8M Kurzanleitung

1 3 5 7
ON
OFF
eSATA
AUDIO
DC IN USB HDMI VGA LAN 2 4 6 8
OUT

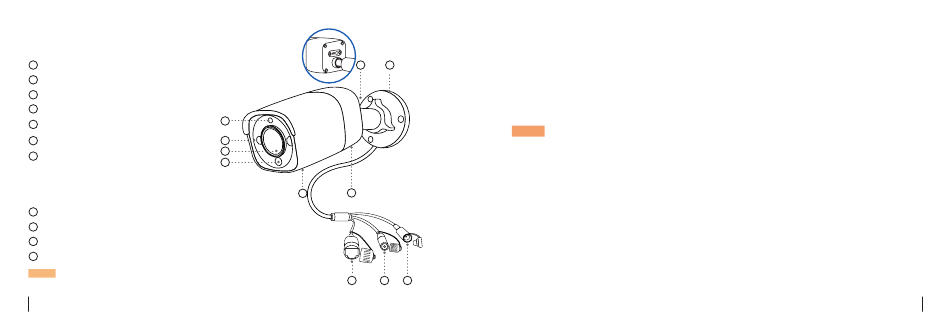

Camera Introduction

Mount
1
Daylight Sensor
2
Infrared Lights
3
Lens
4
Spotlight
5
LAN Port
6
Reset Button
7
* Press and hold for
10 seconds to restore
camera to factory
settings.
Power Port (Optional)
8
microSD Card Slot
9
Built-in Mic
10
Speaker
11
NOTE: Quantity of devices and accessories vary with
different models that you purchase.
3 English
ON
OFF
AUDIO
DC IN USB HDMI VGA LAN
OUT
9 1
2
3
4
5
11
10
6 7
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16

Connection Diagram

Before using the camera, please connect your camera as instructed below to
finish initial setup.
1. Connect the camera to a Reolink NVR (not included) with an Ethernet cable.
2. Connect the NVR to your router, and then power on the NVR.
NOTE: The camera should be powered with a 12V DC adapter or a PoE
powering device such as PoE injector, PoE switch or Reolink NVR (not included
in the package).
8
4
English
