4.5.

Connection of the power supply to the charger

The charger must be powered by appropriately sized cables. Before wiring, ensure that
the cables are properly sized, and that the maximum permissible bending radius is not
exceeded.
The electrical data of the charger, which should be consulted for the correct sizing of the
power supply system, is shown on the identification label of the unit. (see 3.3).
Follow these recommendations:

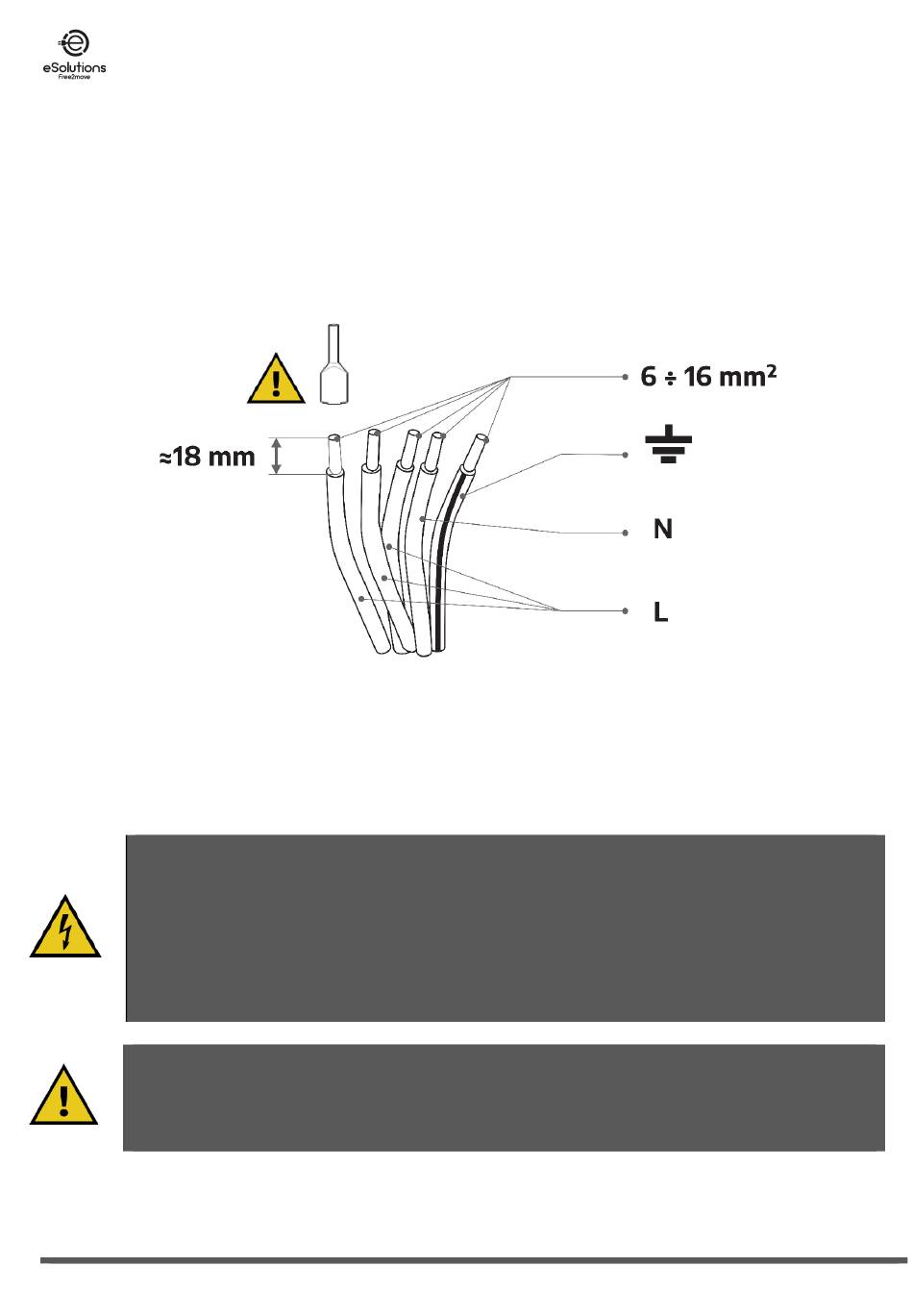

Risk of severe damage: always add 18 mm ferrules on power supply cables.
•
Suggested minimum conductor size: 6 mm
•
the input connector can also accept 4 mm
Maximum conductor size: 16 mm
•
Minimum stripping length for power supply cables: 18 mm
•
DANGER
Always use electrical ferrules to ensure optimum connection.
Carefully check the connection before switching on the charger.
Failure to do so may result in serious risk of damage to the
product, property, or death to persons or animals.
DANGER
The power to the charger must remain off during this step.
2
;
2
2
30 of 84
