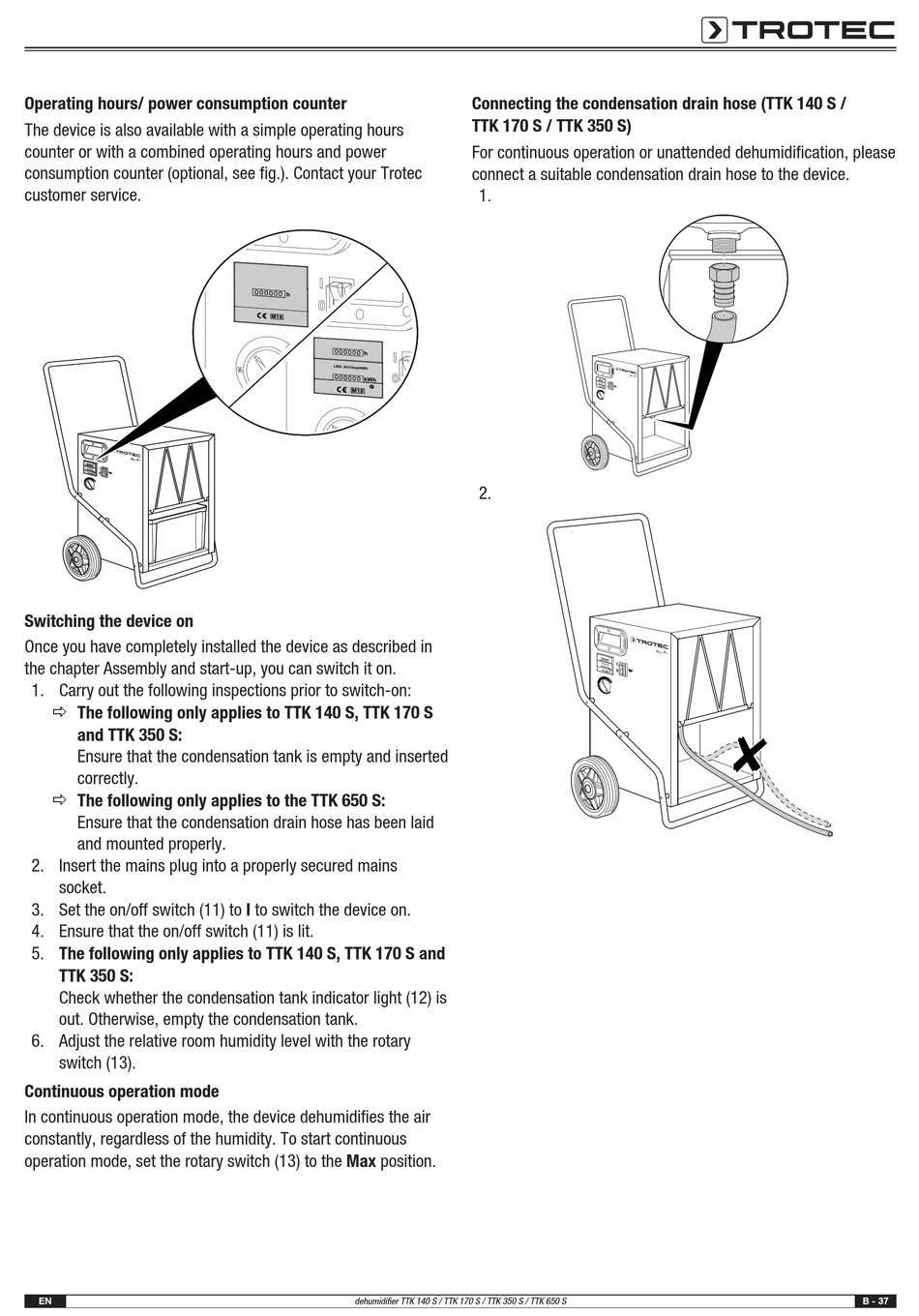

Trotec TTK 140 S Originalbetriebsanleitung Seite 37

Operating hours/ power consumption counter
The device is also available with a simple operating hours
counter or with a combined operating hours and power
consumption counter (optional, see fig.). Contact your Trotec
customer service.
Switching the device on
Once you have completely installed the device as described in
the chapter Assembly and start-up, you can switch it on.
1. Carry out the following inspections prior to switch-on:
ð The following only applies to TTK 140 S, TTK 170 S
and TTK 350 S:
Ensure that the condensation tank is empty and inserted
correctly.
ð The following only applies to the TTK 650 S:
Ensure that the condensation drain hose has been laid
and mounted properly.
2. Insert the mains plug into a properly secured mains
socket.
3. Set the on/off switch (11) to I to switch the device on.
4. Ensure that the on/off switch (11) is lit.
5. The following only applies to TTK 140 S, TTK 170 S and
TTK 350 S:
Check whether the condensation tank indicator light (12) is
out. Otherwise, empty the condensation tank.
6. Adjust the relative room humidity level with the rotary
switch (13).
Continuous operation mode
In continuous operation mode, the device dehumidifies the air
constantly, regardless of the humidity. To start continuous
operation mode, set the rotary switch (13) to the Max position.
EN
Connecting the condensation drain hose (TTK 140 S /
TTK 170 S / TTK 350 S)
For continuous operation or unattended dehumidification, please
connect a suitable condensation drain hose to the device.
1.
2.
dehumidifier TTK 140 S / TTK 170 S / TTK 350 S / TTK 650 S B - 37
